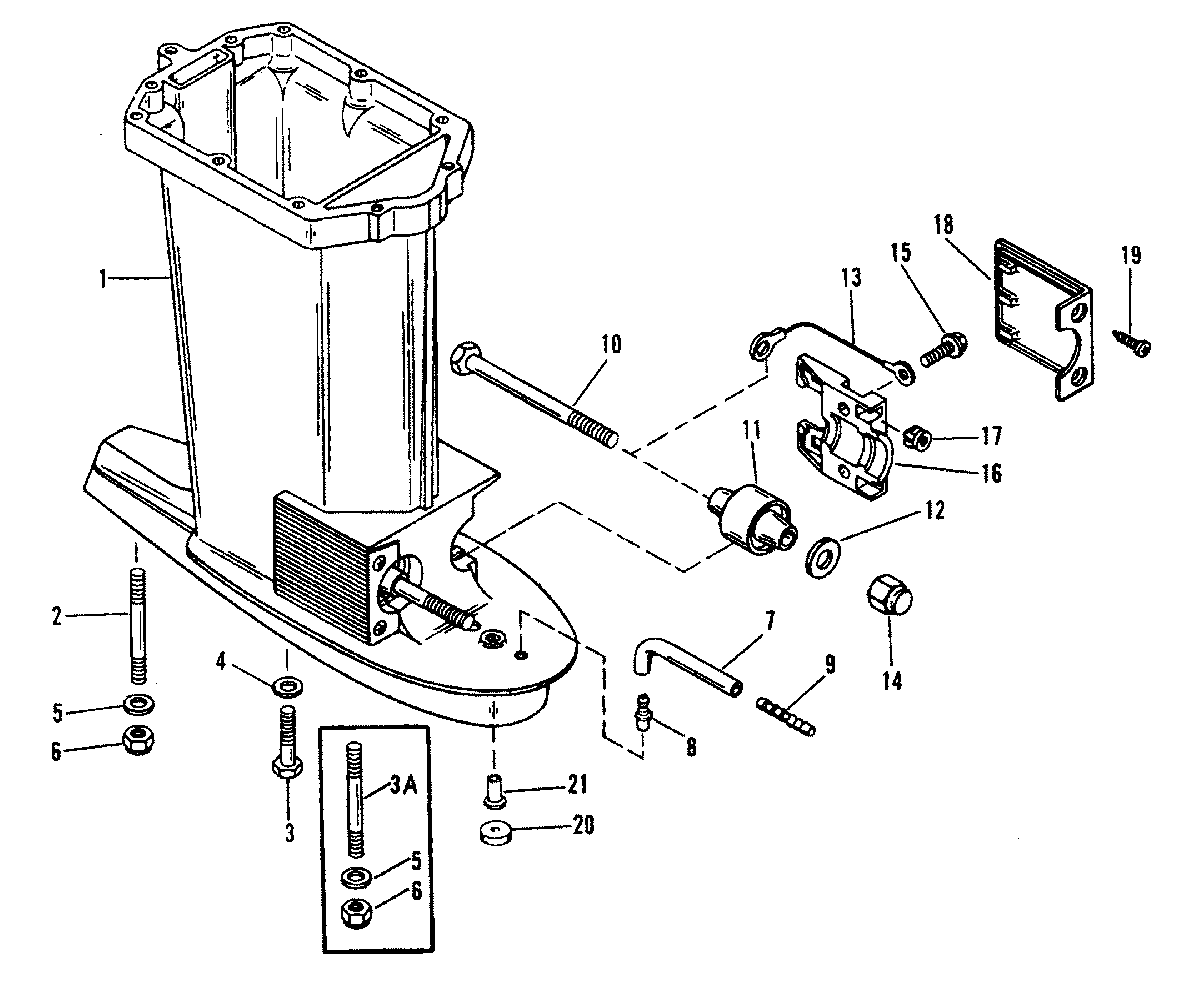

DRIVE SHAFT HOUSING для Mariner - 50 (3 CYL.) 9683055 THRU 9885344
-
№АртикулНазвание
-
13516-816528A1 DRIVESHAFT HOUSING (SHORT) (BLACK)DRIVESHAFT HOUSING (SHORT) (BLACK)
-
13516-816528T2 DRIVESHAFT HOUSING (SHORT) (GRAY)DRIVESHAFT HOUSING (SHORT) (GRAY)
-
13510-9864T6 DRIVESHAFT HOUSING (LONG) (BLACK)DRIVESHAFT HOUSING (LONG) (BLACK)
-
13510-9864T6 DRIVESHAFT HOUSING (LONG) (GRAY)DRIVESHAFT HOUSING (LONG) (GRAY)
-
13510-9864T6 DRIVESHAFT HOUSING (LONG) (TRACKER)DRIVESHAFT HOUSING (LONG) (TRACKER)
-
13516-816528A3 DRIVESHAFT HOUSING (JET 45) (BLACK)DRIVESHAFT HOUSING (JET 45) (BLACK)
-
13516-816528A4 DRIVESHAFT HOUSING (JET 45) (GRAY)DRIVESHAFT HOUSING (JET 45) (GRAY)
-
216-903507 STUDSTUD
-
216-903501 STUD (60 PONTOON - LONG)STUD (60 PONTOON - LONG)
-
216-8M0034445 STUD (60 PONTOON - LL)STUD (60 PONTOON - LL)
-
3A16-8M0034446 STUD (60 PONTOON - LL)STUD (60 PONTOON - LL)
-
310-4000380 SCREWSCREW
-
412-45176 WASHERWASHER
-
512-856774 WASHERWASHER
-
611-40140 NUTNUT
-
722-85822A7 SPEEDOMETER PICK-UP ASSEMBLYSPEEDOMETER PICK-UP ASSEMBLY
-
822-13035002 FITTINGFITTING
-
922-85822T CONNECTOR (STRAIGHT)CONNECTOR (STRAIGHT)
-
1010-898835001 BOLTBOLT
-
1142930A1 LOWER MOUNTLOWER MOUNT
-
1212-30119 WASHERWASHER
-
1388238A10 GROUND WIREGROUND WIRE
-
1411-43528 NUTNUT
-
1510-40011149 SCREWSCREW
-
168M0036730 CLAMPCLAMP
-
1711-35521 NUTNUT
-
18100-8M4500752 COVER (BLACK)COVER (BLACK)
-
18100-8M4500752 COVER (GRAY)COVER (GRAY)
-
18100-8M4500752 COVER (TRACKER)COVER (TRACKER)
-
1910-88417 SCREWSCREW
-
2023-813745 SPACERSPACER
-
2023-8137451 SPACER (60 PONTOON - LL)SPACER (60 PONTOON - LL)
-
2143585 COUPLINGCOUPLING
