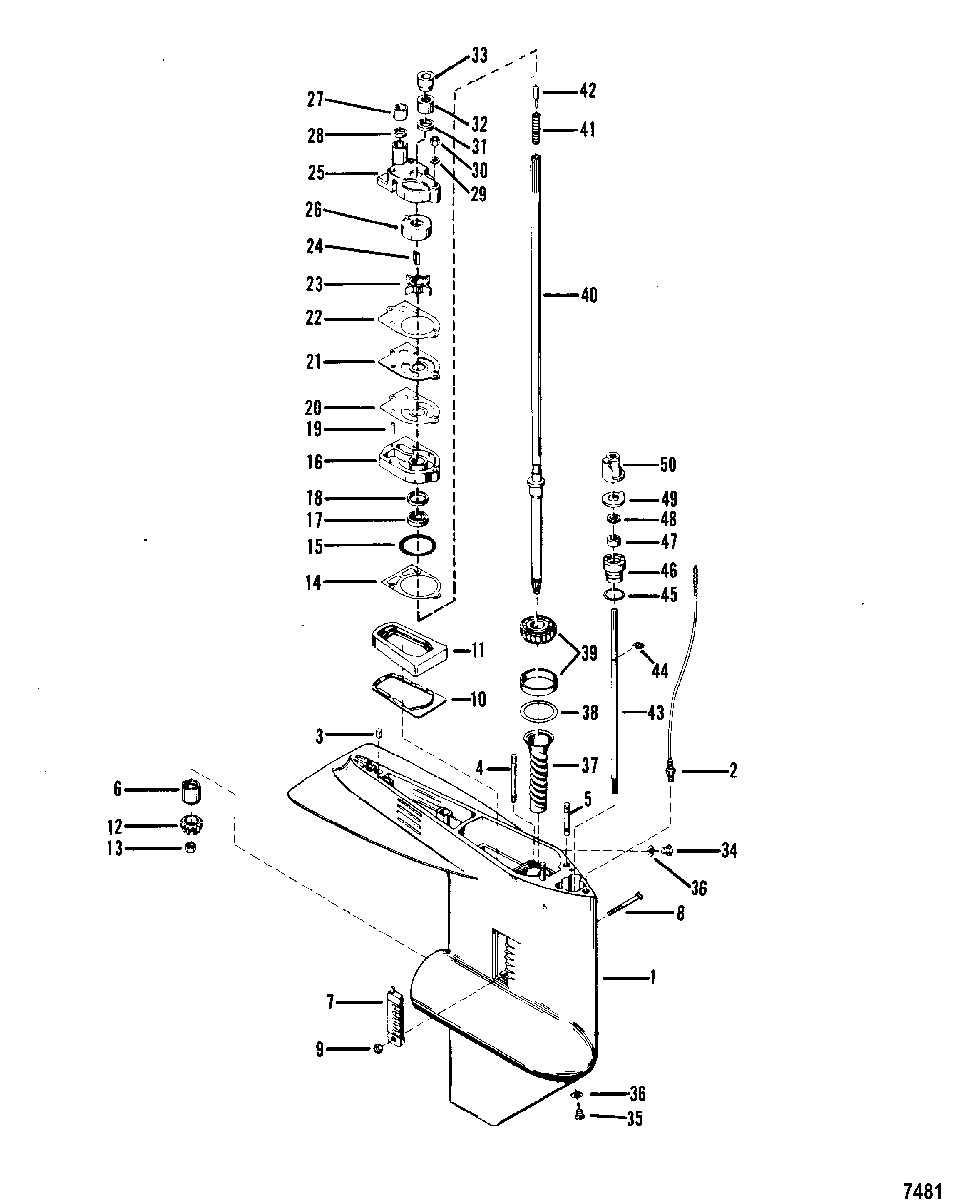

GEAR HOUSING(DRIVESHAFT) для Mariner - 50 (4 CYL.) 7143688 & Up
-
№АртикулНазвание
-
-1643-9539A4 GEAR HOUSING ASSEMBLY (SHORT SHAFT) MERCURYGEAR HOUSING ASSEMBLY (SHORT SHAFT) MERCURY
-
-1643-9539A5 GEAR HOUSING ASSEMBLY (LONG SHAFT) MERCURYGEAR HOUSING ASSEMBLY (LONG SHAFT) MERCURY
-
-1643-9539A10 GEAR HOUSING ASSEMBLY (X-LONG SHAFT) MERCURYGEAR HOUSING ASSEMBLY (X-LONG SHAFT) MERCURY
-
-1643-9539A6 GEAR HOUSING ASSEMBLY (SHORT SHAFT) MARINERGEAR HOUSING ASSEMBLY (SHORT SHAFT) MARINER
-
-1643-9539A7 GEAR HOUSING ASSEMBLY (LONG SHAFT) MARINERGEAR HOUSING ASSEMBLY (LONG SHAFT) MARINER
-
-1643-9539A10 GEAR HOUSING ASSEMBLY (X-LONG SHAFT) MARINERGEAR HOUSING ASSEMBLY (X-LONG SHAFT) MARINER
-
11643-9539T1 GEAR HOUSING ASSEMBLY, MercuryGEAR HOUSING ASSEMBLY, Mercury
-
11643-9539T1 GEAR HOUSING ASSEMBLY, MarinerGEAR HOUSING ASSEMBLY, Mariner
-
222-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETERCONNECTOR ASSEMBLY, SPEEDOMETER
-
317-8M0084726 PIN, Dowel (.187 x .530), GEAR HOUSINGPIN, Dowel (.187 x .530), GEAR HOUSING
-
416-33778 STUD, WATER PUMP/BASE (2-5/8")STUD, WATER PUMP/BASE (2-5/8")
-
516-8M0034453 STUD, (.437-14/.437-20 x 2.190), GEAR HOUSINGSTUD, (.437-14/.437-20 x 2.190), GEAR HOUSING
-
516-96126 STUD, (.4375 x 7.22), GEAR HOUSING (X-LONG SHAFT)STUD, (.4375 x 7.22), GEAR HOUSING (X-LONG SHAFT)
-
631-62091T BEARING, Roller, DRIVESHAFTBEARING, Roller, DRIVESHAFT
-
772849A1 SCREEN ASSEMBLY, WATER INTAKESCREEN ASSEMBLY, WATER INTAKE
-
810-36070 SCREW, (#10-32 x 1.250)SCREW, (#10-32 x 1.250)
-
911-859124 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1092815 PLATE, SUPPORT - EXHAUST TUBEPLATE, SUPPORT - EXHAUST TUBE
-
1137721001 SEAL, EXHAUST TUBESEAL, EXHAUST TUBE
-
1243-98097T GEAR, Pinion, DRIVESHAFTGEAR, Pinion, DRIVESHAFT
-
1311-55910 NUT, (.437-20), PINION GEAR TO DRIVESHAFTNUT, (.437-20), PINION GEAR TO DRIVESHAFT
-
1427-19552 GASKET, WATER PUMP BASEGASKET, WATER PUMP BASE
-
1525-26722 O-RINGO-RING
-
1646-77177A1 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
1726-79831 SEAL, OilSEAL, Oil
-
1826-90562 SEAL, (1.254 x .312)SEAL, (1.254 x .312)
-
1917-8M0084627 PIN, DowelPIN, Dowel
-
2027-19553 GASKET, LOWERGASKET, LOWER
-
2132768 FACE PLATEFACE PLATE
-
2227-19551 GASKET, UPPERGASKET, UPPER
-
2347-89983T IMPELLERIMPELLER
-
2428-8M0032837 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
2546-77822A1 BODY ASSEMBLY, Water PumpBODY ASSEMBLY, Water Pump
-
2648753 INSERTINSERT
-
2726-38452 SEAL, RUBBERSEAL, RUBBER
-
2812-38453 WASHER, NYLONWASHER, NYLON
-
2912-29245 WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP BODY AND BASE STUDSWASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP BODY AND BASE STUDS
-
3011-35888 NUT, (.250-28) Stainless Steel, WATER PUMP BODY AND BASE STUDSNUT, (.250-28) Stainless Steel, WATER PUMP BODY AND BASE STUDS
-
3125-20273 O-RING, RUBBERO-RING, RUBBER
-
3278654A1 SEAT ASSEMBLY, DRIVESHAFTSEAT ASSEMBLY, DRIVESHAFT
-
3386304 SEAL, SPLINED - DRIVESHAFTSEAL, SPLINED - DRIVESHAFT
-
3410-79953Q04 SCREW, (.375-16 x .250), GREASE FILLERSCREW, (.375-16 x .250), GREASE FILLER
-
3522-8M0058389 SCREW, Magnetic, DRAINSCREW, Magnetic, DRAIN
-
3612-191833 WASHER, FILLER/DRAIN SCREWWASHER, FILLER/DRAIN SCREW
-
3788181 SLEEVE, LUBRICATION - DRIVESHAFTSLEEVE, LUBRICATION - DRIVESHAFT
-
3815-92881A1 SHIM SET, BEARING TO GEAR HOUSING (.002-3-5-10-20)SHIM SET, BEARING TO GEAR HOUSING (.002-3-5-10-20)
-
3931-77420A1 BEARING ASSEMBLY, Roller, TAPERED - DRIVESHAFTBEARING ASSEMBLY, Roller, TAPERED - DRIVESHAFT
-
4045-98179 DRIVESHAFT ASSEMLBY (SHORT SHAFT)DRIVESHAFT ASSEMLBY (SHORT SHAFT)
-
4045-98180 DRIVESHAFT ASSEMBLY (LONG SHAFT)DRIVESHAFT ASSEMBLY (LONG SHAFT)
-
4045-97442A2 DRIVESHAFT ASSEMBLY (X-LONG SHAFT)DRIVESHAFT ASSEMBLY (X-LONG SHAFT)
-
4124-20254 SPRING, COMPRESSION - DRIVESHAFTSPRING, COMPRESSION - DRIVESHAFT
-
4217-30545 PIN, DRIVESHAFTPIN, DRIVESHAFT
-
4376063A1 SHAFT ASSEMBLY, SHIFTSHAFT ASSEMBLY, SHIFT
-
4397443A1 SHAFT ASSEMBLY, SHIFT (X-LONG SHAFT)SHAFT ASSEMBLY, SHIFT (X-LONG SHAFT)
-
4453-29641 E RING, SHIFT SHAFTE RING, SHIFT SHAFT
-
4525-25439 O-RING, (.862 x .103), SHIF SHAFT BUSHINGO-RING, (.862 x .103), SHIF SHAFT BUSHING
-
4623-77631A2 BUSHING ASSEMBLY, SHIF SHAFTBUSHING ASSEMBLY, SHIF SHAFT
-
4726-8164641 SEAL, Oil, SHIFT SHAFT BUSHINGSEAL, Oil, SHIFT SHAFT BUSHING
-
4812-77674 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
4978036 BASE, REVERSE LOCKINGBASE, REVERSE LOCKING
-
5043308T1 CAM, REVERSE LOCKINGCAM, REVERSE LOCKING
-
-46-77177A3 WATER PUMP KITWATER PUMP KIT
-
-26-79831A1 SEAL KITSEAL KIT
-
-27-72486A32 GASKET SETGASKET SET
