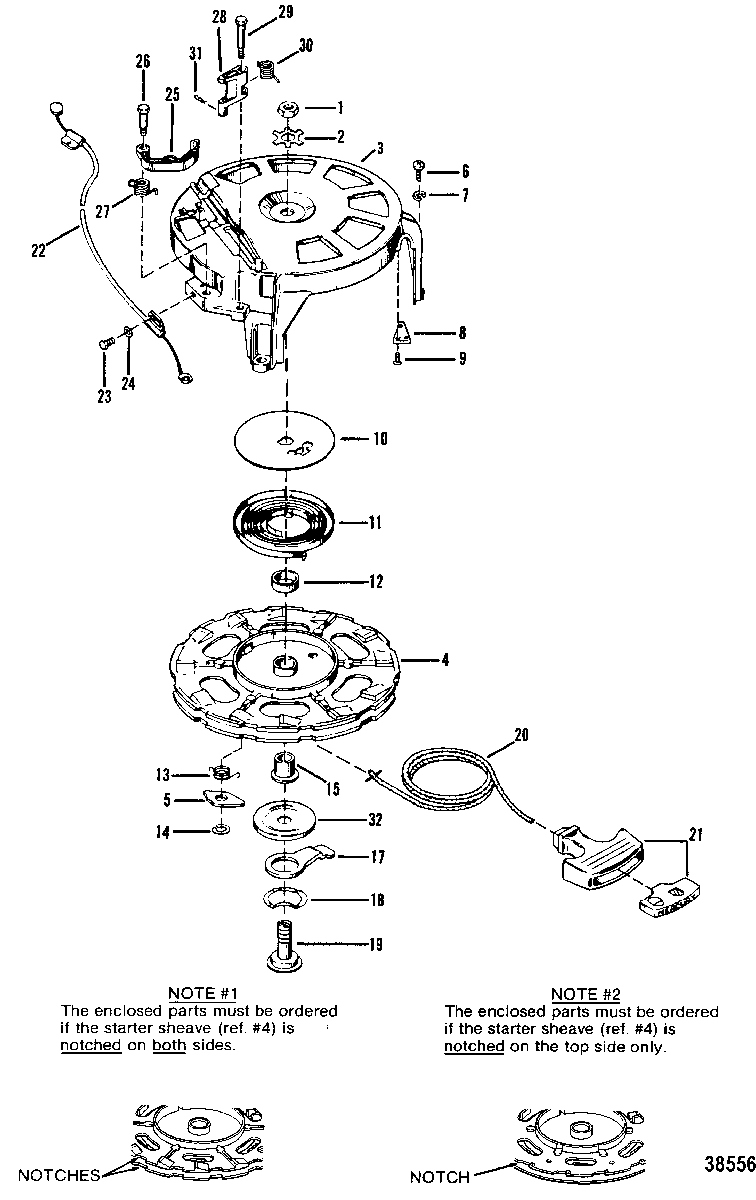

STARTER REWIND для Mariner - 50 (4 CYL.) 8063985 & Up
-
№АртикулНазвание
-
111-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
214-61004 TAB WASHER, SHEAVE SHAFT NUTTAB WASHER, SHEAVE SHAFT NUT
-
389016A3 HOUSING, Starter
THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF. #4) IS NOTCHED ON BOTH SIDES.HOUSING, Starter
THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF. #4) IS NOTCHED ON BOTH SIDES. -
3890162 HOUSING, Starter
THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF.#4) IS NOTCHED ON THE TOP SIDE ONLY.HOUSING, Starter
THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF.#4) IS NOTCHED ON THE TOP SIDE ONLY. -
450-94338A1 SHEAVE ASSEMBLY, Starter
THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF. #4) ISNOTCHED ON BOTH SIDES.SHEAVE ASSEMBLY, Starter
THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF. #4) ISNOTCHED ON BOTH SIDES. -
450-44255A1 SHEAVE ASSEMBLY, Starter
THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF.#4) IS NOTCHED ON THE TOP SIDE ONLY.SHEAVE ASSEMBLY, Starter
THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF.#4) IS NOTCHED ON THE TOP SIDE ONLY. -
591936 PAWL, Starter
THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF. #4) ISNOTCHED ON BOTH SIDES.PAWL, Starter
THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF. #4) ISNOTCHED ON BOTH SIDES. -
544508 PAWL, Starter
THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF.#4) IS NOTCHED ON THE TOP SIDE ONLY.PAWL, Starter
THE ENCLOSED PARTS MUST BE ORDERED IF THE STARTER SHEAVE (REF.#4) IS NOTCHED ON THE TOP SIDE ONLY. -
610-54523 SCREW, (.312-18 x 1.00), STARTER HOUSINGSCREW, (.312-18 x 1.00), STARTER HOUSING
-
713-20202 LOCKWASHER, STARTER HOUSING SCREWLOCKWASHER, STARTER HOUSING SCREW
-
837691 PLATE, CABLE GUIDEPLATE, CABLE GUIDE
-
910-358811 SCREW, (#6-32 x .250), DRIVE - CABLE GUIDE PLATESCREW, (#6-32 x .250), DRIVE - CABLE GUIDE PLATE
-
1061002 PLATE, STARTER REWINDPLATE, STARTER REWIND
-
1124-39502T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
1290-97649 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
1324-87651 SPRING, STARTER PAWLSPRING, STARTER PAWL
-
1453-87706 E RING, STARTER PAWLE RING, STARTER PAWL
-
1523-63061 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
1794962 LEVERLEVER
-
1813-20160 WAVE WASHERWAVE WASHER
-
1987656 SHEAVE SHAFTSHEAVE SHAFT
-
2050-12066Q10 CABLE ASSEMBLY, StarterCABLE ASSEMBLY, Starter
-
2047341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)
-
2185174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
2276568 CABLE, INTERLOCK
ALSO USED ON ELECTRIC TILLER HANDLE MODELSCABLE, INTERLOCK
ALSO USED ON ELECTRIC TILLER HANDLE MODELS -
2310-69022 SCREW, (#10-32 x .500) Stainless Steel, INTERLOCK CBLE ATTACHING
ALSO USED ON ELECTRIC TILLER HANDLE MODELSSCREW, (#10-32 x .500) Stainless Steel, INTERLOCK CBLE ATTACHING
ALSO USED ON ELECTRIC TILLER HANDLE MODELS -
2412-26013 WASHER
ALSO USED ON ELECTRIC TILLER HANDLE MODELSWASHER
ALSO USED ON ELECTRIC TILLER HANDLE MODELS -
25428201 CAM, INTERLOCKCAM, INTERLOCK
-
2610-76138 SCREW, (.312-18 x 1.120), INTERLOCK CAMSCREW, (.312-18 x 1.120), INTERLOCK CAM
-
2724-761401 SPRING, INTERLOCK CAM SCREWSPRING, INTERLOCK CAM SCREW
-
2879371 ACTUATOR, INTERLOCKACTUATOR, INTERLOCK
-
2910-76137 SCREW, INTERLOCK ACTUATOR (1-5/8")SCREW, INTERLOCK ACTUATOR (1-5/8")
-
3024-76139 SPRINGSPRING
-
3118-26811 COTTER PINCOTTER PIN
-
3212-35559 WASHERWASHER
-
-89016A3 STARTER ASSEMBLY, RewindSTARTER ASSEMBLY, Rewind
