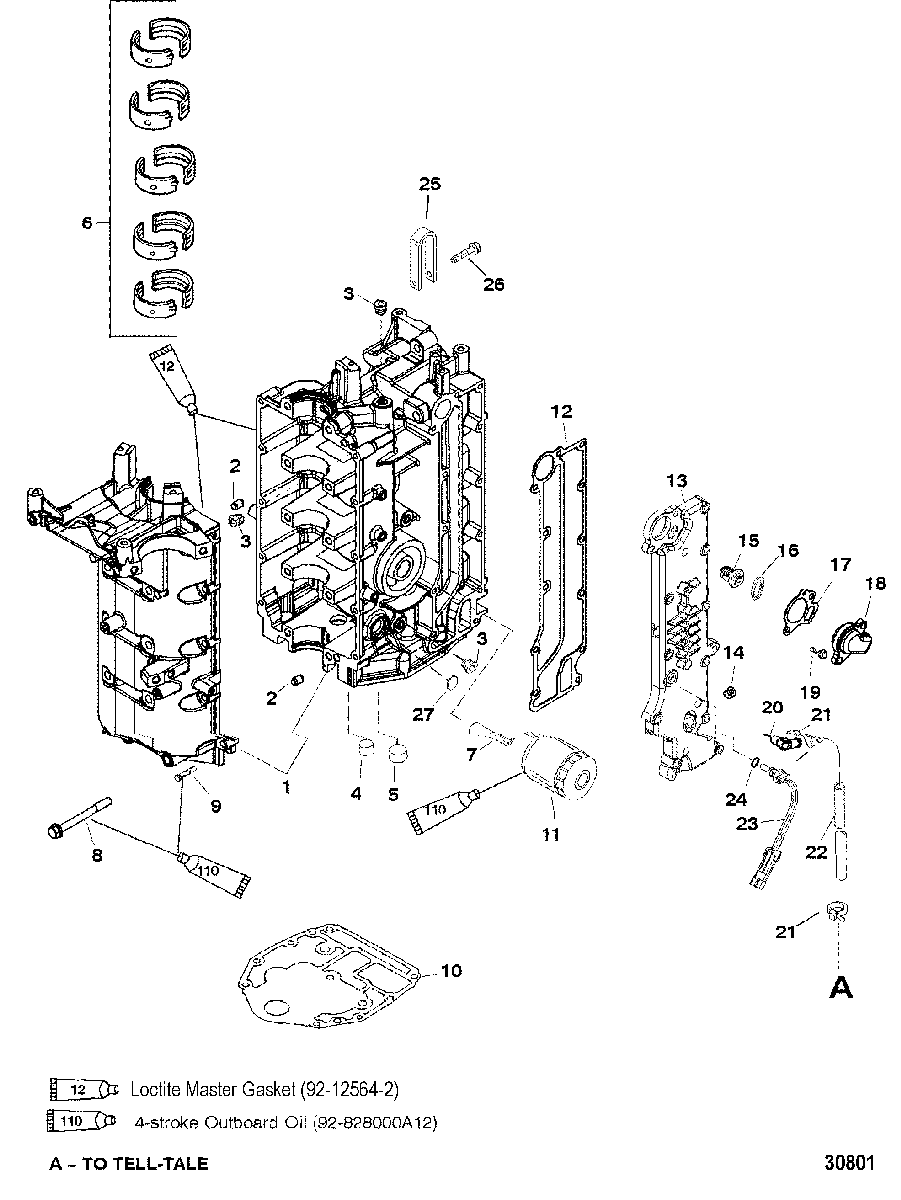

CYLINDER BLOCK AND CRANKCASE для Mariner - 50 (4-STROKE)(4 CYL.) 0P094500 THRU 0P206999
-
№АртикулНазвание
-
1800-893502T02 CYLINDER BLOCKCYLINDER BLOCK
-
217-825010 PIN, DowelPIN, Dowel
-
322-479452 PLUGPLUG
-
422-384073 PLUG, Pipe (1/2-14)PLUG, Pipe (1/2-14)
-
522-416223 PLUG, Pipe (.750-14)PLUG, Pipe (.750-14)
-
623-893631 BEARING, BrownBEARING, Brown
-
623-893631001 BEARING, BlackBEARING, Black
-
623-893631002 BEARING, BlueBEARING, Blue
-
7822625 NIPPLE, (M20)NIPPLE, (M20)
-
810-82506182 SCREW, (M8 x 82)SCREW, (M8 x 82)
-
910-88348935 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
1027-892319001 GASKETGASKET
-
1135-8M0065104 FILTER, OilFILTER, Oil
-
1227-857078 GASKETGASKET
-
138M0118194 COVER, ExhaustCOVER, Exhaust
-
1422-479452 PLUGPLUG
-
1514586 THERMOSTATTHERMOSTAT
-
1627-62386001 GASKETGASKET
-
1727-824853 GASKETGASKET
-
188M0008243 COVERCOVER
-
1910-88348935 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
2022-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
2154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2232-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 11 IN.)TUBING, (.312) (70.00 Inches Bulk) (Cut to 11 IN.)
-
23889575 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
2425-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
25893697 LIFTING EYELIFTING EYE
-
2610-857139 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
27NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
-61-893678T03 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-859352A01 GASKET SETGASKET SET
