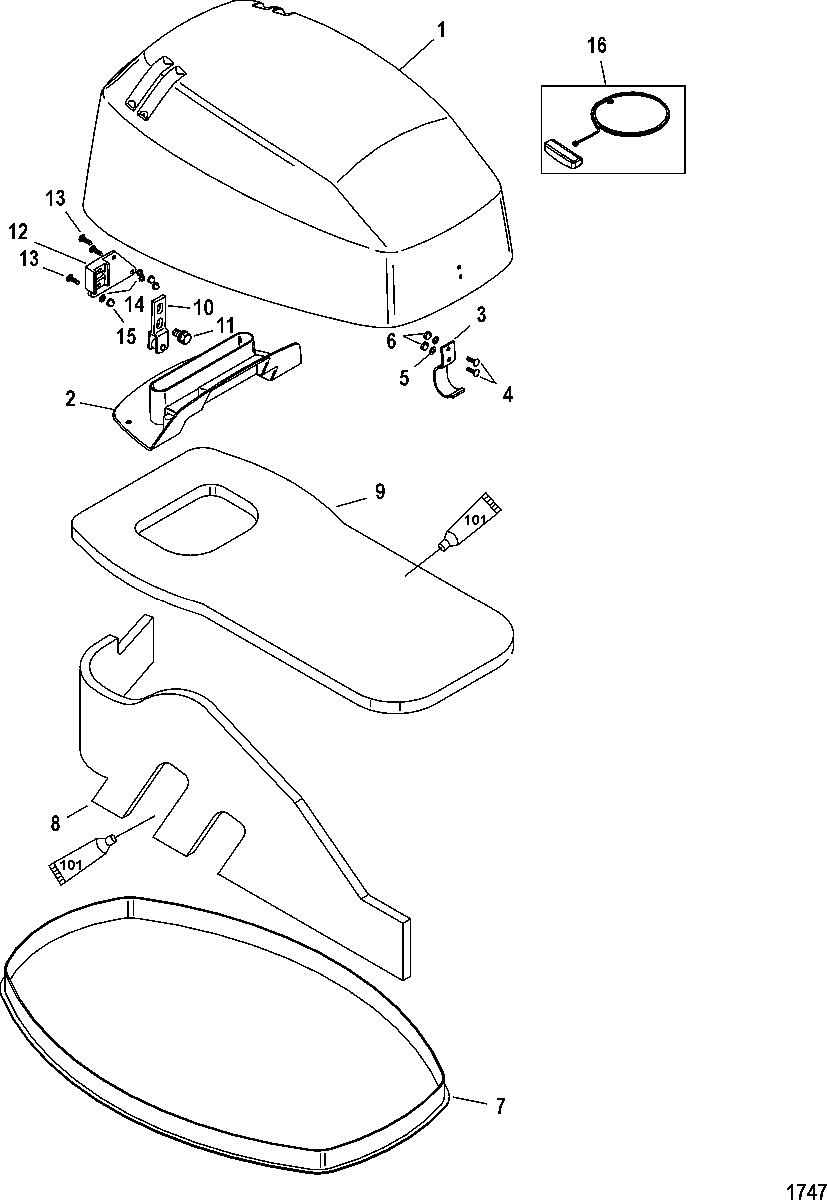

Top Cowl для Mariner - 50 EFI (4 CYL.)(4-STROKE) 0T409000 THRU 1B344306
-
№АртикулНазвание
-
14019-875300T36 TOP COWL ASSEMBLY
(Black)TOP COWL ASSEMBLY
(Black) -
14019-825239T4 TOP COWL ASSEMBLY
(Silver)TOP COWL ASSEMBLY
(Silver) -
2NSS NOT SOLD SEPARATE, Induction InsertNOT SOLD SEPARATE, Induction Insert
-
3826291F1 LATCH
(Black)LATCH
(Black) -
3826291F1 LATCH
(Silver)LATCH
(Silver) -
410-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
513-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
611-8237515 NUT, (M4)NUT, (M4)
-
78M0043388 SEALSEAL
-
8825243A03 SOUND BLANKET KIT
SN# 1B226999 & BelowSOUND BLANKET KIT
SN# 1B226999 & Below -
8825243A03 SOUND BLANKET KIT
SN# 0P400999 & BelowSOUND BLANKET KIT
SN# 0P400999 & Below -
8825243A03 SOUND BLANKET KIT
SN# 1B227000 & UpSOUND BLANKET KIT
SN# 1B227000 & Up -
8825243A03 SOUND BLANKET KIT
SN# 0P401000 & UpSOUND BLANKET KIT
SN# 0P401000 & Up -
9NSS NOT SOLD SEPARATE, Sound Blanket-TopNOT SOLD SEPARATE, Sound Blanket-Top
-
10893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
1110-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
128M0038412 BRACKETBRACKET
-
1310-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
1413-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1511-8237515 NUT, (M4)NUT, (M4)
-
1647341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
