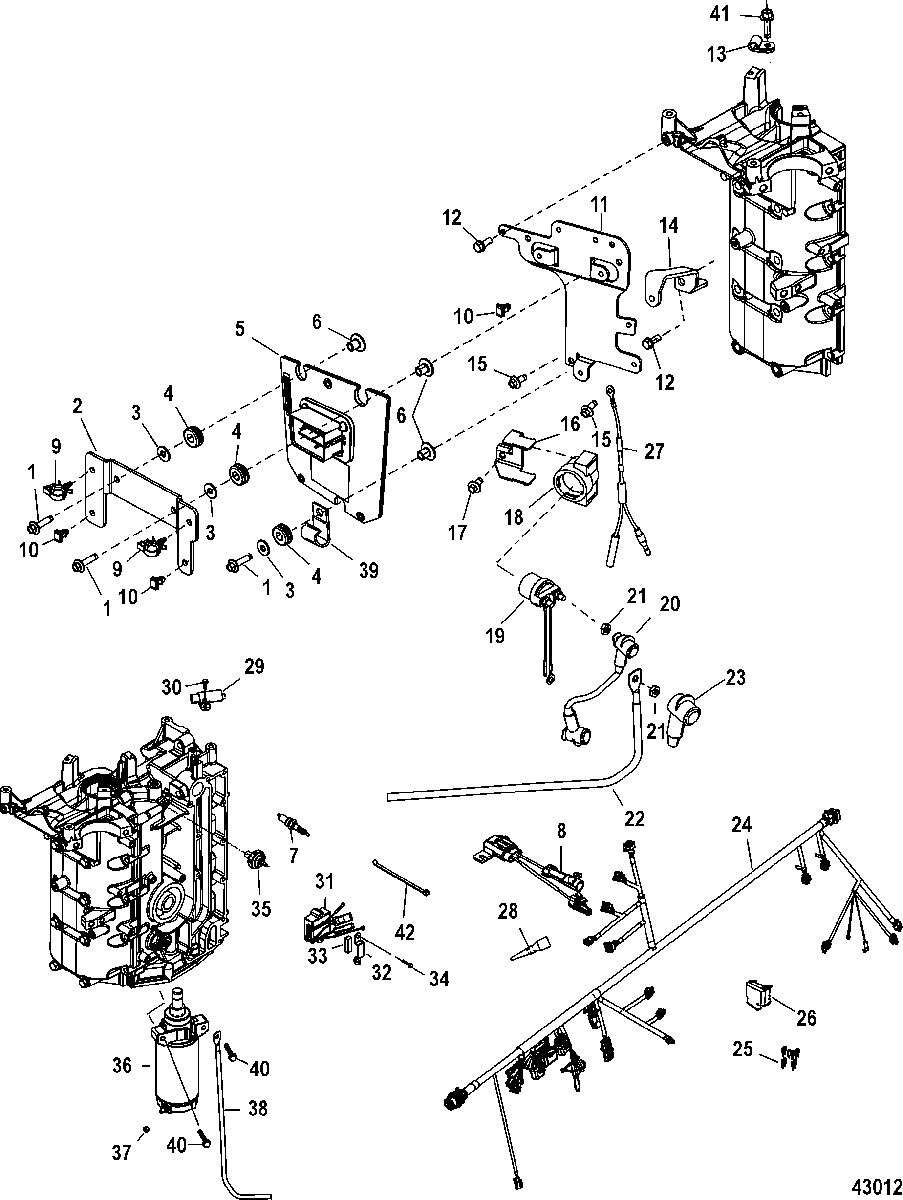

Electrical Components, 1C104424/0P560350 and Up для Mariner - 50 EFI (4 CYL.)(4-STROKE) 1C050252 & Up
-
№АртикулНазвание
-
110-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
2893774002 BRACKETBRACKET
-
312-4002316 WASHERWASHER
-
425-834985 GROMMETGROMMET
-
58M0059784 ECM, Engine Control Module - 40 BFECM, Engine Control Module - 40 BF
-
58M0059786 ECM, Engine Control Module - 40 JetECM, Engine Control Module - 40 Jet
-
58M0059785 ECM, Engine Control Module - 40 BF/ EUECM, Engine Control Module - 40 BF/ EU
-
58M0059787 ECM, Engine Control Module - 50ECM, Engine Control Module - 50
-
58M0059788 ECM, Engine Control Module - 50 EUECM, Engine Control Module - 50 EU
-
58M0059789 ECM, Engine Control Module - 60ECM, Engine Control Module - 60
-
58M0059790 ECM, Engine Control Module - 60 EUECM, Engine Control Module - 60 EU
-
623-856954 BUSHINGBUSHING
-
733-883323001 SPARK PLUGSPARK PLUG
-
884-897940T01 HARNESS ASSEMBLY, FuseHARNESS ASSEMBLY, Fuse
-
954-858954 CLIP, (.625)CLIP, (.625)
-
1054-879962 CLIP, Part of Electrical HarnessCLIP, Part of Electrical Harness
-
118M0022449 PLATEPLATE
-
1210-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1354-24836 CLIPCLIP
-
148M0007734 BRACEBRACE
-
1510-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
16893768 PLATE, SolenoidPLATE, Solenoid
-
1710-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
188M0010250 BRACKETBRACKET
-
1989-8M0098898 RELAYRELAY
-
2084-93388A16 CABLE ASSEMBLY, (8.50 Inches)CABLE ASSEMBLY, (8.50 Inches)
-
2111-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2284-88439A9 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
2385-880786 BOOT, Insulator - RedBOOT, Insulator - Red
-
2484-8M0044999 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
2588-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
2588-832969T25 FUSE, Mini - Clear - 25 AmpereFUSE, Mini - Clear - 25 Ampere
-
2588-832969T05 FUSE, Mini - Tan - 5 AmpereFUSE, Mini - Tan - 5 Ampere
-
2588-832969T15 FUSE, Mini - Blue - 15 AmpereFUSE, Mini - Blue - 15 Ampere
-
2588-8329692 FUSE, Mini - Gray - 2 AmpereFUSE, Mini - Gray - 2 Ampere
-
268M0045270 COVERCOVER
-
2784-883834T01 CABLE ASSEMBLY, DiodeCABLE ASSEMBLY, Diode
-
2813541 PLUG, MalePLUG, Male
-
298M0082988 SENSOR, Crank PositionSENSOR, Crank Position
-
3010-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
31893640T01 REGULATOR, VoltageREGULATOR, Voltage
-
32893771 BRACKET, ConnectorBRACKET, Connector
-
338308971 FOAM PADFOAM PAD
-
3410-8248329 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
3587-8M0098207 PRESSURE SWITCHPRESSURE SWITCH
-
3650-893888T STARTER MOTOR ASSEMBLY, CompleteSTARTER MOTOR ASSEMBLY, Complete
-
3711-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
3884-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
3954-65292 J CLIPJ CLIP
-
4010-40011153 SCREW, (M8 x 45) Stainless SteelSCREW, (M8 x 45) Stainless Steel
-
4110-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
4254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
-37-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
-
-61-893678T03 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
