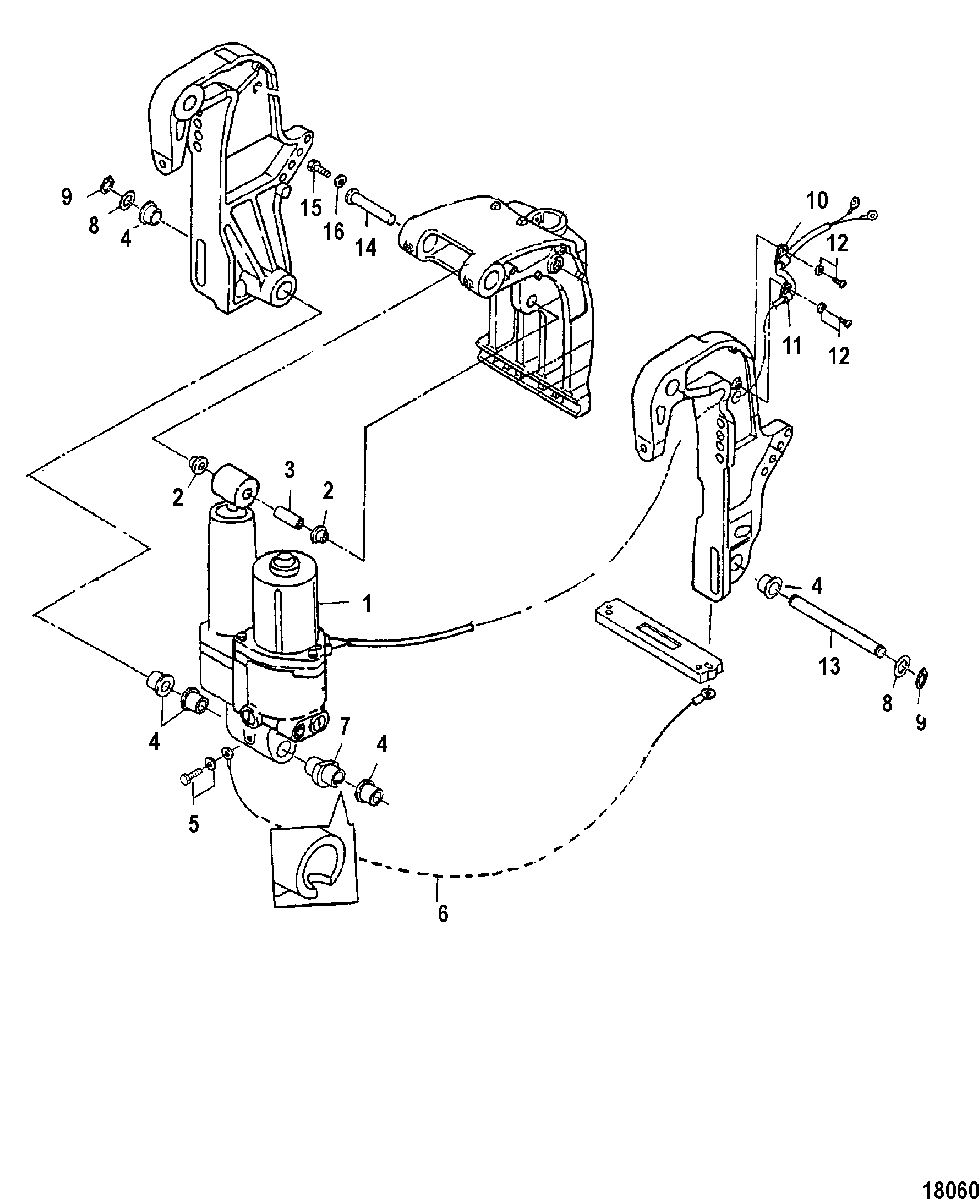

Power Trim для Mariner - 50MH 0N056165 & Up
-
№АртикулНазвание
-
18M0097054 POWER TRIM ASSEMBLYPOWER TRIM ASSEMBLY
-
223-16176009 BUSHINGBUSHING
-
323-16176010 BUSHINGBUSHING
-
423-161765 BUSHINGBUSHING
-
510-8230427 BOLTBOLT
-
684-898101089 GROUND WIREGROUND WIRE
-
723-16176011 BUSHINGBUSHING
-
812-853822002 WASHERWASHER
-
953-804027003 C RINGC RING
-
1054-953951 CLAMPCLAMP
-
1154-17169 CLAMPCLAMP
-
1210-8555445 SCREWSCREW
-
1317-8M0091499 PINPIN
-
1417-8M0091498 PIN, CylinderPIN, Cylinder
-
1510-879194248 BOLTBOLT
-
1612-898101937 WASHERWASHER
