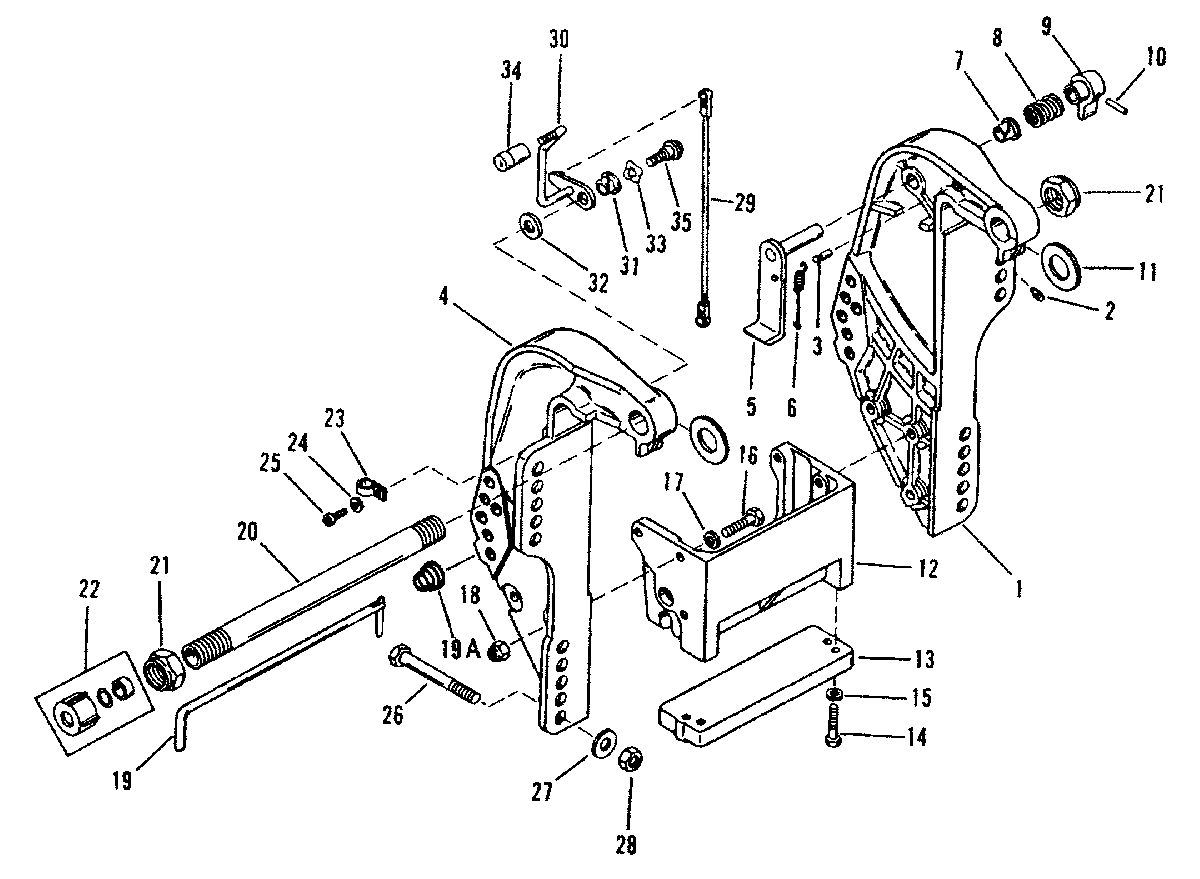

TRANSOM BRACKET (50/60)(S/N: 0D182000 AND UP) для Mariner - 55 (3 CYL.) 0D000750 THRU 0G290584
-
№АртикулНазвание
-
13418-822866T04 TRANSOM BRACKET (BLACK)
(PORT)TRANSOM BRACKET (BLACK)
(PORT) -
13418-822866A2 TRANSOM BRACKET (GRAY)
(PORT)TRANSOM BRACKET (GRAY)
(PORT) -
13418-822866A3 TRANSOM BRACKET (TRACKER)
(PORT)TRANSOM BRACKET (TRACKER)
(PORT) -
222-98727 GREASE FITTINGGREASE FITTING
-
317-99604 GROOVE PINGROOVE PIN
-
43418-822865T05 TRANSOM BRACKET (BLACK)
(STARBOARD)TRANSOM BRACKET (BLACK)
(STARBOARD) -
43418-822865F3 TRANSOM BRACKET (GRAY)
(STARBOARD)TRANSOM BRACKET (GRAY)
(STARBOARD) -
43418-822865F4 TRANSOM BRACKET (TRACKER)
(STARBOARD)TRANSOM BRACKET (TRACKER)
(STARBOARD) -
5893704T01 TILT LOCK LEVER (BLACK)TILT LOCK LEVER (BLACK)
-
5893704T01 TILT LOCK LEVER (GRAY)TILT LOCK LEVER (GRAY)
-
519618A5 TILT LOCK LEVER (TRACKER)TILT LOCK LEVER (TRACKER)
-
624-99622 SPRINGSPRING
-
723-65830 NYLINERNYLINER
-
824-812708 SPRINGSPRING
-
9812709 KNOB (BLACK)KNOB (BLACK)
-
9812709 KNOB (GRAY)KNOB (GRAY)
-
9812709 KNOB (TRACKER)KNOB (TRACKER)
-
1017-99615 GROOVE PINGROOVE PIN
-
1112-19619 WASHERWASHER
-
1218486A08 ANCHOR BRACKET (BLACK)ANCHOR BRACKET (BLACK)
-
1218486A08 ANCHOR BRACKET (GRAY)ANCHOR BRACKET (GRAY)
-
1218486F7 ANCHOR BRACKET (TRACKER)ANCHOR BRACKET (TRACKER)
-
1397-818298Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
1410-4000330 SCREWSCREW
-
1512-29245 WASHERWASHER
-
1610-4000354 SCREW (30 MM)SCREW (30 MM)
-
1610-4000355 SCREW (35 MM)SCREW (35 MM)
-
1713-400257 LOCKWASHERLOCKWASHER
-
1811-401388 NUTNUT
-
1917-8M0026068 TILT PIN ASSEMBLY
(USE WHERE APPLICABLE)TILT PIN ASSEMBLY
(USE WHERE APPLICABLE) -
19A24-821461 SPRING
(USE WHERE APPLICABLE)SPRING
(USE WHERE APPLICABLE) -
208M0041938 TILT TUBETILT TUBE
-
2111-858869 NUTNUT
-
2219624A1 SEAL KITSEAL KIT
-
2354-26550 CLIP
(POWER TRIM)CLIP
(POWER TRIM) -
248M0084613 C-WASHER
(POWER TRIM)C-WASHER
(POWER TRIM) -
2510-878607 SCREW
(POWER TRIM)SCREW
(POWER TRIM) -
2610-814259 SCREWSCREW
-
2712-28421 WASHERWASHER
-
2811-91962 NUTNUT
-
298M0084737 LINK
(NON POWER TRIM)LINK
(NON POWER TRIM) -
3019615A05 TILT LEVER
(NON POWER TRIM)TILT LEVER
(NON POWER TRIM) -
3123-812707 BUSHING
(NON POWER TRIM)BUSHING
(NON POWER TRIM) -
3212-8M0042643 WASHER
(NON POWER TRIM)WASHER
(NON POWER TRIM) -
3313-99611 WAVE WASHER
(NON POWER TRIM)WAVE WASHER
(NON POWER TRIM) -
348M0007469 TILT KNOB
(NON POWER TRIM)TILT KNOB
(NON POWER TRIM) -
3510-19611 SCREW
(NON POWER TRIM)SCREW
(NON POWER TRIM)
