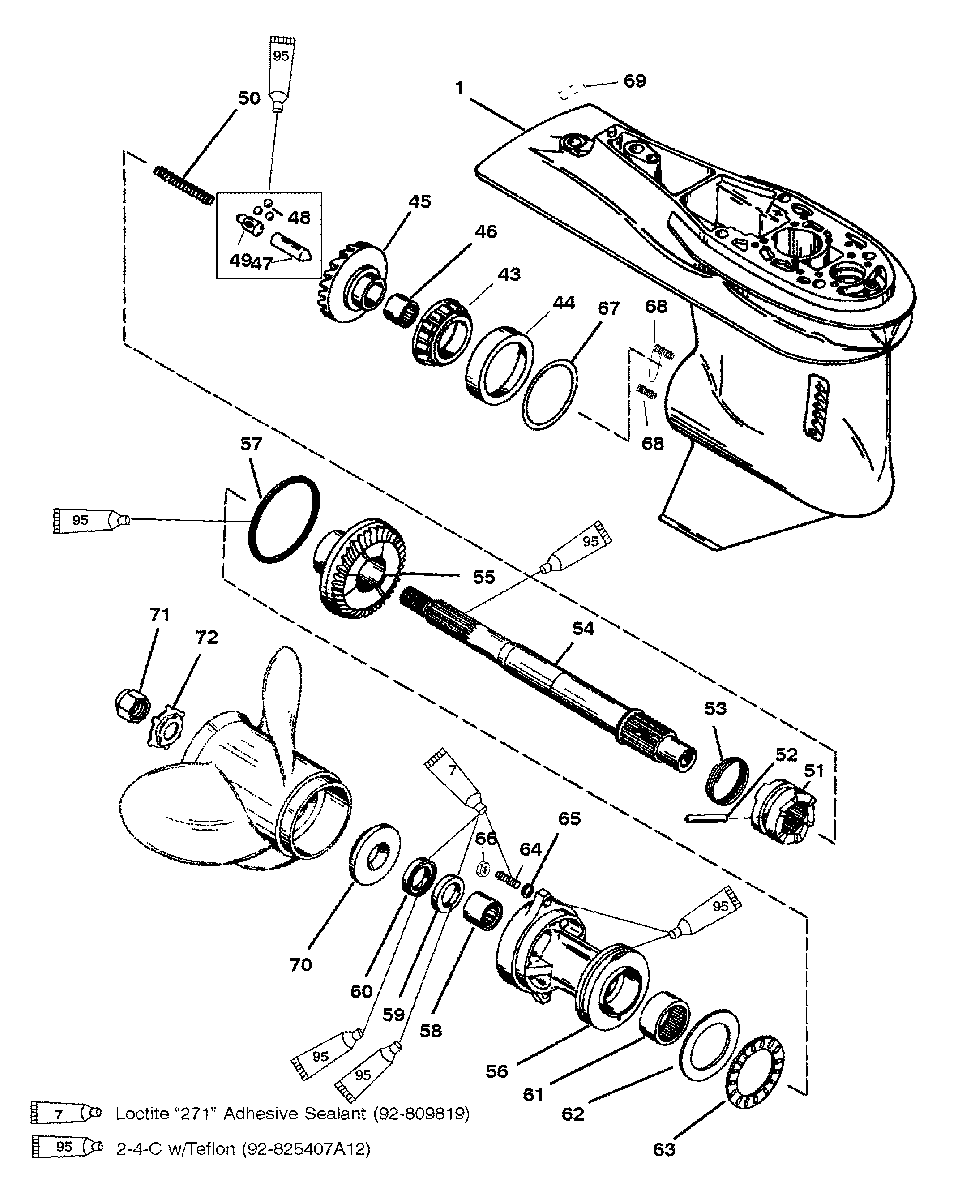

GEAR HSG(DRIVE SHAFT)(60 SEA/MARA/BIG FOOT,6 JAW REV. CLUTCH для Mariner - 55 (3 CYL.) 0G290585 THRU 0G589999
-
№АртикулНазвание
-
-1667-9011G92 GEAR HOUSING
(LONG) BLACKGEAR HOUSING
(LONG) BLACK -
-1667-9011G94 GEAR HOUSING
(LL) BLACKGEAR HOUSING
(LL) BLACK -
-1667-9011G92 GEAR HOUSING
(LONG) GRAYGEAR HOUSING
(LONG) GRAY -
-1667-9011G48 GEAR HOUSING
(LL) GRAYGEAR HOUSING
(LL) GRAY -
11667-9011G59 GEAR HOUSING ASSEMBLY
(BLACK)GEAR HOUSING ASSEMBLY
(BLACK) -
11667-9011G59 GEAR HOUSING ASSEMBLY
(GRAY)GEAR HOUSING ASSEMBLY
(GRAY) -
4331-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
44NSS CUPCUP
-
4543-859472A3 FORWARD GEARFORWARD GEAR
-
4631-30895T ROLLER BEARINGROLLER BEARING
-
47850315A1 CAM FOLLOWER ASSEMBLYCAM FOLLOWER ASSEMBLY
-
4830-44530 BALLBALL
-
49NSS SLIDESLIDE
-
5024-850327 SPRINGSPRING
-
5152-850048T CLUTCHCLUTCH
-
5217-8M0100263 CROSS PINCROSS PIN
-
5324-30893 SPRINGSPRING
-
5444-8M0140445 PROPELLER SHAFTPROPELLER SHAFT
-
5543-850034T REVERSE GEARREVERSE GEAR
-
5612596T2 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
5725-861844 O-RINGO-RING
-
5831-30956T ROLLER BEARINGROLLER BEARING
-
5926-70080 OIL SEAL
(INNER)OIL SEAL
(INNER) -
6026-70081 OIL SEAL
(OUTER)OIL SEAL
(OUTER) -
6131-12578T ROLLER BEARINGROLLER BEARING
-
6212-12577 THRUST WASHERTHRUST WASHER
-
6331-12576 THRUST BEARINGTHRUST BEARING
-
6416-8M0034456 STUDSTUD
-
6512-8M0042642 WASHERWASHER
-
6611-401378 NUTNUT
-
6715-8M0063266 SHIM ASSEMBLYSHIM ASSEMBLY
-
68NSS THREAD INSERTTHREAD INSERT
-
69NSS DECALDECAL
-
7013191Q01 THRUST HUB ASSEMBLYTHRUST HUB ASSEMBLY
-
7111-52707Q1 PROPELLER NUT ASSEMBLYPROPELLER NUT ASSEMBLY
-
7214-816629Q TAB WASHERTAB WASHER
-
-26-43035A4 SEAL KITSEAL KIT
