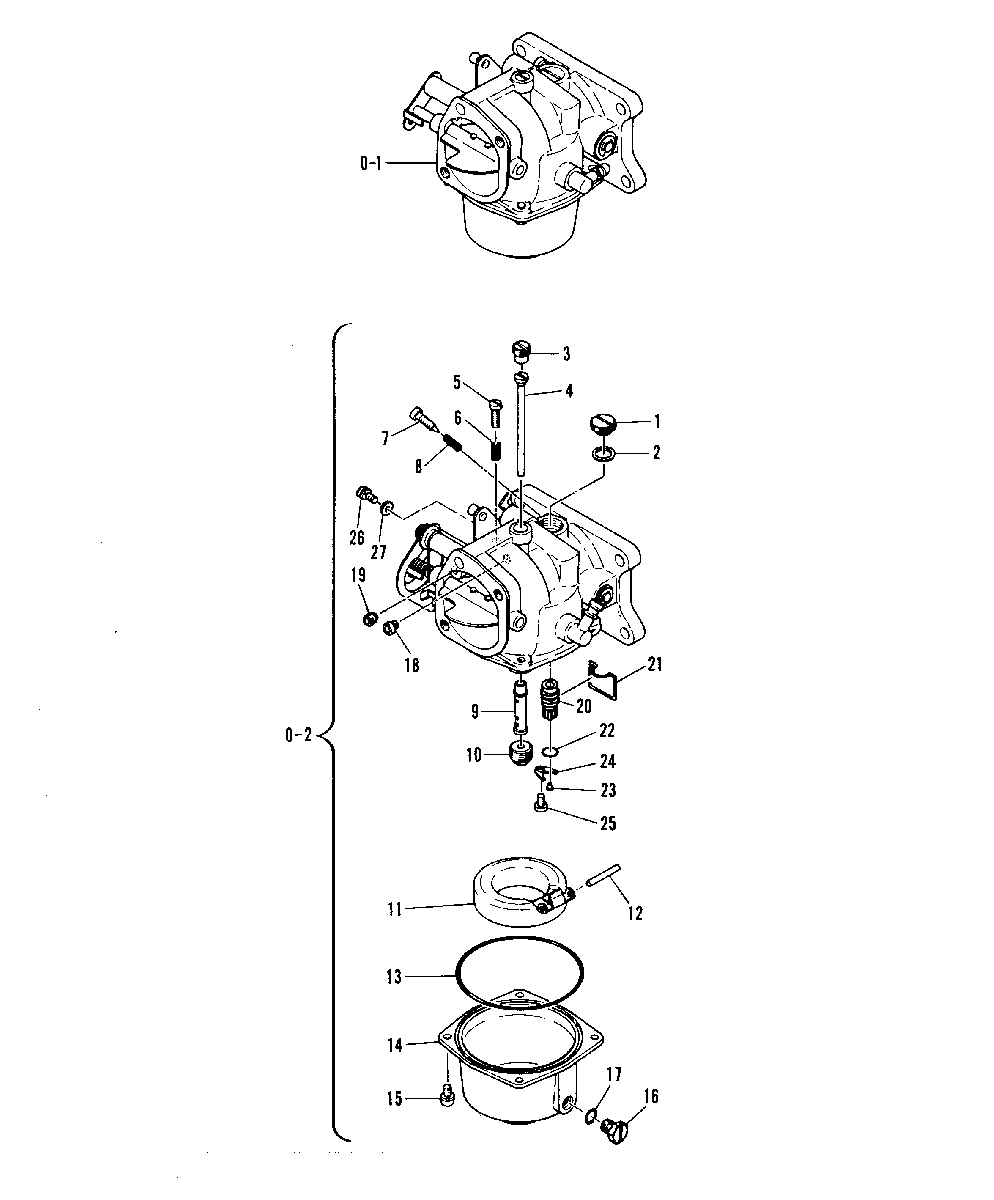

CARBURETOR для Mariner - 55 663-004041 AND UP
-
№АртикулНазвание
-
0-11383-9819M CARBURETOR ASSEMBLY (UPPER)
SERIAL (E-004424 EL-318399) AND ABOVECARBURETOR ASSEMBLY (UPPER)
SERIAL (E-004424 EL-318399) AND ABOVE -
0-11383-9820M CARBURETOR (LOWER)
SERIAL (E-004424 EL-318399) AND ABOVECARBURETOR (LOWER)
SERIAL (E-004424 EL-318399) AND ABOVE -
0-11383-9819M CARBURETOR (UPPER)
SERIAL (E-004423 EL-318398) AND ABOVECARBURETOR (UPPER)
SERIAL (E-004423 EL-318398) AND ABOVE -
0-11383-9820M CARBURETOR (LOWER)
SERIAL (E-004423EL-318398) AND BELOWCARBURETOR (LOWER)
SERIAL (E-004423EL-318398) AND BELOW -
110-81292M PLUG SCREWPLUG SCREW
-
212-92636M WASHERWASHER
-
310-81279M PLUG SCREWPLUG SCREW
-
484441M JET, PILOT (#80)
SERIAL (E-004424 EL-318399) AND ABOVEJET, PILOT (#80)
SERIAL (E-004424 EL-318399) AND ABOVE -
497081M JET, PILOT (#82)
SERIAL (E-004423 EL-318398) AND BELOWJET, PILOT (#82)
SERIAL (E-004423 EL-318398) AND BELOW -
510-81277M SCREW, THROTTLE (LOWER)SCREW, THROTTLE (LOWER)
-
624-82080M SPRING (LOWER)SPRING (LOWER)
-
710-81281M SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
824-82073M SPRINGSPRING
-
981287M MAIN NOZZLEMAIN NOZZLE
-
1092638M MAIN JET (#160)MAIN JET (#160)
-
1197848M FLOAT (E-004424 EL-318399 AND ABOVE)FLOAT (E-004424 EL-318399 AND ABOVE)
-
1197848M FLOAT (E-004423 EL-318398 AND BELOW)FLOAT (E-004423 EL-318398 AND BELOW)
-
1217-81278M FLOAT PINFLOAT PIN
-
1325-82288M "O" RING"O" RING
-
1481290M FLOAT BOWLFLOAT BOWL
-
1510-81758M SCREWSCREW
-
1610-81293M SCREWSCREW
-
1725-94498M "O" RING"O" RING
-
1881288M PILOT, AIR JET (#100)PILOT, AIR JET (#100)
-
1995626M JET (#125)JET (#125)
-
2041841M VALVE SEAT
SERIAL (E-004424 EL-318399) AND ABOVEVALVE SEAT
SERIAL (E-004424 EL-318399) AND ABOVE -
2082780M VALVE SEAT
SERIAL (E-004423 EL-318398) AND BELOWVALVE SEAT
SERIAL (E-004423 EL-318398) AND BELOW -
2154-8M0120624 CLIP
.CLIP
. -
2225-82261M "O" RING"O" RING
-
2317-92639M VALVE PINVALVE PIN
-
2480026M PLATEPLATE
-
2510-82512M SCREWSCREW
-
2610-97082M SCREW (UPPER)SCREW (UPPER)
-
2712-83372M WASHER (UPPER)WASHER (UPPER)
-
2719141M CARB REPAIR KIT
SERIAL (E-004424 EL-318399) AND ABOVE. CONTENTS INDICATED BY FOOTNOTE 11.CARB REPAIR KIT
SERIAL (E-004424 EL-318399) AND ABOVE. CONTENTS INDICATED BY FOOTNOTE 11. -
2784419M CARB REPAIR KIT
SERIAL (E-004423 EL-318398) AND BELOW. CONTENTS INDICATED BY FOOTNOTE 11.CARB REPAIR KIT
SERIAL (E-004423 EL-318398) AND BELOW. CONTENTS INDICATED BY FOOTNOTE 11.
