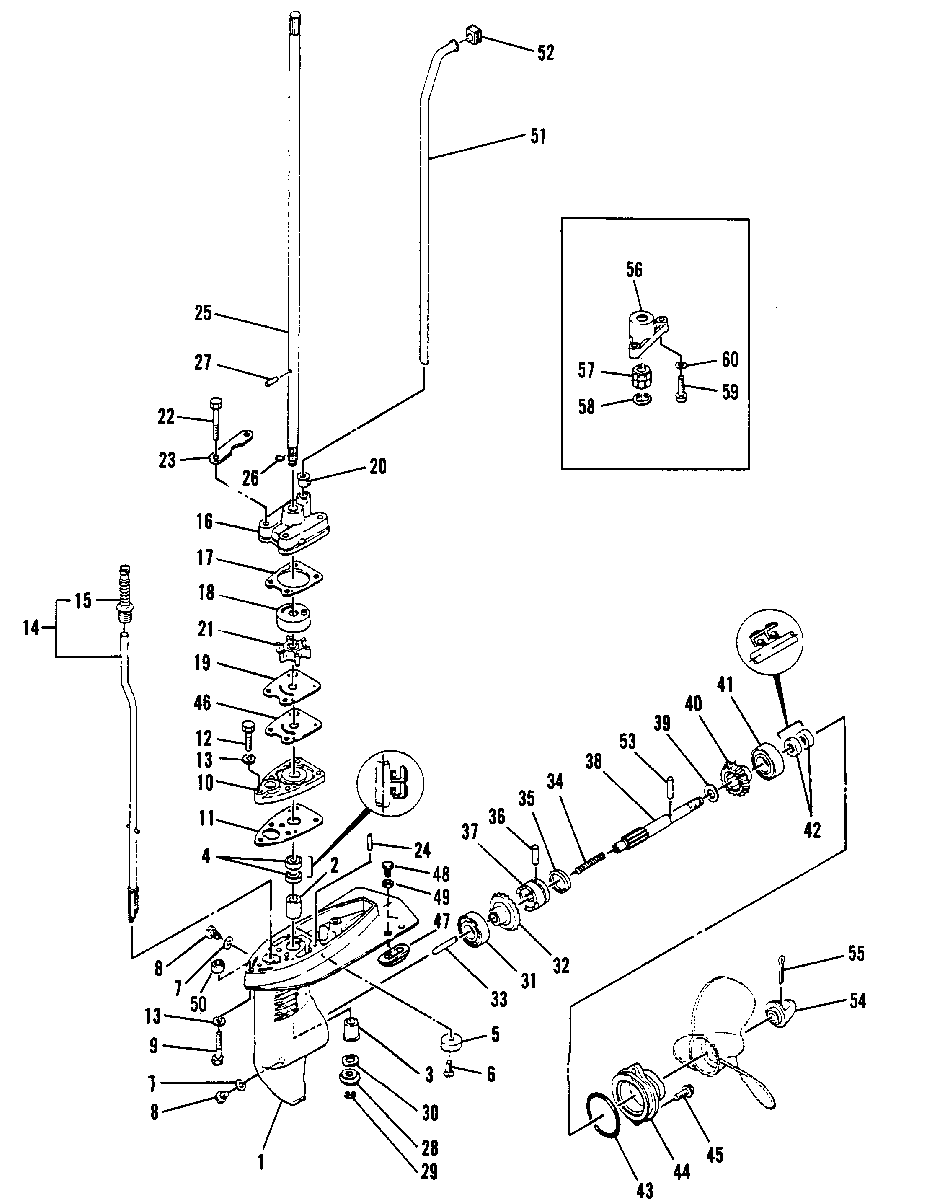

GEARHOUSING ASSEMBLY для Mariner - 5C 6E3-400101 AND UP
-
№АртикулНазвание
-
0-11651-810952M GEARHOUSING ASS'Y (SHORT)
SERIAL (M-162953 ML-435351) AND ABOVEGEARHOUSING ASS'Y (SHORT)
SERIAL (M-162953 ML-435351) AND ABOVE -
0-11651-810952M GEARHOUSING ASS'Y (SHORT)
SERIAL (M-162952 ML-435350) AND BELOWGEARHOUSING ASS'Y (SHORT)
SERIAL (M-162952 ML-435350) AND BELOW -
0-11651-810953M GEARHOUSING ASS'Y (LONG)
SERIAL (M-162953 ML-435351) AND ABOVEGEARHOUSING ASS'Y (LONG)
SERIAL (M-162953 ML-435351) AND ABOVE -
0-11651-810953M GEARHOUSING ASS'Y (LONG)
SERIAL (M-154200 THRU 162952 ML-430160 THRU 435350)GEARHOUSING ASS'Y (LONG)
SERIAL (M-154200 THRU 162952 ML-430160 THRU 435350) -
0-11651-810953M GEARHOUSING ASS'Y (LONG)
SERIAL (M-154199 ML-430159) AND BELOWGEARHOUSING ASS'Y (LONG)
SERIAL (M-154199 ML-430159) AND BELOW -
11651-810954M GEARHOUSING
SERIAL (M-162953 ML-435351) AND ABOVEGEARHOUSING
SERIAL (M-162953 ML-435351) AND ABOVE -
11651-8259M GEARHOUSING
SERIAL (M-154200 THRU 162952 ML-430160 THRU 435350)GEARHOUSING
SERIAL (M-154200 THRU 162952 ML-430160 THRU 435350) -
11651-8259M GEARHOUSING
SERIAL (M-154199 ML-430159) AND BELOWGEARHOUSING
SERIAL (M-154199 ML-430159) AND BELOW -
223-95476M BUSHING
SERIAL (M-006976 ML-304894) AND ABOVEBUSHING
SERIAL (M-006976 ML-304894) AND ABOVE -
323-95477M BUSHING
SERIAL (M-006976 ML-304984) AND ABOVEBUSHING
SERIAL (M-006976 ML-304984) AND ABOVE -
426-91726M OIL SEALOIL SEAL
-
581045M ANODE
SERIAL (M-162953 ML-435351) AND ABOVEANODE
SERIAL (M-162953 ML-435351) AND ABOVE -
595609M ANODE
SERIAL (M-136244 THRU 162952 ML-420839 THRU 435350)ANODE
SERIAL (M-136244 THRU 162952 ML-420839 THRU 435350) -
543107M ANODE
SERIAL (M-136243 ML-420838) AND BELOWANODE
SERIAL (M-136243 ML-420838) AND BELOW -
610-91772M SCREW
SERIAL (M-136244 ML-420839) AND ABOVESCREW
SERIAL (M-136244 ML-420839) AND ABOVE -
610-84367M SCREW
SERIAL (M-136243 ML-420838) AND BELOWSCREW
SERIAL (M-136243 ML-420838) AND BELOW -
727-81987 GASKETGASKET
-
822-81924M PLUGPLUG
-
910-18851M BOLT
SERIAL (M-154200 ML-430160) AND ABOVEBOLT
SERIAL (M-154200 ML-430160) AND ABOVE -
910-14185M BOLT
SERIAL (M-144067 THRU 154199 ML-425197 THRU 430159)BOLT
SERIAL (M-144067 THRU 154199 ML-425197 THRU 430159) -
910-83285M BOLT
SERIAL (M-144066 ML-425196) AND BELOWBOLT
SERIAL (M-144066 ML-425196) AND BELOW -
108M0080450 PLATE
SERIAL (M-159237 ML-433188) AND ABOVEPLATE
SERIAL (M-159237 ML-433188) AND ABOVE -
108M0080450 PLATE
SERIAL (M-136244 THRU 159236 ML-420838 THRU 433187)PLATE
SERIAL (M-136244 THRU 159236 ML-420838 THRU 433187) -
108M0080450 PLATE
SERIAL (M-136243 ML-420838) AND BELOWPLATE
SERIAL (M-136243 ML-420838) AND BELOW -
1127-96295 GASKETGASKET
-
1210-82405M BOLTBOLT
-
1312-82214M WASHERWASHER
-
1496297M SHIFT CAM ASS'Y (SHORT)SHIFT CAM ASS'Y (SHORT)
-
1496298M SHIFT CAM ASS'Y (LONG)SHIFT CAM ASS'Y (LONG)
-
1515304M BOOT, SHIFT RODBOOT, SHIFT ROD
-
1646-96299M HOUSING, WATER PUMPHOUSING, WATER PUMP
-
1727-96300 GASKET, WATER PUMPGASKET, WATER PUMP
-
1896301M INSERT, CARTRIDGEINSERT, CARTRIDGE
-
1896302M INSERT, CHROME (OPT)INSERT, CHROME (OPT)
-
1996303M OUTER PLATE, CARTRIDGEOUTER PLATE, CARTRIDGE
-
1996304M OUTER PLATE, CHROME (OPT)OUTER PLATE, CHROME (OPT)
-
2026-14186M SEAL
SERIAL (M-144067 ML-425197) AND ABOVESEAL
SERIAL (M-144067 ML-425197) AND ABOVE -
2026-80398M SEAL
SERIAL (M-144066 ML-425196) AND BELOWSEAL
SERIAL (M-144066 ML-425196) AND BELOW -
2147-96305M IMPELLERIMPELLER
-
2210-84657M BOLTBOLT
-
2396306M PLATEPLATE
-
2417-82357M PINPIN
-
2545-96307M DRIVESHAFT (SHORT)DRIVESHAFT (SHORT)
-
2545-96308M DRIVESHAFT (LONG)DRIVESHAFT (LONG)
-
2653-96309M CLIPCLIP
-
2717-82355M PINPIN
-
2843-96310M PINIONPINION
-
2953-82331M SNAP RINGSNAP RING
-
0-11651-810952M GEARHOUSING ASS'Y (SHORT)
SERIAL (M-162953 ML-435351) AND ABOVEGEARHOUSING ASS'Y (SHORT)
SERIAL (M-162953 ML-435351) AND ABOVE -
0-11651-810952M GEARHOUSING ASS'Y (SHORT)
SERIAL (M-162952 ML-435350) AND BELOWGEARHOUSING ASS'Y (SHORT)
SERIAL (M-162952 ML-435350) AND BELOW -
0-11651-810953M GEARHOUSING ASS'Y (LONG)
SERIAL (M-162953 ML-435351) AND ABOVEGEARHOUSING ASS'Y (LONG)
SERIAL (M-162953 ML-435351) AND ABOVE -
0-11651-810953M GEARHOUSING AS'Y (LONG)
SERIAL (M-154200 THRU 162952 ML-430160 THRU 435350)GEARHOUSING AS'Y (LONG)
SERIAL (M-154200 THRU 162952 ML-430160 THRU 435350) -
0-11651-810953M GEARHOUSING ASS'Y (LONG)
SERIAL (M-154199 ML-430159) AND BELOWGEARHOUSING ASS'Y (LONG)
SERIAL (M-154199 ML-430159) AND BELOW -
3012-96311M WASHERWASHER
-
3130-82291T BEARING
SERIAL (M-144067 ML-425197) AND ABOVEBEARING
SERIAL (M-144067 ML-425197) AND ABOVE -
3130-82291T BEARING
SERIAL (M-144066 ML-425196) AND BELOWBEARING
SERIAL (M-144066 ML-425196) AND BELOW -
3243-96312M GEAR, FORWARDGEAR, FORWARD
-
3381014M PLUNGER, SHIFTPLUNGER, SHIFT
-
3424-82077M SPRINGSPRING
-
3553-81013M RING, CROSS PINRING, CROSS PIN
-
3617-81902M PIN, CROSSPIN, CROSS
-
3752-96313M CLUTCH, DOGCLUTCH, DOG
-
3844-96314M SHAFT, PROPELLERSHAFT, PROPELLER
-
3912-96315M WASHERWASHER
-
4043-96316M GEAR, REVERSEGEAR, REVERSE
-
4130-82291T BEARING
(M-006976 ML-304984) AND ABOVEBEARING
(M-006976 ML-304984) AND ABOVE -
4130-82291T BEARING
(M-006975 ML-304983) AND BELOWBEARING
(M-006975 ML-304983) AND BELOW -
4226-96317M OIL SEALOIL SEAL
-
4325-82280M O-RINGO-RING
-
4496318M CAP, GEARHOUSINGCAP, GEARHOUSING
-
4510-91686M BOLTBOLT
-
4627-41822 GASKET, WATER PUMP
SERIAL (M-136243 ML-420838) AND BELOWGASKET, WATER PUMP
SERIAL (M-136243 ML-420838) AND BELOW -
4797-18852M ANODE
SERIAL (M-154200 THRU 162952 ML-430160 THRU 435350)ANODE
SERIAL (M-154200 THRU 162952 ML-430160 THRU 435350) -
4810-826957M BOLT
SERIAL (M-154200 THRU 162952 ML-430160 THRU 435350)BOLT
SERIAL (M-154200 THRU 162952 ML-430160 THRU 435350) -
4912-82214M WASHER
SERIAL (M-154200 ML-430160) AND ABOVEWASHER
SERIAL (M-154200 ML-430160) AND ABOVE -
5018853M COLLAR
SERIAL (M-154200 ML-430160) AND ABOVECOLLAR
SERIAL (M-154200 ML-430160) AND ABOVE -
5132-96319M TUBE, WATER (SHORT)TUBE, WATER (SHORT)
-
5132-96320M TUBE, WATER (LONG)TUBE, WATER (LONG)
-
5226-80397M SEALSEAL
-
5317-17554M PIN, DRIVEPIN, DRIVE
-
54859931 NUT, PROPELLERNUT, PROPELLER
-
5518-82132M PIN, COTTERPIN, COTTER
-
5696321M HOUSING, BEARING (LONG)HOUSING, BEARING (LONG)
-
5723-96322M BUSHING, DRIVE SHAFT (LONG)BUSHING, DRIVE SHAFT (LONG)
-
5853-96323M SNAP RING (LONG)SNAP RING (LONG)
-
5910-83108M SCREW (LONG)SCREW (LONG)
-
6012-82211M WASHER (LONG)WASHER (LONG)
-
6027-96324M LOWER UNIT CASKET KIT
REPLACEMENT PARTSLOWER UNIT CASKET KIT
REPLACEMENT PARTS -
6096325T WATER PUMP REPAIR KIT
REPLACEMENT PARTSWATER PUMP REPAIR KIT
REPLACEMENT PARTS -
6096326M CHROME PUMP KIT
REPLACEMENT PARTSCHROME PUMP KIT
REPLACEMENT PARTS
