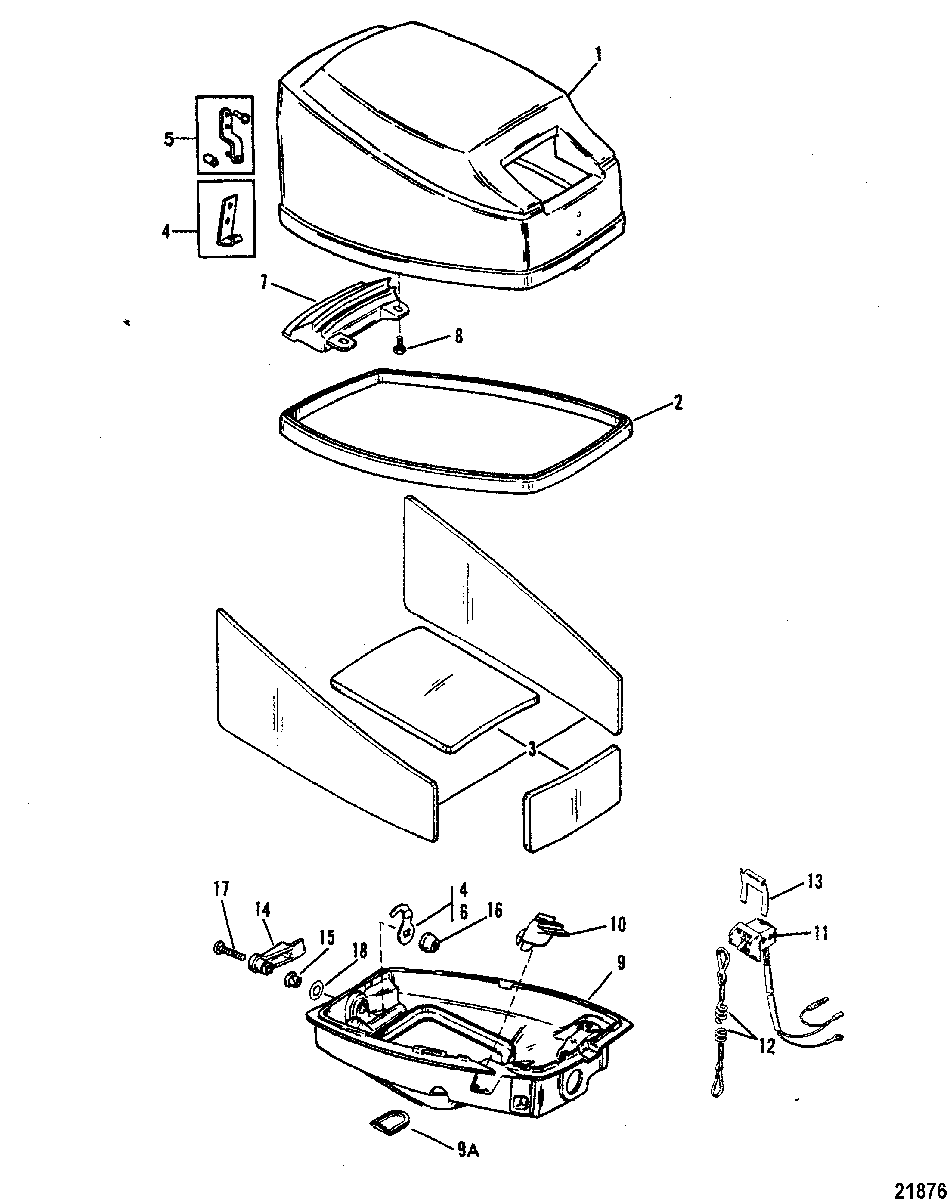

COWLS для Mariner - 6 0A197112 THRU 0D280999
-
№АртикулНазвание
-
12191-9420T10 TOP COWL ASSEMBLY (BLACK)TOP COWL ASSEMBLY (BLACK)
-
12191-8M0094069 TOP COWL ASSEMBLY (GRAY)TOP COWL ASSEMBLY (GRAY)
-
28M0043151 SEALSEAL
-
313691A02 SOUND BLANKET KITSOUND BLANKET KIT
-
416471A1 LATCH, CowlLATCH, Cowl
-
5817104A3 LATCH ASSEMBLY, CowlLATCH ASSEMBLY, Cowl
-
6180402 LATCH HOOKLATCH HOOK
-
711354 SHIELD, REAR (BLACK)SHIELD, REAR (BLACK)
-
712873T SHIELD, REAR (GRAY)SHIELD, REAR (GRAY)
-
810-400018 SCREW, (M5 x 12), REAR SHIELDSCREW, (M5 x 12), REAR SHIELD
-
92192-9204A1 BOTTOM COWL (BLACK)BOTTOM COWL (BLACK)
-
92192-9204A2 BOTTOM COWL (GRAY)BOTTOM COWL (GRAY)
-
9A15061001 PLUGPLUG
-
1012154 PLUG, BOTTOM COWL (MANUAL)PLUG, BOTTOM COWL (MANUAL)
-
10121532 GROMMET, Bottom Cowl (ELECTRIC)GROMMET, Bottom Cowl (ELECTRIC)
-
1187-11083A6 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
128M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
138M0032846 RETAINER, Brass, STOP SWITCHRETAINER, Brass, STOP SWITCH
-
1444461A1 LEVER, Cowl LatchLEVER, Cowl Latch
-
1523-76470 BUSHING, COWL LATCH LEVEERBUSHING, COWL LATCH LEVEER
-
1611394 SPACER, LATCHSPACER, LATCH
-
1710-40019130 SCREW, (M6 x 30), LATCH AND LEVERSCREW, (M6 x 30), LATCH AND LEVER
-
1710-40019131 SCREW, (M6 x 35), LATCH AND LEVERSCREW, (M6 x 35), LATCH AND LEVER
-
1813-69708 WAVE WASHER, LATCH AND LEVER SCREWWAVE WASHER, LATCH AND LEVER SCREW
