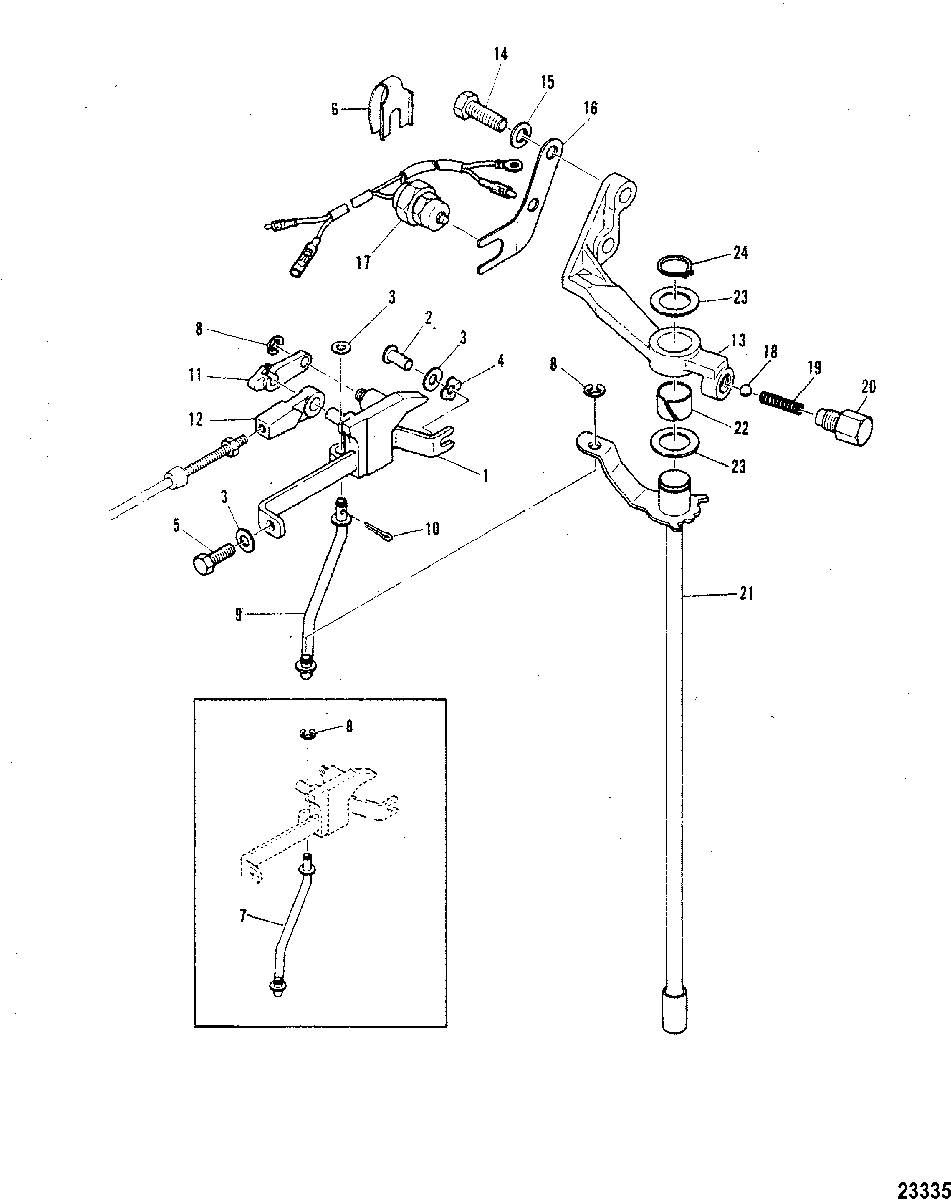

GEAR SHIFT LINKAGE для Mariner - 60 (2 CYL.) EL-675-30101 THRU EL-675-304180
-
№АртикулНазвание
-
198919M BRACKET, SHIFTBRACKET, SHIFT
-
217-82137M PIN, CLEVISPIN, CLEVIS
-
312-82214M WASHER, LOCK
SN# S-675-00526/L-675-33576 & UpWASHER, LOCK
SN# S-675-00526/L-675-33576 & Up -
312-82214M WASHER
SN# S-675-00525/L-675-33575 & BelowWASHER
SN# S-675-00525/L-675-33575 & Below -
413-81866M WASHER, WAVEWASHER, WAVE
-
510-82423M BOLTBOLT
-
681530M PLATEPLATE
-
781407M LEVER, SHIFT ROD
SN# S-675-00525/L-675-33575 & BelowLEVER, SHIFT ROD
SN# S-675-00525/L-675-33575 & Below -
853-82330M RING, Snap
SN# S-675-00525/L-675-33575 & BelowRING, Snap
SN# S-675-00525/L-675-33575 & Below -
853-82330M RING, Snap
SN# S-675-00526/L-675-33576 & UpRING, Snap
SN# S-675-00526/L-675-33576 & Up -
984209M LEVER, SHIFT ROD
SN# S-675-00526/L-675-33576 & UpLEVER, SHIFT ROD
SN# S-675-00526/L-675-33576 & Up -
1018-43089M PIN, COTTER
SN# S-675-00526/L-675-33576 & UpPIN, COTTER
SN# S-675-00526/L-675-33576 & Up -
1192657M CAP, CLEVISCAP, CLEVIS
-
1281480M CLEVIS, SHIFT CONTROL CABLECLEVIS, SHIFT CONTROL CABLE
-
1382556M BRACKET, SHIFT RODBRACKET, SHIFT ROD
-
1410-82441M BOLTBOLT
-
1513-82215M WASHER, LOCKWASHER, LOCK
-
1681529M STAY, NEUTRAL SWITCHSTAY, NEUTRAL SWITCH
-
1787-95631001 NUETRAL SWITCHNUETRAL SWITCH
-
1882346M BALL, DETENTBALL, DETENT
-
1924-82081M SPRINGSPRING
-
2023-80635M RETAINER, SPRINGRETAINER, SPRING
-
2181405M SHIFT ROD, UPPER - SHORT SHAFTSHIFT ROD, UPPER - SHORT SHAFT
-
2192656M SHIFT ROD, UPPER - LONG SHAFTSHIFT ROD, UPPER - LONG SHAFT
-
2223-81953M BUSHINGBUSHING
-
2312-81858M SPACER, SHIFT RODSPACER, SHIFT ROD
-
2453-19259M CIRCLIPCIRCLIP
