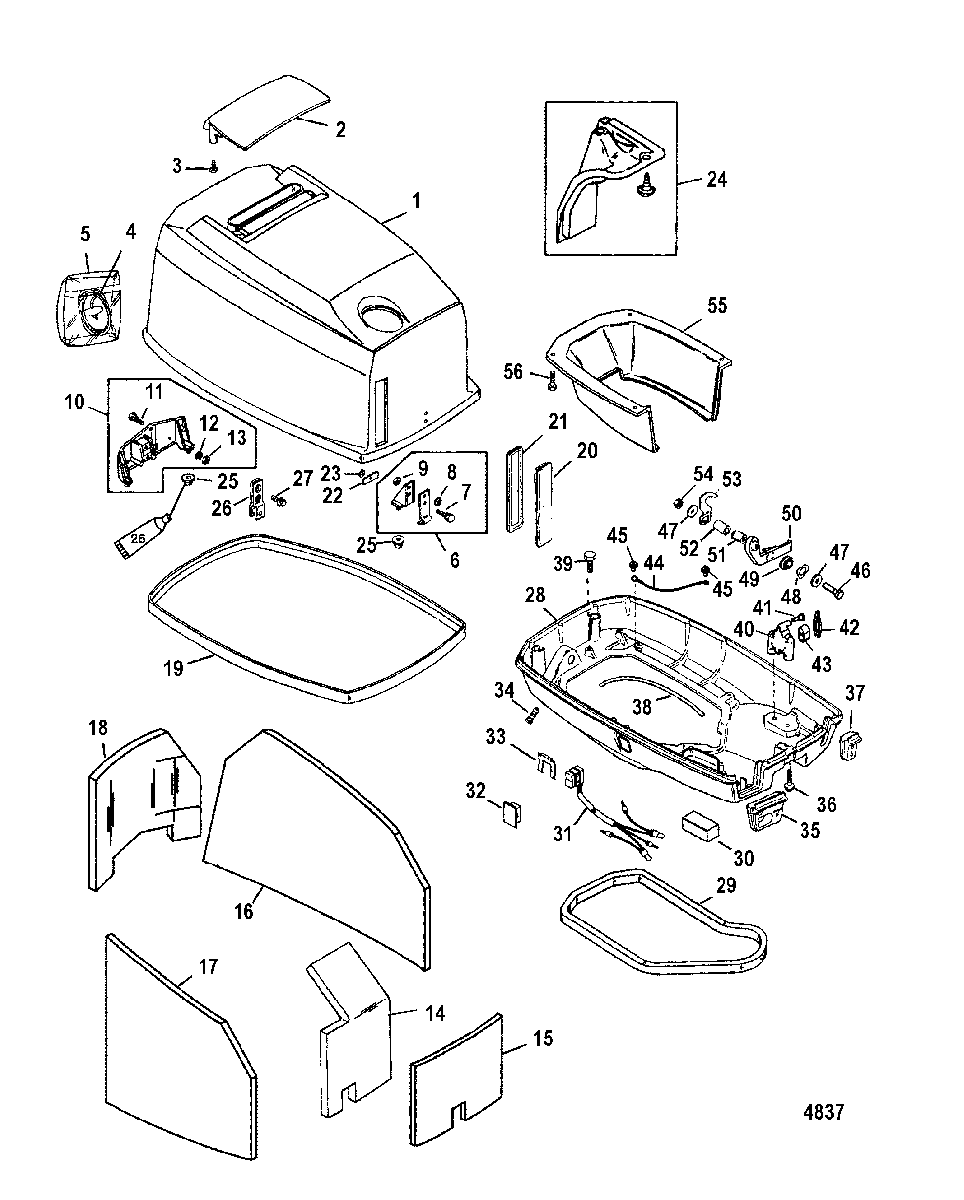

Cowling для Mariner - 60 (3 CYL.) BIGFOOT 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1100-8M0107016 TOP COWL ASSEMBLY, Without Decals
ELECTRIC-BLACKTOP COWL ASSEMBLY, Without Decals
ELECTRIC-BLACK -
14000-813010T14 TOP COWL ASSEMBLY, Without Decals
ELECTRIC-SILVERTOP COWL ASSEMBLY, Without Decals
ELECTRIC-SILVER -
1100-8M0107142 TOP COWL ASSEMBLY, Without Decals
MANUAL-BLACKTOP COWL ASSEMBLY, Without Decals
MANUAL-BLACK -
14005-816534T14 TOP COWL ASSEMBLY, Without Decals
MANUAL-SILVERTOP COWL ASSEMBLY, Without Decals
MANUAL-SILVER -
2824666 SHIELD, Air InletSHIELD, Air Inlet
-
310-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
447341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
-
5NSS NOT SOLD SEPARATE, EnvelopeNOT SOLD SEPARATE, Envelope
-
6813548A3 BRACKET, Cowl Support - BlackBRACKET, Cowl Support - Black
-
6813548A3 BRACKET, Cowl Support - SilverBRACKET, Cowl Support - Silver
-
710-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
813-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
911-8237515 NUT, (M4)NUT, (M4)
-
10813549A2 BRACKET, Cowl Support, RearBRACKET, Cowl Support, Rear
-
1110-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
1213-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1311-8237515 NUT, (M4)NUT, (M4)
-
14814336A02 SOUND BLANKET KITSOUND BLANKET KIT
-
15NSS NOT SOLD SEPARATE, Sound Blanket-Front-ManualNOT SOLD SEPARATE, Sound Blanket-Front-Manual
-
16NSS NOT SOLD SEPARATE, Sound Blanket-Side-StarboardNOT SOLD SEPARATE, Sound Blanket-Side-Starboard
-
17NSS NOT SOLD SEPARATE, Sound Blanket-Side-PortNOT SOLD SEPARATE, Sound Blanket-Side-Port
-
18NSS NOT SOLD SEPARATE, Sound Blanket-RearNOT SOLD SEPARATE, Sound Blanket-Rear
-
198M0043150 SEALSEAL
-
20813504A1 GAUGE KIT, Oil Level
ELECTRICGAUGE KIT, Oil Level
ELECTRIC -
21813505 GROMMET
ELECTRICGROMMET
ELECTRIC -
22113171 RETAINER
ELECTRICRETAINER
ELECTRIC -
2311-113161 NUT
ELECTRICNUT
ELECTRIC -
24823593A1 DEFLECTOR KIT, AirDEFLECTOR KIT, Air
-
25813546003 MOUNTMOUNT
-
26893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
2710-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
282197-812512A8 BOTTOM COWL
BLACKBOTTOM COWL
BLACK -
282197-812512A9 BOTTOM COWL ASSEMBLY
GRAYBOTTOM COWL ASSEMBLY
GRAY -
298M0043162 SEALSEAL
-
308M0043169 BUMPERBUMPER
-
3187-8M0042301 SWITCH
POWER TRIMSWITCH
POWER TRIM -
32812830T01 PLUG
NON-POWER TRIMPLUG
NON-POWER TRIM -
338M0032848 RETAINERRETAINER
-
3422-813613 FITTINGFITTING
-
35813606003 SEALSEAL
-
3610-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
37813605003 SEALSEAL
-
3832-7568058 HOSE, (15.00 Inches)HOSE, (15.00 Inches)
-
3910-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4019812T03 BRACKET, Cable RetainerBRACKET, Cable Retainer
-
4110-42975 DRIVE SCREWDRIVE SCREW
-
4298889 LATCHLATCH
-
4339519 CUPCUP
-
4484-88807A28 CABLE ASSEMBLYCABLE ASSEMBLY
-
4510-878607 SCREW, (#10-16 x .380)SCREW, (#10-16 x .380)
-
4610-4000335 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
4712-35280 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
4813-37642 WAVE WASHERWAVE WASHER
-
4923-19428 BUSHINGBUSHING
-
50813547F1 LEVER, Cowl Latch
BLACKLEVER, Cowl Latch
BLACK -
50813547F1 LEVER, Cowl Latch
GRAYLEVER, Cowl Latch
GRAY -
51826354A1 BUSHING KIT, Cowl LatchBUSHING KIT, Cowl Latch
-
52NSS NOT SOLD SEPARATE, BushingNOT SOLD SEPARATE, Bushing
-
53813604 LATCH CAMLATCH CAM
-
5411-401386 NUT, (M6)NUT, (M6)
-
55812717T1 TRIM COVER
BLACKTRIM COVER
BLACK -
55812717T1 TRIM COVER
GRAYTRIM COVER
GRAY -
5610-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
