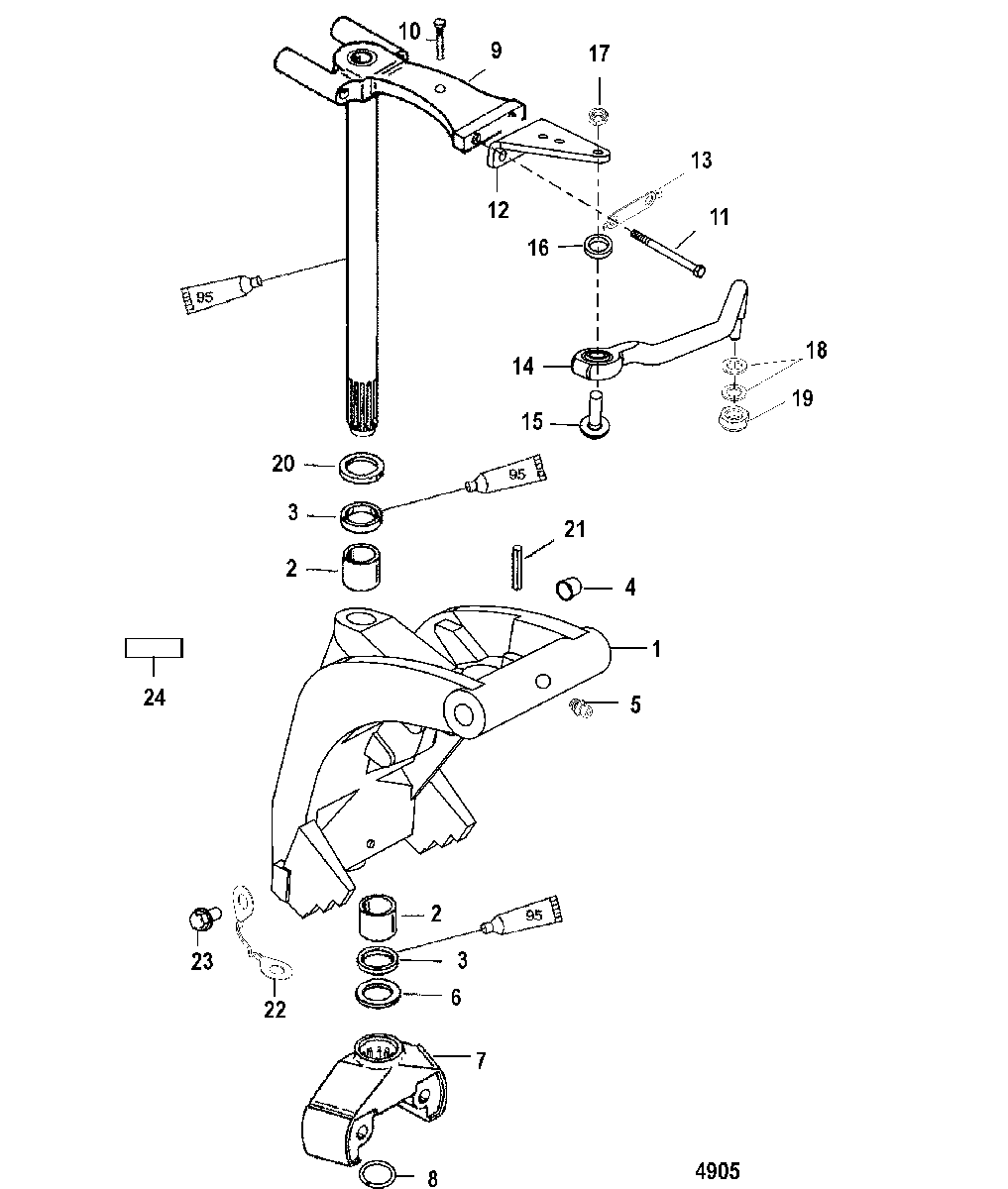

Swivel Bracket для Mariner - 60 (3 CYL.) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
13400-8M0084208 SWIVEL BRACKET
(BLACK) SHORTSWIVEL BRACKET
(BLACK) SHORT -
13400-8M0084208 SWIVEL BRACKET ASSEMBLY
(GRAY) SHORTSWIVEL BRACKET ASSEMBLY
(GRAY) SHORT -
13417-822863A1 SWIVEL BRACKET
(BLACK) LONGSWIVEL BRACKET
(BLACK) LONG -
13417-822863A2 SWIVEL BRACKET ASSEMBLY
(GRAY) LONGSWIVEL BRACKET ASSEMBLY
(GRAY) LONG -
223-821124 BEARINGBEARING
-
326-32911 SEAL, OilSEAL, Oil
-
423-19606 BEARINGBEARING
-
522-74036 FITTING, GreaseFITTING, Grease
-
612-52865 WASHERWASHER
-
719654T1 YOKE, Bottom
(BLACK)YOKE, Bottom
(BLACK) -
719654T1 YOKE, Bottom
(GRAY)YOKE, Bottom
(GRAY) -
853-77415 RETAINING RINGRETAINING RING
-
917-812897A19 SWIVEL PIN ASSEMBLY
(BLACK) SHORT- MANUALSWIVEL PIN ASSEMBLY
(BLACK) SHORT- MANUAL -
917-812897A19 SWIVEL PIN ASSEMBLY
(GRAY) SHORT- MANUALSWIVEL PIN ASSEMBLY
(GRAY) SHORT- MANUAL -
917-812896A22 SWIVEL PIN ASSEMBLY
(BLACK) LONGSWIVEL PIN ASSEMBLY
(BLACK) LONG -
917-812896A23 SWIVEL PIN ASSEMBLY
(GRAY) LONGSWIVEL PIN ASSEMBLY
(GRAY) LONG -
1017-8219871 PIN, Co-PilotPIN, Co-Pilot
-
11893696 BRACKET
50/60BRACKET
50/60 -
1214-8M0009820 TAB WASHER
50/60TAB WASHER
50/60 -
1310-4000377 SCREW, (M10 x 30)
50/60SCREW, (M10 x 30)
50/60 -
1419608A14 LINK ROD (STARBOARD)
50/60LINK ROD (STARBOARD)
50/60 -
1419609A6 LINK ROD (PORT)
50/60LINK ROD (PORT)
50/60 -
1510-823919 SCREW, (.375-24 x 1.500)
50/60SCREW, (.375-24 x 1.500)
50/60 -
1612-8M0109680 WASHER, (.390 x .546 x .12)
50/60WASHER, (.390 x .546 x .12)
50/60 -
1711-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
1812-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
1911-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
2012-52865 WASHERWASHER
-
2117-823876 PIN
(HANDLE)PIN
(HANDLE) -
2288238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
2310-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
24NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
