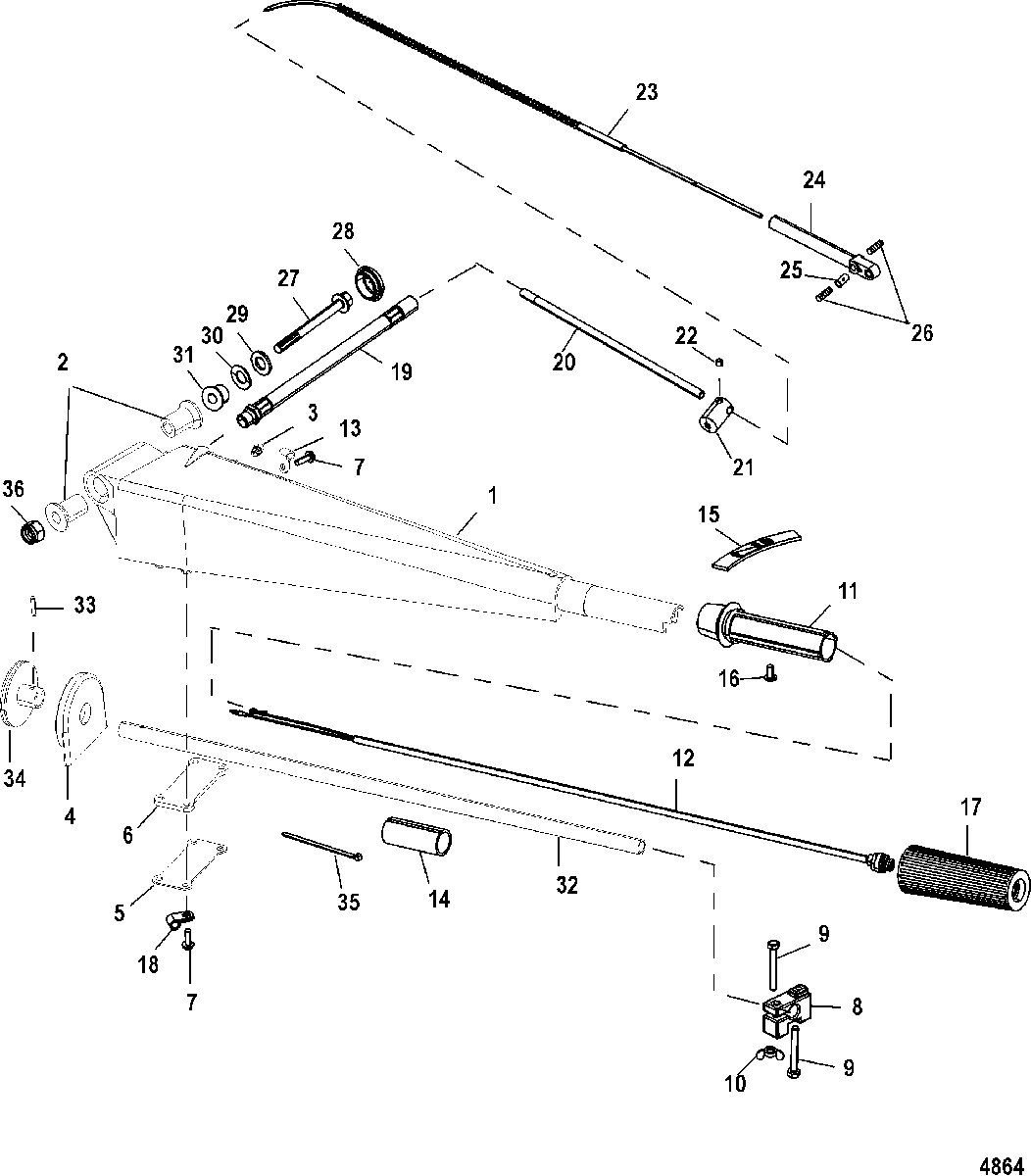

Steering Handle для Mariner - 60 (3 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
112020A3 HANDLE ASSEMBLY, Steering Arm
(Black)HANDLE ASSEMBLY, Steering Arm
(Black) -
223-42992T02 BUSHINGBUSHING
-
322-74036 FITTING, GreaseFITTING, Grease
-
448414 HOUSINGHOUSING
-
548519 PLATEPLATE
-
627-48518 GASKETGASKET
-
710-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
710-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
854-889729 CLAMPCLAMP
-
910-40007112 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1011-816874 WING NUT, (#10-32)WING NUT, (#10-32)
-
1187-823609A15 SWITCH KIT, Stop - Throttle HandleSWITCH KIT, Stop - Throttle Handle
-
1287-8M0104612 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
1354-648551 CLAMPCLAMP
-
14NSS NOT SOLD SEPARATE, InsulatorNOT SOLD SEPARATE, Insulator
-
15NSS NOT SOLD SEPARATE, Decal-ThrottleNOT SOLD SEPARATE, Decal-Throttle
-
1610-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1799589003 GRIPGRIP
-
1854-648552 CLIPCLIP
-
-12019A1 CABLE KIT, ThrottleCABLE KIT, Throttle
-
198885242 CONDUITCONDUIT
-
208M0026078 GUIDE TUBEGUIDE TUBE
-
2189578 BARRELBARREL
-
2210-824081 SET SCREW, (#10-32)SET SCREW, (#10-32)
-
2312019 CABLE ASSEMBLYCABLE ASSEMBLY
-
2443433 GUIDEGUIDE
-
2520007 ANCHORANCHOR
-
2610-20518 SET SCREW, (#8-32)SET SCREW, (#8-32)
-
2710-823567105 SCREW, (M10 x 105) Hex Flange - Stainless SteelSCREW, (M10 x 105) Hex Flange - Stainless Steel
-
2848416T CAPCAP
-
2912-4002319 WASHERWASHER
-
3012-12024 WASHER, (.402 x .787 x .039 Bellevi)WASHER, (.402 x .787 x .039 Bellevi)
-
3123-146011 SPACERSPACER
-
3212018A4 TUBE ASSEMBLY, ThrottleTUBE ASSEMBLY, Throttle
-
33NSS NOT SOLD SEPARATE, Roll PinNOT SOLD SEPARATE, Roll Pin
-
34NSS NOT SOLD SEPARATE, Drive WheelNOT SOLD SEPARATE, Drive Wheel
-
3554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3611-40140 NUT, (M10)NUT, (M10)
