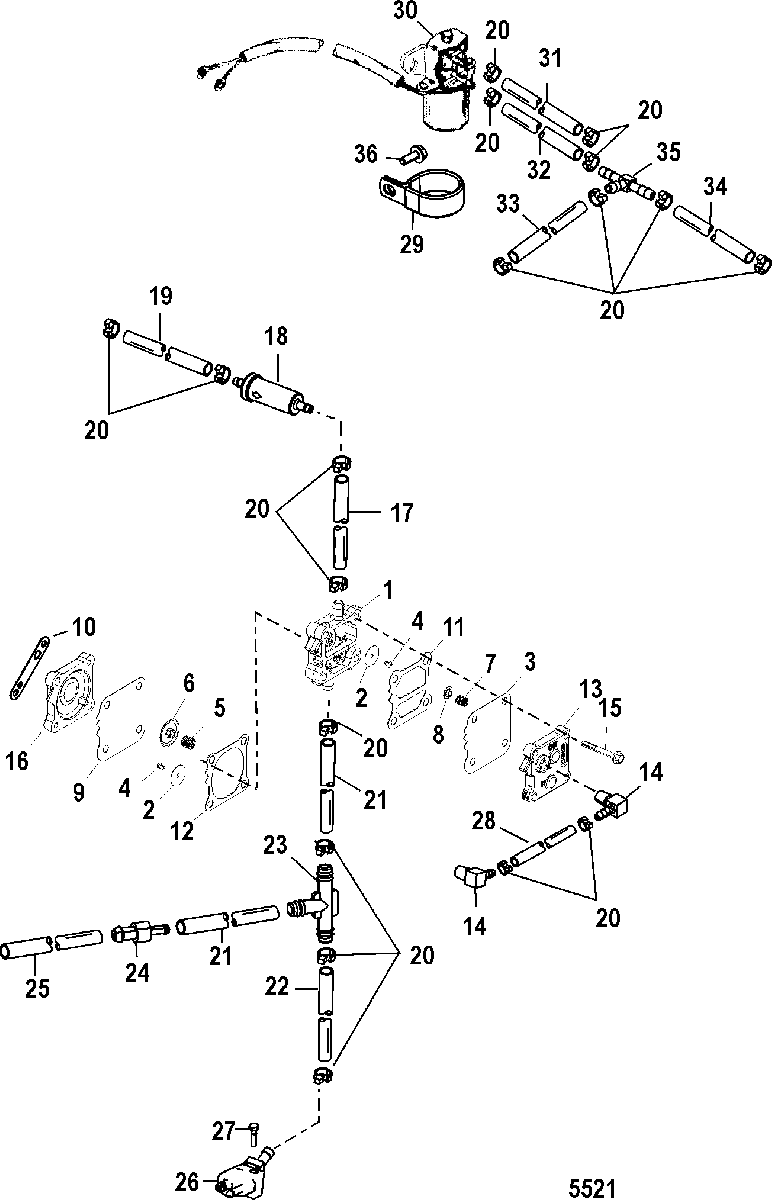

Fuel Pump, Electric для Mariner - 60 (3 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
-14360A78 PUMP KIT, FuelPUMP KIT, Fuel
-
1NSS NOT SOLD SEPARATE, Fuel PumpNOT SOLD SEPARATE, Fuel Pump
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, Diaphragm KitNOT SOLD SEPARATE, Diaphragm Kit
-
4NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
5NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
6NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
1027-987691 GASKETGASKET
-
11NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
12NSS NOT SOLD SEPARATE, Gsket-PulseNOT SOLD SEPARATE, Gsket-Pulse
-
13987752 PLATEPLATE
-
1422-433351 CONNECTOR, 90 Degree - With Vibraseal
(To Crankcase)CONNECTOR, 90 Degree - With Vibraseal
(To Crankcase) -
1510-82104540 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1510-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
16144303 BASEBASE
-
1732-831949 HOSEHOSE
-
1835-816296Q2 FILTER, FuelFILTER, Fuel
-
1932-830761 LINE, Fuel
(To top Carburetor)LINE, Fuel
(To top Carburetor) -
2054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2132-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.25 Inch Length)TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.25 Inch Length)
-
2232-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 14.25 Inch Length)TUBING, (.312) (70.00 Inches Bulk) (Cut to 14.25 Inch Length)
-
2322-818993 CONNECTOR, TeeCONNECTOR, Tee
-
2422-8189941 CHECK VALVECHECK VALVE
-
2532-82381335 TUBING, (15.00 Inches Bulk) (Cut to 1.50 Inch Length)TUBING, (15.00 Inches Bulk) (Cut to 1.50 Inch Length)
-
2622-816856T01 CONNECTOR ASSEMBLY, FuelCONNECTOR ASSEMBLY, Fuel
-
2710-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
2832-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 4.50 Inch Length)HOSE, (.187) (26.00 Inches Bulk) (Cut to 4.50 Inch Length)
-
2954-633003 CLAMPCLAMP
-
3089-819503A5 SOLENOID KIT, Enrichner ValveSOLENOID KIT, Enrichner Valve
-
3132-9912688 TUBING, (36.00 Inches Bulk) (Cut to 8.00 Inch Length)
(To Fitting on Attenuator Plate)TUBING, (36.00 Inches Bulk) (Cut to 8.00 Inch Length)
(To Fitting on Attenuator Plate) -
3232-9912688 TUBING, (36.00 Inches Bulk) (Cut to 4.00 Inch Length)TUBING, (36.00 Inches Bulk) (Cut to 4.00 Inch Length)
-
3332-892024122 TUBING, (240.00 Inches Bulk) (Cut to 14.00 Inch Length)
(To Oil Pump Fitting)TUBING, (240.00 Inches Bulk) (Cut to 14.00 Inch Length)
(To Oil Pump Fitting) -
3432-9912688 TUBING, (36.00 Inches Bulk) (Cut to 2.00 Inch Length)
(To Intake Manifold Fitting)TUBING, (36.00 Inches Bulk) (Cut to 2.00 Inch Length)
(To Intake Manifold Fitting) -
3522-59169003 FITTING, TeeFITTING, Tee
-
3610-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
-27-812867A97 GASKET SETGASKET SET
-
-852071T97 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
