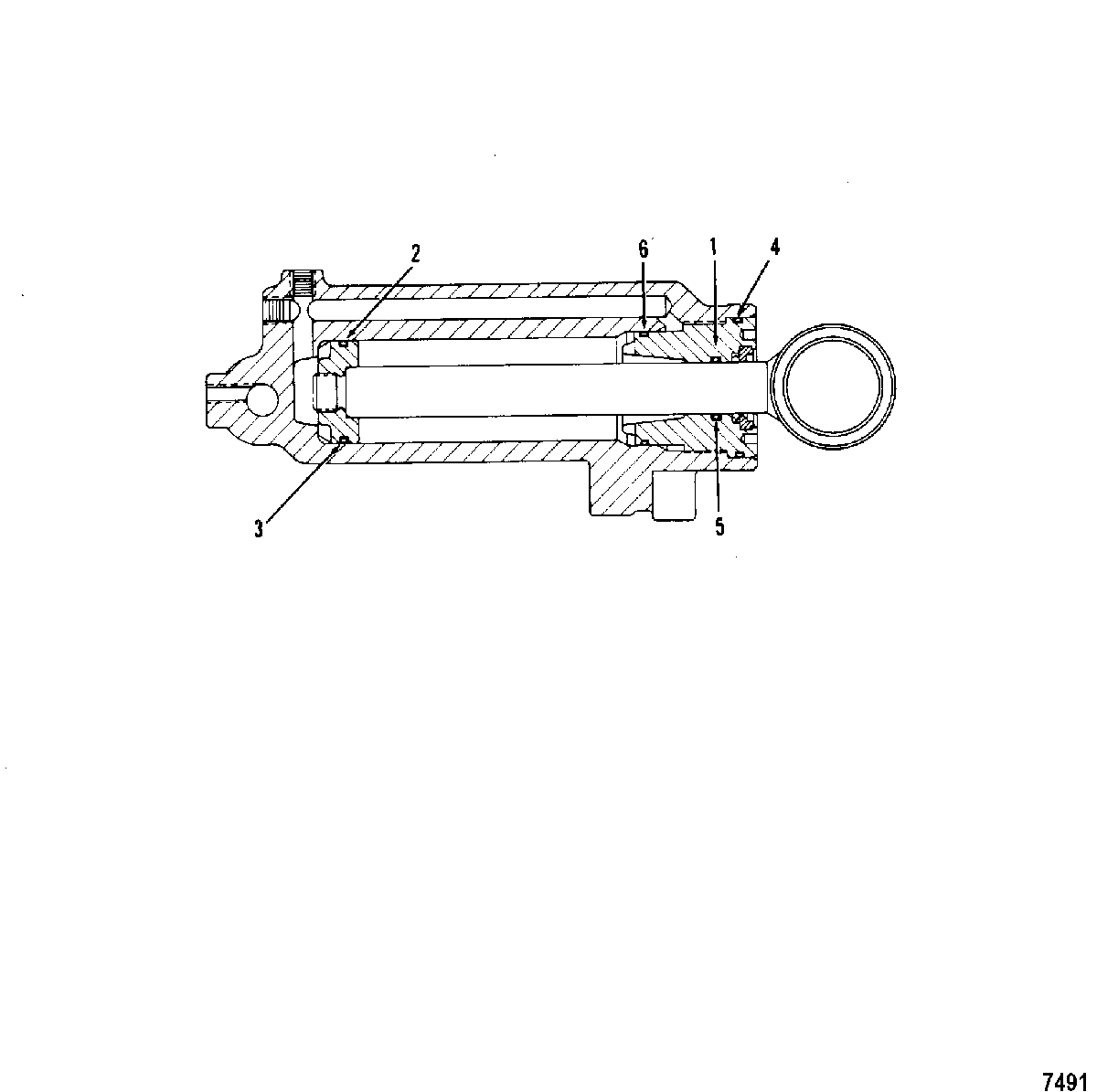

POWER TRIM CYLINDER REPAIR KITS для Mariner - 60 (3 CYL.) 6428681 THRU 0B122929
-
№АртикулНазвание
-
-92188A2 REPAIR KIT (SEE NOTE)REPAIR KIT (SEE NOTE)
-
1N.S.S. Not Sold Separate, Cylinder CapNot Sold Separate, Cylinder Cap
-
2N.S.S. Not Sold Separate, O-Ring (1-1/4" x 1-1/2" x 1/8")Not Sold Separate, O-Ring (1-1/4" x 1-1/2" x 1/8")
-
3N.S.S. Not Sold Separate, SpacerNot Sold Separate, Spacer
-
4N.S.S. Not Sold Separate, O-Ring (1-7/8" x 2-1/16" x 3/32")Not Sold Separate, O-Ring (1-7/8" x 2-1/16" x 3/32")
-
5N.S.S. Not Sold Separate, O-Ring (3/4" x 15/16" x 3/32")Not Sold Separate, O-Ring (3/4" x 15/16" x 3/32")
-
6N.S.S. Not Sold Separate, O-Ring (1-1/2" x 1-3/4" x 3/32")Not Sold Separate, O-Ring (1-1/2" x 1-3/4" x 3/32")
Все узлы модели:
- AUTO-BLEND
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP BRACKET ASSEMBLY
- COWL SUPPORT BRACKETS
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVESHAFT HOUSING ASSEMBLY
- EXHAUST AND MANIFOLD COVERS
- FLYWHEEL, SWITCH BOX, IGNITION COIL, STATOR
- FUEL PUMP, FUEL FILTER AND FUEL LINES
- GEAR HOUSING(DRIVESHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- HYDRAULIC PUMP ASSEMBLY(PLASTIC RESERVOIR)
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM COMPONENTS
- • POWER TRIM CYLINDER REPAIR KITS
- PROPELLERS(RIGHT HAND ROTATION)
- SHIFT LINKAGE AND EXHAUST PLATE
- STARTER MOTOR ASSEMBLY(BOSCH)
- STARTER MOTOR ASSEMBLY(PRESTOLITE)
- STARTER MOTOR, STARTER SOLENOID, RECTIFIER
- SWIVEL BRACKET AND REVERSE LOCK
- Throttle Linkage
- TRIM CYLINDERS AND HYDRAULIC HOSES
