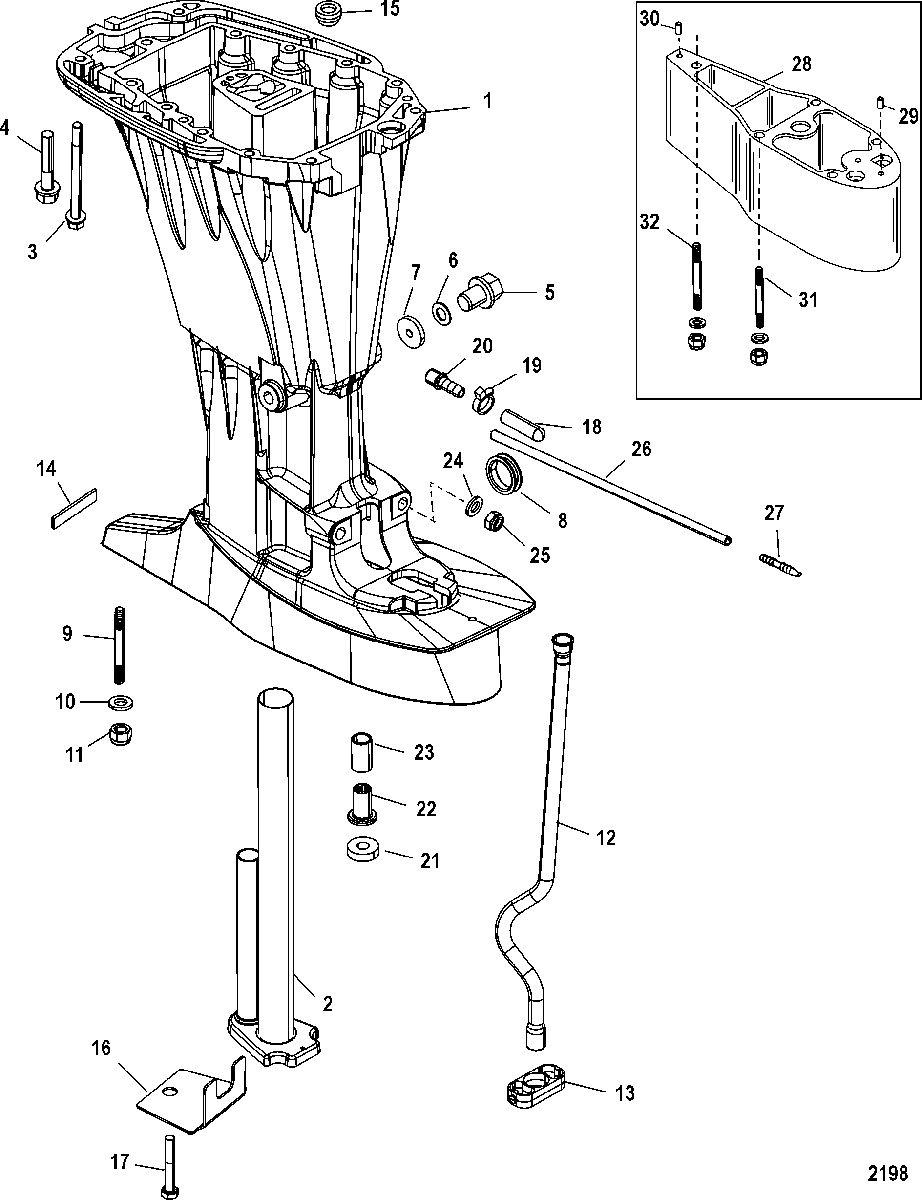

Driveshaft Housing для Mariner - 60 EFI (4 CYL.)(4-STROKE) 0P153500 THRU 0P400999
-
№АртикулНазвание
-
11500-8M0118178 HOUSING, DriveshaftHOUSING, Driveshaft
-
2825220T06 PIPE, ExhaustPIPE, Exhaust
-
310-824459110 SCREW, (M8 x 110) Stainless SteelSCREW, (M8 x 110) Stainless Steel
-
410-88960845 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
58288181 PLUG, DrainPLUG, Drain
-
627-828816 GASKETGASKET
-
7826276 BUMPERBUMPER
-
825-8M4504002 GROMMET
SN# USA-0T979999/BEL-0P325499 & BelowGROMMET
SN# USA-0T979999/BEL-0P325499 & Below -
825-8M4504002 GROMMET
SN# USA-0T980000/BEL-0P325500 & UpGROMMET
SN# USA-0T980000/BEL-0P325500 & Up -
916-823984 STUD, (M10 x 50)
(Non-Bigfoot)STUD, (M10 x 50)
(Non-Bigfoot) -
916-903501 STUD, (M10 x 100)
(Bigfoot-Long)STUD, (M10 x 100)
(Bigfoot-Long) -
1012-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
1111-40140 NUT, (M10)NUT, (M10)
-
1232-897971A01 TUBE, Water
(Long)TUBE, Water
(Long) -
1232-897971A01 TUBE, Water
(X-Long)TUBE, Water
(X-Long) -
1354-828529 GUIDEGUIDE
-
148M0043364 BUMPERBUMPER
-
1542941001 SEAL, Water Tube
SN# USA-0T979999/BEL-0P325499 & BelowSEAL, Water Tube
SN# USA-0T979999/BEL-0P325499 & Below -
1542941001 SEAL, Water Tube
SN# USA-0T980000/BEL-0P325500 & UpSEAL, Water Tube
SN# USA-0T980000/BEL-0P325500 & Up -
168M4503628 PLATEPLATE
-
1710-1993325 SCREW, (M10 x 25 MM)SCREW, (M10 x 25 MM)
-
1819-892286 CAP
(Design II)CAP
(Design II) -
1954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2022-13035002 FITTING
SN# USA-0T979999/BEL-0P325499 & BelowFITTING
SN# USA-0T979999/BEL-0P325499 & Below -
2022-13035002 FITTING
SN# USA-0T980000/BEL-0P325500 & UpFITTING
SN# USA-0T980000/BEL-0P325500 & Up -
2123-813745 SPACERSPACER
-
2243585 COUPLINGCOUPLING
-
2323-855623 BUSHINGBUSHING
-
2412-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
2511-40140 NUT, (M10)NUT, (M10)
-
2622-85822A7 SPEEDOMETER PICK UP
(Design I)SPEEDOMETER PICK UP
(Design I) -
2722-85822T CONNECTOR, Straight
(Design I)CONNECTOR, Straight
(Design I) -
2812092A3 SPACER KIT
(X-Long)SPACER KIT
(X-Long) -
2917-8M0084244 PIN, Dowel - With Hole (.375 x .625) , Front (W/Hole)
(X-Long)PIN, Dowel - With Hole (.375 x .625) , Front (W/Hole)
(X-Long) -
3017-43044 PIN, Dowel - Without Hole (.375 x .625), Rear
(X-Long)PIN, Dowel - Without Hole (.375 x .625), Rear
(X-Long) -
3116-903503 STUD, (M10 x 190)
(X-Long)STUD, (M10 x 190)
(X-Long) -
3216-903502 STUD, (M10 x 227)
(X-Long)STUD, (M10 x 227)
(X-Long)
