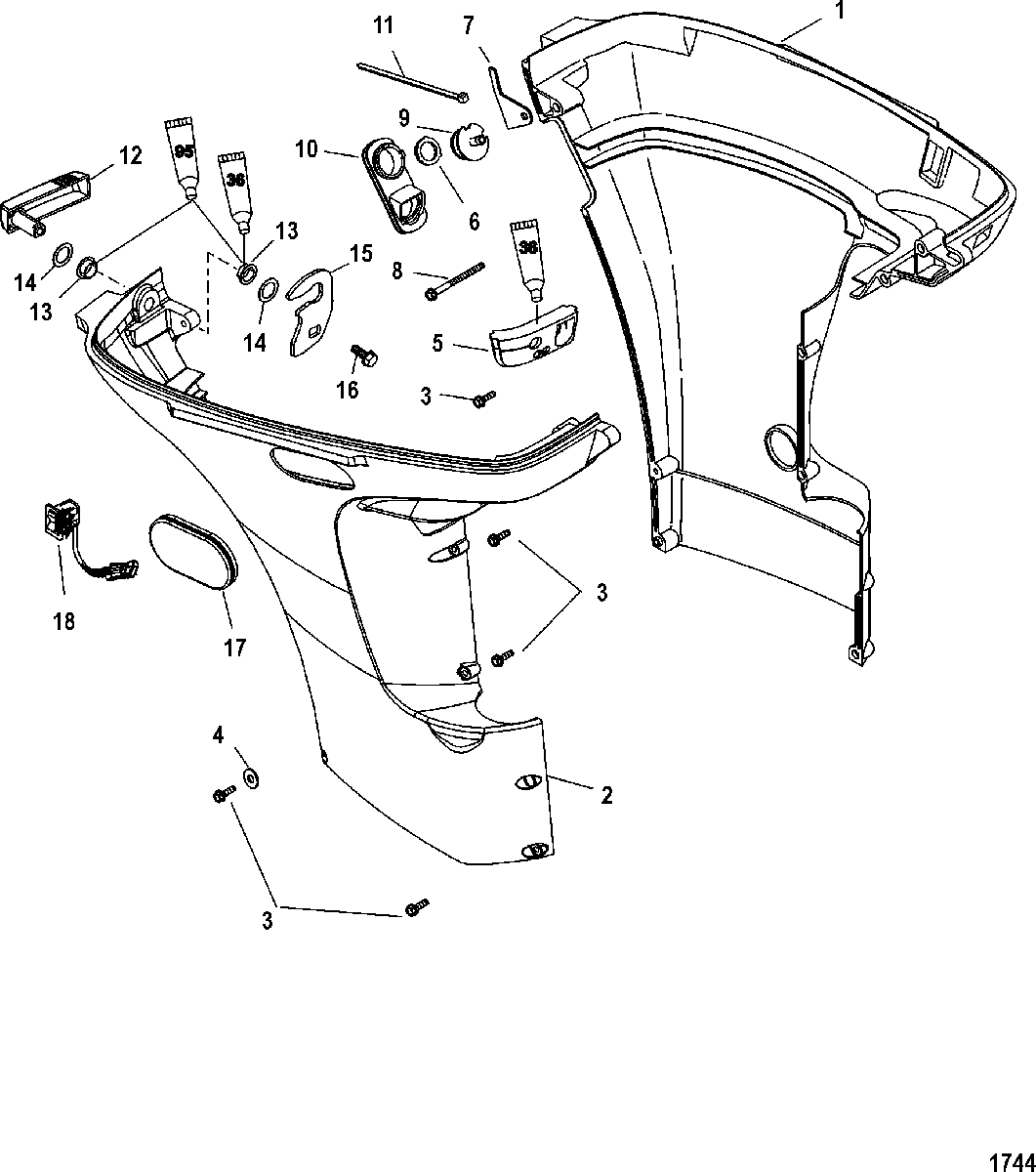

Bottom Cowl для Mariner - 60 EFI (4 CYL.)(4-STROKE) 0P401000 THRU 0P515896
-
№АртикулНазвание
-
14020-826277T1 BOTTOM COWL (Port)BOTTOM COWL (Port)
-
24020-826278T7 BOTTOM COWL (Starboard)BOTTOM COWL (Starboard)
-
310-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
5825238002 SEALSEAL
-
612-855576 WASHERWASHER
-
727-855627 GASKETGASKET
-
810-82684460 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
922-827948 FITTINGFITTING
-
10826273001 BOOTBOOT
-
1154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
12825782F1 LEVER, Cowl LatchLEVER, Cowl Latch
-
1323-812707 BUSHINGBUSHING
-
1413-12134 WASHER, WaveWASHER, Wave
-
15893766 HOOK, LatchHOOK, Latch
-
1610-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1725-883307 GROMMETGROMMET
-
1887-8M0042300 SWITCH, TrimSWITCH, Trim
