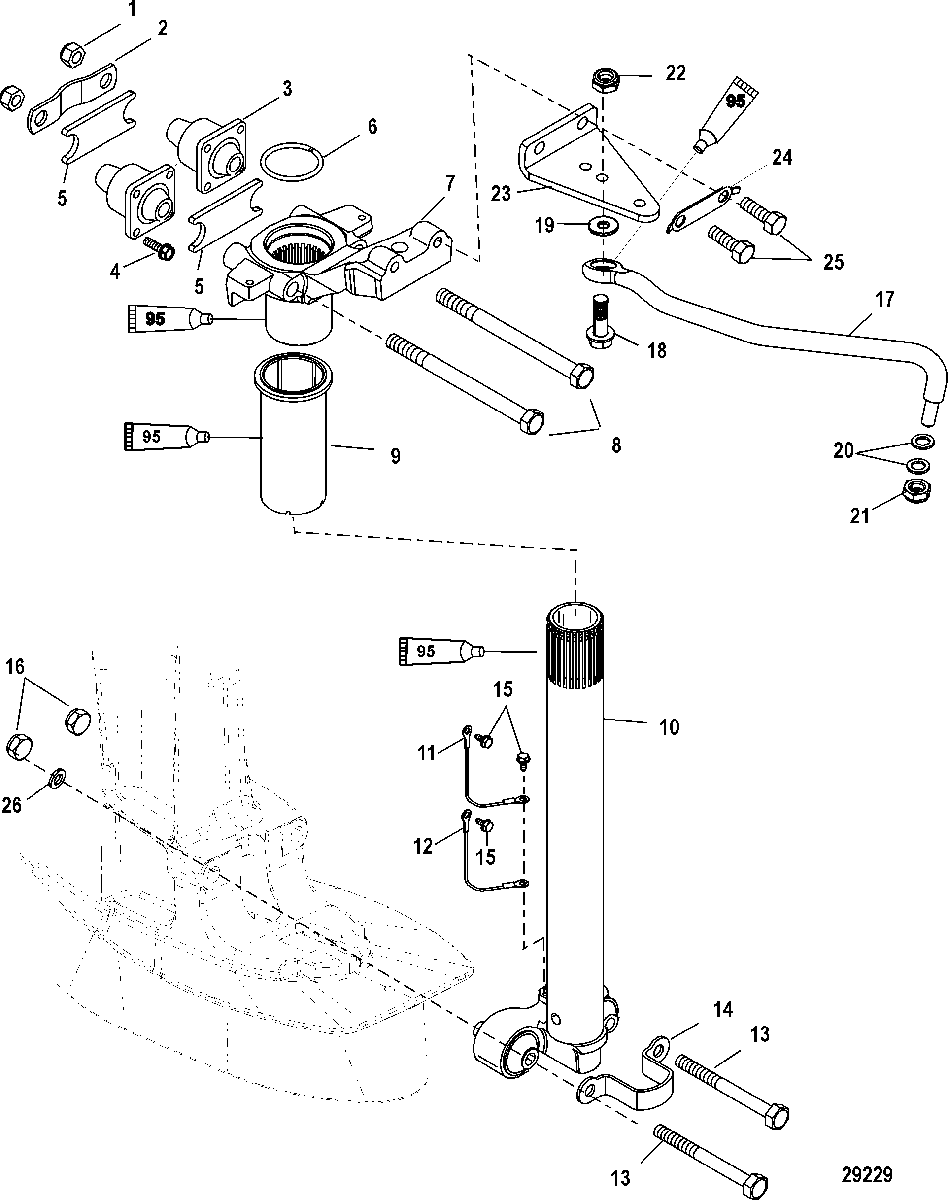

Steering Arm для Mariner - 60 EFI (4 CYL.)(4-STROKE) 1C050252 & Up
-
№АртикулНазвание
-
111-896963 NUT, (M12)NUT, (M12)
-
2893773002 STRAP, Upper MountSTRAP, Upper Mount
-
3893655T MOUNT, UpperMOUNT, Upper
-
410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
5826658 BUMPERBUMPER
-
653-89531 RING, RetainingRING, Retaining
-
78M0118183 ARM, SteeringARM, Steering
-
810-898835001 SCREW, (M12 x 154)SCREW, (M12 x 154)
-
923-8279971 SPACER
LongSPACER
Long -
923-8279973 SPACER
JetSPACER
Jet -
10893590T04 SWIVEL TUBE
LongSWIVEL TUBE
Long -
10850175T03 SWIVEL TUBE ASSEMBLY, Short
JetSWIVEL TUBE ASSEMBLY, Short
Jet -
1184-88238T01 CABLE ASSEMBLYCABLE ASSEMBLY
-
1288238A13 CABLE ASSEMBLY, Ground
LongCABLE ASSEMBLY, Ground
Long -
1288238A13 CABLE ASSEMBLY, Ground
JetCABLE ASSEMBLY, Ground
Jet -
1310-8M0103829 SCREW, (M10 x 120)SCREW, (M10 x 120)
-
14893703 STRAP, Lower MountSTRAP, Lower Mount
-
1510-878607 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
1611-40140 NUT, (M10)NUT, (M10)
-
178M0026161 LINK ROD
Non HandleLINK ROD
Non Handle -
1810-823919 SCREW, (.375-24 x 1.500)
Non HandleSCREW, (.375-24 x 1.500)
Non Handle -
1912-8M0109680 WASHER, (.390 x .546 x .12)
Non HandleWASHER, (.390 x .546 x .12)
Non Handle -
2012-37828 WASHER, (.390 x .625 x .062) Stainless Steel
Non HandleWASHER, (.390 x .625 x .062) Stainless Steel
Non Handle -
2111-8M0042636 NUT, (.375-24) Brass
Non HandleNUT, (.375-24) Brass
Non Handle -
2211-8M0042636 NUT, (.375-24) Stainless Steel
Non HandleNUT, (.375-24) Stainless Steel
Non Handle -
23893696 BRACKET, Ride-Guide
Non HandleBRACKET, Ride-Guide
Non Handle -
2414-8M0009820 TAB WASHER
Non HandleTAB WASHER
Non Handle -
2414-8M0009820 TAB WASHER
JetTAB WASHER
Jet -
2510-4000377 SCREW, (M10 x 30)
Non HandleSCREW, (M10 x 30)
Non Handle -
2612-4002319 WASHERWASHER
