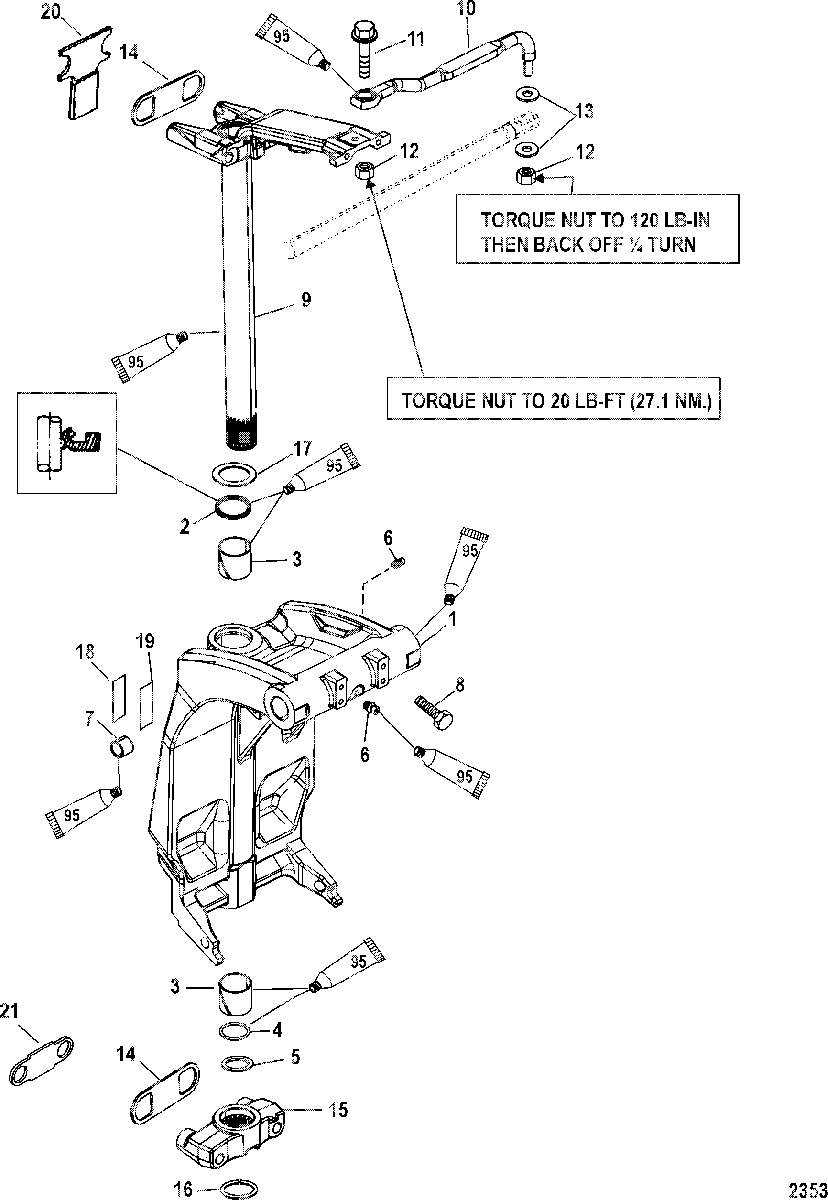

Swivel Bracket and Steering Arm для Mariner - 65 JET 0G760300 THRU 0T979999
-
№АртикулНазвание
-
11400-8M0107419 SWIVEL BRACKETSWIVEL BRACKET
-
226-87735 SEAL, Oil, LowerSEAL, Oil, Lower
-
323-818764 BUSHINGBUSHING
-
425-33504 O-RINGO-RING
-
523-816039 SPACERSPACER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
810-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
999661A35 SWIVEL PIN ASSEMBLYSWIVEL PIN ASSEMBLY
-
1092876A12 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
1110-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
1211-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
1312-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
148M0000519 BUMPER
SN# SN- USA 0T801000/ BEL 0P268000 & UpBUMPER
SN# SN- USA 0T801000/ BEL 0P268000 & Up -
1542961A06 YOKE ASSEMBLY, Bottom
SN# SN- USA 0T800999/ BEL 0P267999 & BelowYOKE ASSEMBLY, Bottom
SN# SN- USA 0T800999/ BEL 0P267999 & Below -
15881914T01 YOKE, Bottom
SN# SN- USA 0T801000/ BEL 0P268000 & UpYOKE, Bottom
SN# SN- USA 0T801000/ BEL 0P268000 & Up -
1653-67684 RING, RetainingRING, Retaining
-
1712-816432 THRUST WASHERTHRUST WASHER
-
18NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
19NSS NOT SOLD SEPARATE, Decal-Serial NumberNOT SOLD SEPARATE, Decal-Serial Number
-
2088882 BUMPER, Top Yoke
(LL)BUMPER, Top Yoke
(LL) -
2111288001 BUMPER, Bottom Yoke
(LL)BUMPER, Bottom Yoke
(LL)
