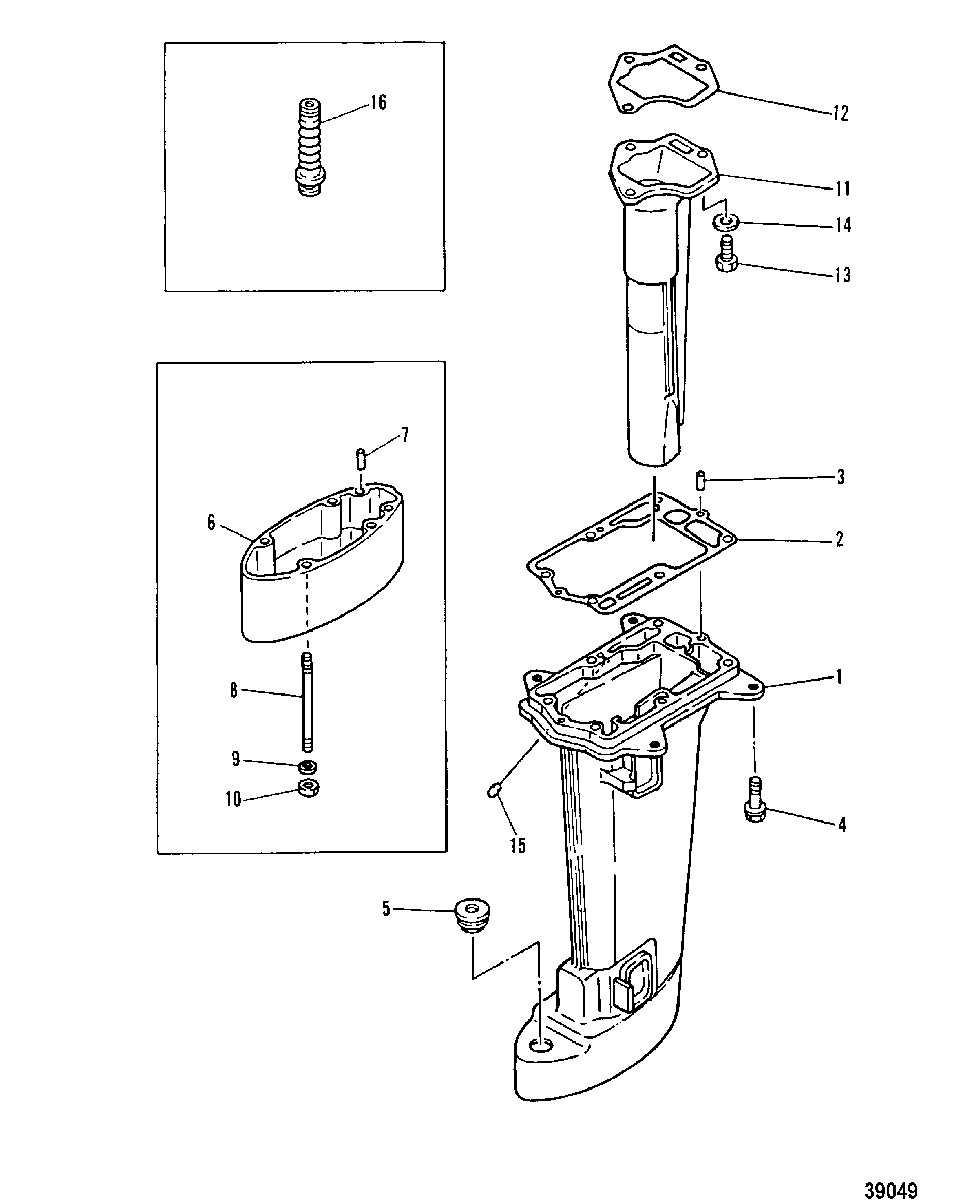

DRIVESHAFT HOUSING для Mariner - 6C 6H8-300171 THRU 306502
-
№АртикулНазвание
-
11587-9312M HOUSING, Driveshaft
(SHORT)HOUSING, Driveshaft
(SHORT) -
11587-9313M HOUSING, Driveshaft
(LONG AND ULTRA LONG)HOUSING, Driveshaft
(LONG AND ULTRA LONG) -
227-11560M GASKETGASKET
-
317-82354M PIN, DOWELPIN, DOWEL
-
410-11561M BOLTBOLT
-
525-11562M GROMMETGROMMET
-
611563M EXTENSION
(ULTRA LONG)EXTENSION
(ULTRA LONG) -
717-82354M PIN, DOWEL
(ULTRA LONG)PIN, DOWEL
(ULTRA LONG) -
816-11564M STUD
(ULTRA LONG)STUD
(ULTRA LONG) -
912-82214M WASHER
(ULTRA LONG)WASHER
(ULTRA LONG) -
1011-11565M NUT
(ULTRA LONG)NUT
(ULTRA LONG) -
1111566M MANIFOLD, EXHAUST
(8M)MANIFOLD, EXHAUST
(8M) -
1111567M MANIFOLD, EXHAUST
(6M - 6H8)MANIFOLD, EXHAUST
(6M - 6H8) -
1117364M MANIFOLD, EXHAUST
(6M - 6H6)MANIFOLD, EXHAUST
(6M - 6H6) -
1227-11568M GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
1310-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1412-82214M WASHERWASHER
-
1519-11569M PIPEPIPE
-
1615304M BOOT, SHIFT RODBOOT, SHIFT ROD
