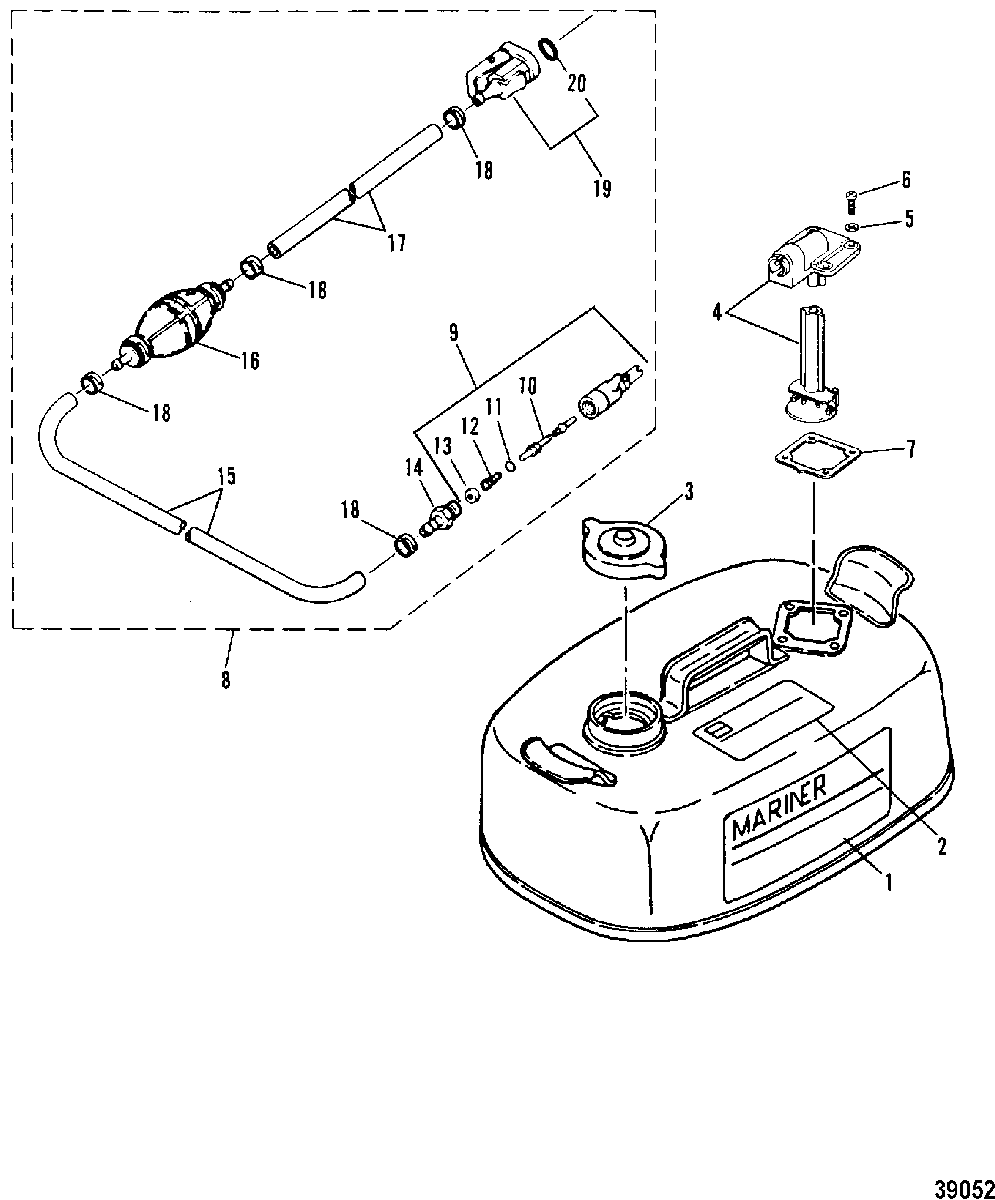

FUEL TANK AND FUEL LINE(ORIGINAL)(12 LITRE) для Mariner - 6D 6H6-001302 & Up
-
№АртикулНазвание
-
137-95488M DECAL, SIDEDECAL, SIDE
-
237-95489M DECAL, TOPDECAL, TOP
-
336-18962M CAP ASSEMBLY, Fuel TankCAP ASSEMBLY, Fuel Tank
-
483584M HOUSING ASSEMBLY, FUEL CONNECTORHOUSING ASSEMBLY, FUEL CONNECTOR
-
512-95501M SEALSEAL
-
610-95502M SCREWSCREW
-
727-81320M GASKET, HOUSING ASS'YGASKET, HOUSING ASS'Y
-
832-16721M LINE ASSEMBLY, FuelLINE ASSEMBLY, Fuel
-
930185Q3 BAYONET ASSEMBLY, FuelBAYONET ASSEMBLY, Fuel
-
1030185Q3 STEM, BAYONET BODYSTEM, BAYONET BODY
-
1125-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
1224-30189 SPRING, BAYONET BODY ASS'YSPRING, BAYONET BODY ASS'Y
-
1330188 WASHER, CAPWASHER, CAP
-
1422-63187 FITTING, Barb (.250-18), FUEL LINEFITTING, Barb (.250-18), FUEL LINE
-
1532-94727M HOSE, FUEL TANK T PRIMER BULBHOSE, FUEL TANK T PRIMER BULB
-
1689396Q01 PRIMER BULBPRIMER BULB
-
1732-94727M HOSEHOSE
-
1854-16725M CLAMP, HOSECLAMP, HOSE
-
1922-14213Q CONNECTOR, Fuel, ENGINE FUEL CONNECTORCONNECTOR, Fuel, ENGINE FUEL CONNECTOR
-
2025-82789M O-RING, ENGINE FUEL CONNECTOR HOUSINGO-RING, ENGINE FUEL CONNECTOR HOUSING
