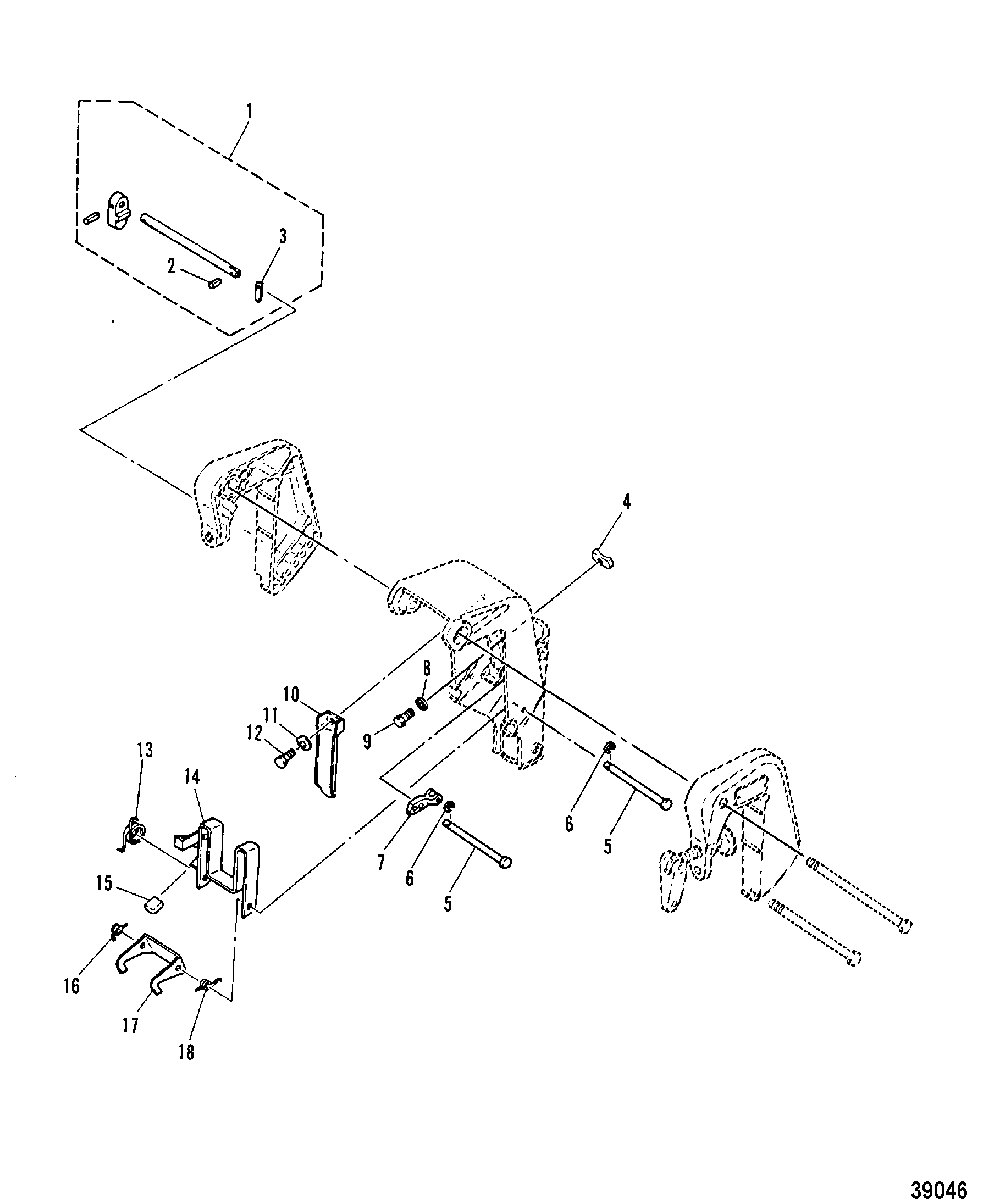

REVERSE LOCK для Mariner - 6D 6H6-300406 & Up
-
№АртикулНазвание
-
111518M TILT ROD ASSEMBLYTILT ROD ASSEMBLY
-
217-82144M PIN, SPRINGPIN, SPRING
-
382857M PLATE, Stopper, TILT LOCKPLATE, Stopper, TILT LOCK
-
411519M STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
511520M SHAFT, REVERSE LOCKSHAFT, REVERSE LOCK
-
653-82330M RING, SnapRING, Snap
-
711521M PLATE, TILT LOCKPLATE, TILT LOCK
-
812-82214M WASHERWASHER
-
910-84088M SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1011522M CARRING HANDLECARRING HANDLE
-
1112-82217M WASHERWASHER
-
1210-95546M BOLTBOLT
-
1324-11523M SPRINGSPRING
-
1411524M LEVER, SHALLOW WATER DRIVELEVER, SHALLOW WATER DRIVE
-
1511525M COVERCOVER
-
1624-11526M SPRINGSPRING
-
1711527M PLATE, TILT LOCKPLATE, TILT LOCK
-
1824-11528M SPRINGSPRING
