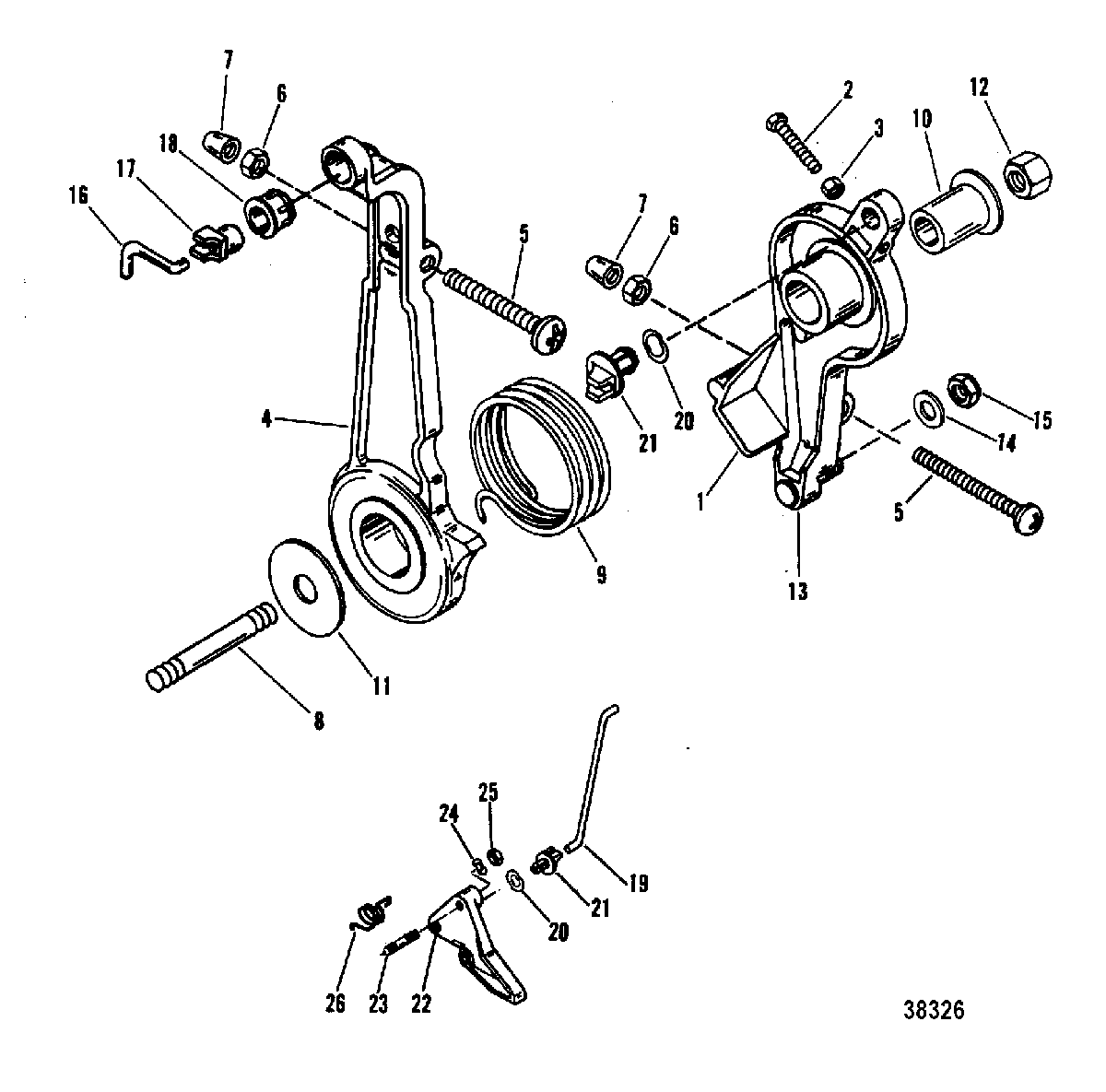

THROTTLE LEVER AND LINKAGE для Mariner - 70 (3 CYL.) 9483121 THRU 9506480
-
№АртикулНазвание
-
142946T1 LEVER, THROTTLELEVER, THROTTLE
-
210-817582 SCREW, ADJUSTINGSCREW, ADJUSTING
-
311-400211 NUT, (M5), JAM-ADJUSTING SCREWNUT, (M5), JAM-ADJUSTING SCREW
-
4429471 LEVER, SPARK ADVANCELEVER, SPARK ADVANCE
-
510-814776 SCREW, ADJUSTINGSCREW, ADJUSTING
-
611-400212 NUT, JAM-ADJUSTING SCREWNUT, JAM-ADJUSTING SCREW
-
742942 CAP, NYLON-ADJUSTINGCAP, NYLON-ADJUSTING
-
816-42986 STUD, LEVERSSTUD, LEVERS
-
924-55162 SPRING, THROTTLE/SPARK ADVANCE LEVERSPRING, THROTTLE/SPARK ADVANCE LEVER
-
1023-812930A1 BUSHING, LEVER STUDBUSHING, LEVER STUD
-
1112-42980 WASHER, LEVER STUDWASHER, LEVER STUD
-
1211-90517 NUT, (M10), LEVER STUDNUT, (M10), LEVER STUD
-
1342927 INSERT, THROTTLE LEVERINSERT, THROTTLE LEVER
-
1412-35459 WASHER, THROTTLE LEVER PINWASHER, THROTTLE LEVER PIN
-
1511-401386 NUT, (M6), THROTTLE LEVER PINNUT, (M6), THROTTLE LEVER PIN
-
16878172 ROD, SPARK ADVANCEROD, SPARK ADVANCE
-
1793421 SWIVEL BALLSWIVEL BALL
-
1893254 SWIVEL BASESWIVEL BASE
-
19878420T ROD, THROTTLEROD, THROTTLE
-
2013-25806 WAVE WASHER, SWIVEL BUSHINGWAVE WASHER, SWIVEL BUSHING
-
2123-932481 BUSHING, SWIVELBUSHING, SWIVEL
-
2242948A7 CAM, THROTTLECAM, THROTTLE
-
2316-8161949 STUD, THROTTLE CAMSTUD, THROTTLE CAM
-
2412-69056 WASHER, (.255 x .620 x .030) Stainless Steel, THROTTLE CAM STUDWASHER, (.255 x .620 x .030) Stainless Steel, THROTTLE CAM STUD
-
2511-401386 NUT, (M6), THROTTLE CAM STUDNUT, (M6), THROTTLE CAM STUD
-
2624-14159 SPRING, CAM RETURNSPRING, CAM RETURN
