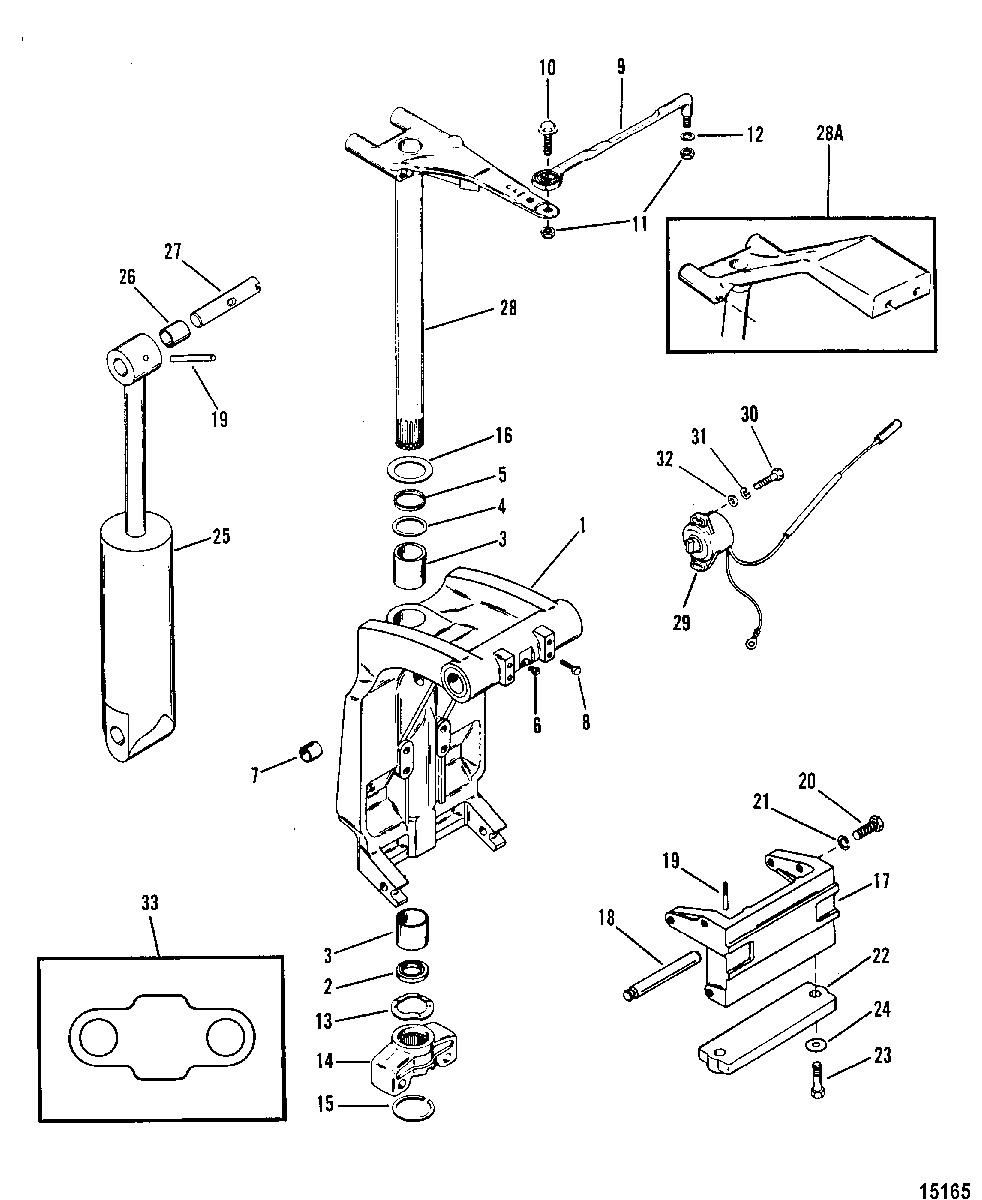

Swivel Bracket and Steering Arm для Mariner - 70 (3 CYL.) 9506481 THRU 9589038
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY, BlackSWIVEL BRACKET ASSEMBLY, Black
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY, GraySWIVEL BRACKET ASSEMBLY, Gray
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY, OysterSWIVEL BRACKET ASSEMBLY, Oyster
-
226-87735 SEAL, Oil, Swivel Bracket, LowerSEAL, Oil, Swivel Bracket, Lower
-
323-818764 BUSHING, Swivel Bracket, Lower And UpperBUSHING, Swivel Bracket, Lower And Upper
-
425-33466 O-RING, Swivel Bracket, UpperO-RING, Swivel Bracket, Upper
-
523-67668 SPACER, Swivel Bracket, UpperSPACER, Swivel Bracket, Upper
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHING, Swivel BracketBUSHING, Swivel Bracket
-
810-64014 SCREW, (.250-28 x .500), Swivel BracketSCREW, (.250-28 x .500), Swivel Bracket
-
992876A12 LINK ASSEMBLY, Steering, Black And GrayLINK ASSEMBLY, Steering, Black And Gray
-
1010-849838 SCREW, (.375-24 x 1.25)
(Steering Link To Steering Arm 1.125 Inch Black And Gray)SCREW, (.375-24 x 1.25)
(Steering Link To Steering Arm 1.125 Inch Black And Gray) -
1111-8M0042636 NUT, (.375-24), Steering Link Screw, Black And GrayNUT, (.375-24), Steering Link Screw, Black And Gray
-
1212-34931 WASHER, (.406 x .734 x .063) Stainless Steel
(Steering Link To Steering Arm Black And GrayWASHER, (.406 x .734 x .063) Stainless Steel
(Steering Link To Steering Arm Black And Gray -
1313-78854 WAVE WASHER, Bottom YokeWAVE WASHER, Bottom Yoke
-
1442961A06 YOKE ASSEMBLY, Bottom, BlackYOKE ASSEMBLY, Bottom, Black
-
1442961A06 YOKE ASSEMBLY, Bottom, GrayYOKE ASSEMBLY, Bottom, Gray
-
1442961A06 YOKE ASSEMBLY, Bottom, OysterYOKE ASSEMBLY, Bottom, Oyster
-
1553-67684 RING, Retaining, Bottom YokeRING, Retaining, Bottom Yoke
-
1612-67670 WASHER, Thrust, Swivel BracketWASHER, Thrust, Swivel Bracket
-
1799653 BRACKET, Shock Absorber
Not Used With Power TrimBRACKET, Shock Absorber
Not Used With Power Trim -
1899619 SHAFT, Shock Absorber
(Lower, Not Used With Power Trim)SHAFT, Shock Absorber
(Lower, Not Used With Power Trim) -
1917-821539 PIN, Groove
(Shock Absorber, Not Used With Power Trim)PIN, Groove
(Shock Absorber, Not Used With Power Trim) -
2010-4000377 SCREW, (M10 x 30)
(Bracket, Not Used With Power Trim)SCREW, (M10 x 30)
(Bracket, Not Used With Power Trim) -
2113-400258 LOCKWASHER, (M10) Stainless Steel
(Bracket Screw, Not Used With Power Trim)LOCKWASHER, (M10) Stainless Steel
(Bracket Screw, Not Used With Power Trim) -
2297-818298Q1 ANODE ASSEMBLY
(Not Used With Power Trim)ANODE ASSEMBLY
(Not Used With Power Trim) -
2310-4000332 SCREW, (M6 x 35), Anode
(Not Used With Power Trim)SCREW, (M6 x 35), Anode
(Not Used With Power Trim) -
2412-29245 WASHER, (.281 x .500 x .060) Stainless Steel, Anode Screw
(Not Used With Power Trim)WASHER, (.281 x .500 x .060) Stainless Steel, Anode Screw
(Not Used With Power Trim) -
2555-99724T15 SHOCK ABSORBER
(Not Used With Power Trim BlackSHOCK ABSORBER
(Not Used With Power Trim Black -
2555-99724T15 SHOCK ABSORBER
(Not Used With Power Trim Gray)SHOCK ABSORBER
(Not Used With Power Trim Gray) -
2555-99724T15 SHOCK ABSORBER
(Not Used With Power Trim Oyster)SHOCK ABSORBER
(Not Used With Power Trim Oyster) -
2623-821207 BUSHING, Shock Absorber
(Not Used With Power Trim)BUSHING, Shock Absorber
(Not Used With Power Trim) -
2799625002 SHAFT, Shock Absorber, Upper
(Not Used With Power Trim)SHAFT, Shock Absorber, Upper
(Not Used With Power Trim) -
2899661A2 SWIVEL PIN ASSEMBLY, Round End, BlackSWIVEL PIN ASSEMBLY, Round End, Black
-
2899661A4 SWIVEL PIN ASSEMBLY, Mariner, GraySWIVEL PIN ASSEMBLY, Mariner, Gray
-
2899661A18 SWIVEL PIN ASSEMBLY
(Round End Oyster, Sea Ray)SWIVEL PIN ASSEMBLY
(Round End Oyster, Sea Ray) -
2899661A18 SWIVEL PIN ASSEMBLY
(Round End Gray, Sea Ray)SWIVEL PIN ASSEMBLY
(Round End Gray, Sea Ray) -
2899661A35 SWIVEL PIN ASSEMBLY, Stub End, BlackSWIVEL PIN ASSEMBLY, Stub End, Black
-
2899661A35 SWIVEL PIN ASSEMBLY, Stub End, GraySWIVEL PIN ASSEMBLY, Stub End, Gray
-
28A12079A8 SWIVEL PIN ASSEMBLY, Handle Models, BlackSWIVEL PIN ASSEMBLY, Handle Models, Black
-
28A12079A9 SWIVEL PIN ASSEMBLY
Handle Models GraySWIVEL PIN ASSEMBLY
Handle Models Gray -
298M0098273 SENDER ASSEMBLY, Trim
Handle Models OysterSENDER ASSEMBLY, Trim
Handle Models Oyster -
3010-852368 SCREW, (#10-24 x .750), Trim Sender, OysterSCREW, (#10-24 x .750), Trim Sender, Oyster
-
3113-26996 LOCKWASHER, (#10) Stainless Steel
Trim Sendsr Score OysterLOCKWASHER, (#10) Stainless Steel
Trim Sendsr Score Oyster -
3212-89302 WASHER, (.203 x .406 x .040), Trim Sender ScrewWASHER, (.203 x .406 x .040), Trim Sender Screw
-
3311288001 BUMPER, Bottom Yoke (X-Long)BUMPER, Bottom Yoke (X-Long)
