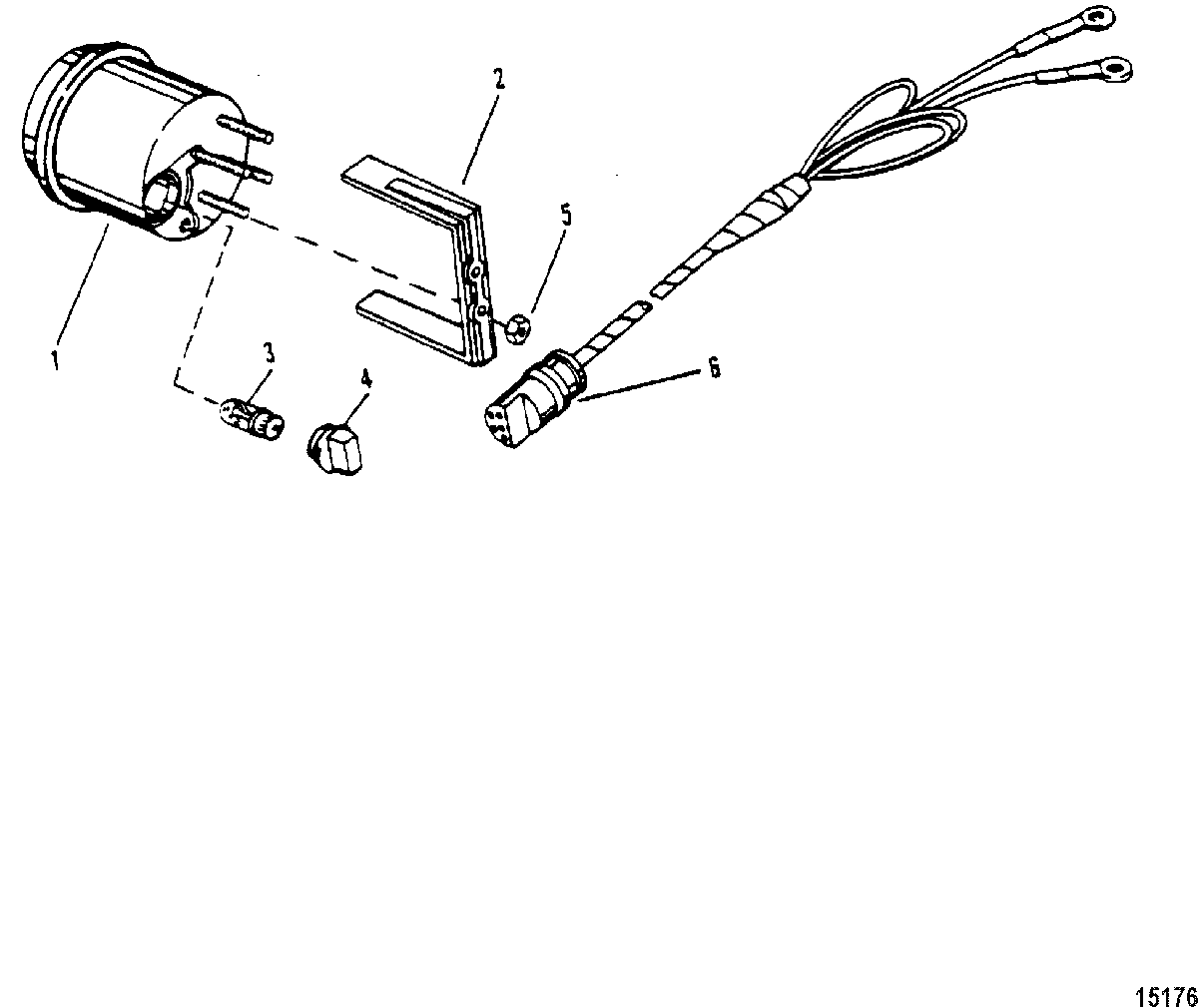

Tachometer для Mariner - 75 (3 CYL.) 0A996142 THRU 0B240450
-
№АртикулНазвание
-
179-895283Q43 TACHOMETER, 6KTACHOMETER, 6K
-
279101T BRACKET, MountingBRACKET, Mounting
-
388-72729 LIGHT BULB, Wedge Base (14V - .19W)LIGHT BULB, Wedge Base (14V - .19W)
-
488-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
511-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
684-86396A8 HARNESS ASSEMBLY, Tachometer (5.00 Feet)HARNESS ASSEMBLY, Tachometer (5.00 Feet)
Все узлы модели:
- CARBURETOR
- CARBURETOR AND ATTENUATOR PLATE
- Co-Pilot
- COWL MOUNTING BRACKETS
- COWLS AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS(#638-8532--1)
- CRANKSHAFT, PISTONS AND CONNECTING RODS(#646-818846)
- CRANKSHAFT, PISTONS AND CONNECTING RODS(#646-818846)
- CYLINDER BLOCK AND CRANKCASE
- DRIVESHAFT HOUSING
- ELECTRICAL COMPONENTS
- EXHAUST PLATE
- FLYWHEEL AND STARTER MOTOR
- FUEL PUMP
- GEAR HOUSING(DRIVESHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- INDUCTION MANIFOLD AND REED BLOCK
- MISCELLANEOUS PARTS/ACCESSORIES
- OIL INJECTION COMPONENTS
- POWER TRIM COMPONENTS
- POWER TRIM PUMP
- STARTER MOTOR(BOSCH)
- STEERING HANDLE COMPONENTS
- STEERING HANDLE COMPONENTS
- SWIVEL BRACKET AND STEERING ARM
- • Tachometer
- THROTTLE LEVER AND LINKAGE
- TRANSOM BRACKET
