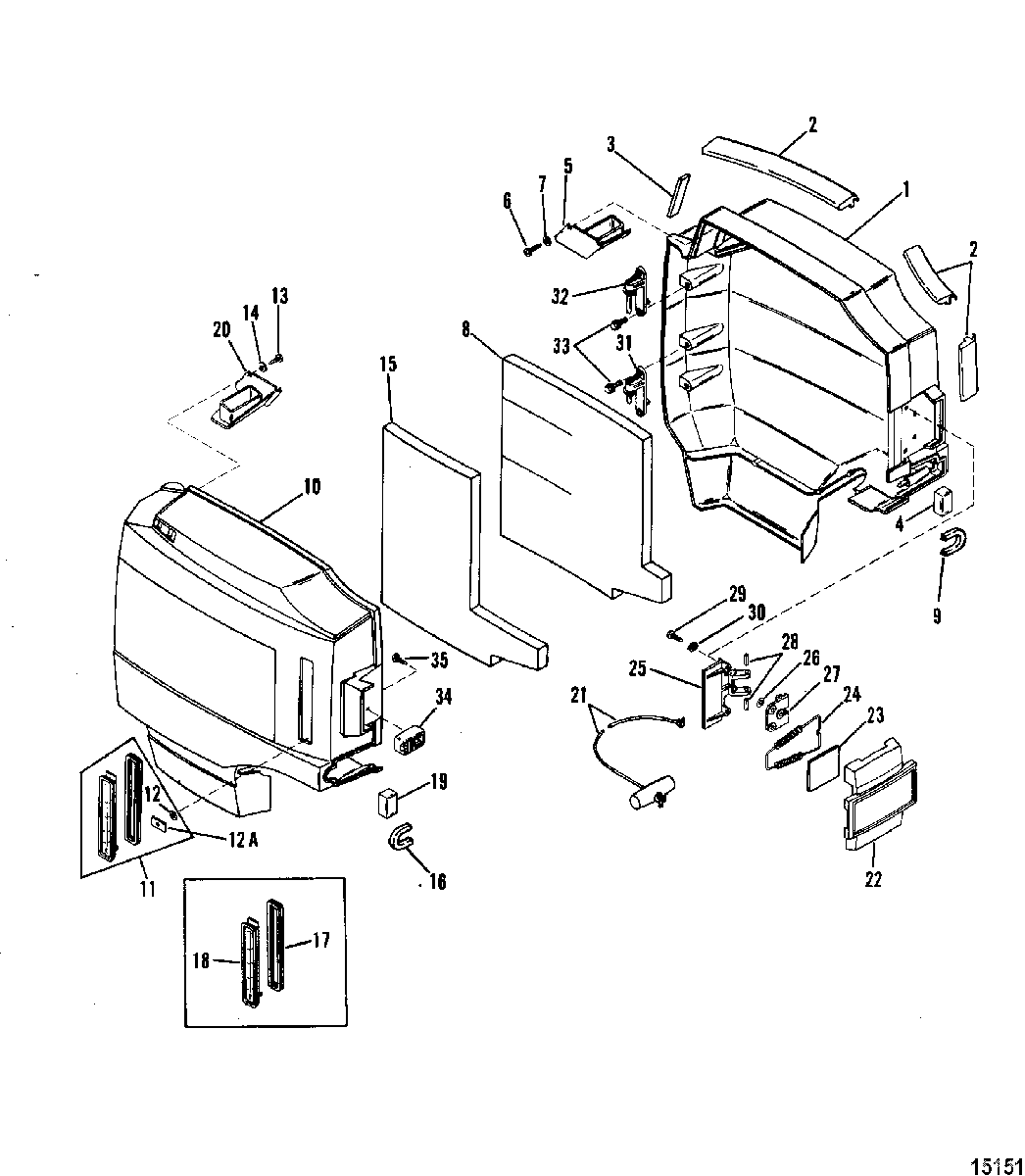

Cowls and Front Cover для Mariner - 75 (3 CYL.) 0B240451 THRU 0C221999
-
№АртикулНазвание
-
12188-9006A2 TOP COWL ASSEMBLY, Port, BlackTOP COWL ASSEMBLY, Port, Black
-
12188-9006A3 TOP COWL ASSEMBLY, Port, GrayTOP COWL ASSEMBLY, Port, Gray
-
12188-9006A3 TOP COWL ASSEMBLY, Port, OysterTOP COWL ASSEMBLY, Port, Oyster
-
2429404 SEAL, Upper CowlSEAL, Upper Cowl
-
312401 SEAL, Cowl, RearSEAL, Cowl, Rear
-
490274 SEALSEAL
-
542958 SHIELD, Air Inlet, Black, GraySHIELD, Air Inlet, Black, Gray
-
5429581 SHIELD OYSTER, Air Inlet, OysterSHIELD OYSTER, Air Inlet, Oyster
-
610-48409 SCREW, (#10-16 x .625) Stainless Steel, ShieldSCREW, (#10-16 x .625) Stainless Steel, Shield
-
712-4002313 WASHER, Shield ScrewWASHER, Shield Screw
-
8435331 SOUND BLANKETSOUND BLANKET
-
9193682 SEAL, (4.20 Inches), Black, GraySEAL, (4.20 Inches), Black, Gray
-
9193681 SEAL, (3.20 Inch), OysterSEAL, (3.20 Inch), Oyster
-
102187-9070A4 TOP COWL ASSEMBLY, Starboard, BlackTOP COWL ASSEMBLY, Starboard, Black
-
102187-9070A5 TOP COWL ASSEMBLY, Starboard, GrayTOP COWL ASSEMBLY, Starboard, Gray
-
102187-9070A5 TOP COWL ASSEMBLY, Starboard, OysterTOP COWL ASSEMBLY, Starboard, Oyster
-
1111315A1 OIL LEVEL GAUGE ASSEMBLYOIL LEVEL GAUGE ASSEMBLY
-
1211-11316 SPEED NUTSPEED NUT
-
12A113171 RETAINERRETAINER
-
1310-48409 SCREW, (#10-16 x .625) Stainless Steel, ShieldSCREW, (#10-16 x .625) Stainless Steel, Shield
-
1412-4002313 WASHER, Shield ScrewWASHER, Shield Screw
-
15435342 SOUND BLANKET, Black, GraySOUND BLANKET, Black, Gray
-
16193682 SEAL, (4.20 Inches), Black, GraySEAL, (4.20 Inches), Black, Gray
-
16193681 SEAL, (3.20 Inch), OysterSEAL, (3.20 Inch), Oyster
-
1742905 GROMMET, Handle ModelsGROMMET, Handle Models
-
18812431 PLUG, Handle ModelsPLUG, Handle Models
-
1926-60297 SEALSEAL
-
2042957 SHIELD, Air InletSHIELD, Air Inlet
-
2147341A11 ROPE AND HANDLE KIT, Manual/Emergency Start, Manual StartingROPE AND HANDLE KIT, Manual/Emergency Start, Manual Starting
-
2243138A2 COVER ASSEMBLY MERCURY, BlackCOVER ASSEMBLY MERCURY, Black
-
2243138A3 COVER ASSEMBLY MARINER, GrayCOVER ASSEMBLY MARINER, Gray
-
2243138A3 COVER ASSEMBLY, OysterCOVER ASSEMBLY, Oyster
-
2312356 BUMPERBUMPER
-
2424-17288 SPRING, CoverSPRING, Cover
-
2543137A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
2611-434181 SPEED NUTSPEED NUT
-
2715432 RETAINER, BracketRETAINER, Bracket
-
2817-43134 PIN, BracketPIN, Bracket
-
2910-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
3012-814806 WASHERWASHER
-
3187985 BRACKET, LowerBRACKET, Lower
-
32879871 BRACKET, UpperBRACKET, Upper
-
3310-40011149 SCREW, BracketSCREW, Bracket
-
34120811 LATCH, CowlLATCH, Cowl
-
3510-48409 SCREW, (#10-16 x .625) Stainless Steel, LatchSCREW, (#10-16 x .625) Stainless Steel, Latch
-
3538-17996 EMBLEM, Port, Starboard, OysterEMBLEM, Port, Starboard, Oyster
-
3537-179061 EMBLEM, OysterEMBLEM, Oyster
