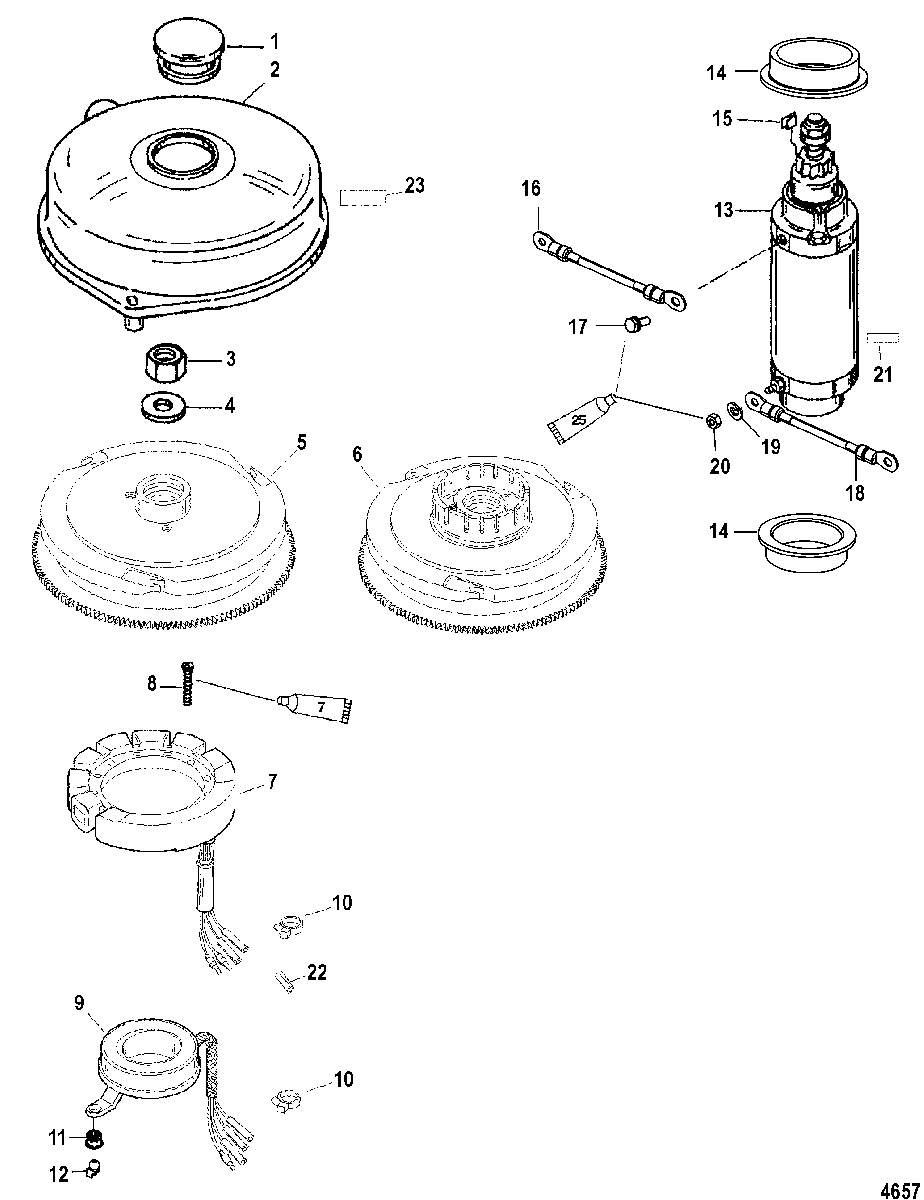

Flywheel and Starter Motor для Mariner - 75 (3 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
119-45907 PLUG, YellowPLUG, Yellow
-
2812777T1 COVER ASSEMBLYCOVER ASSEMBLY
-
311-42979 NUT, (M16)NUT, (M16)
-
412-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
5261-878226T10 FLYWHEEL ASSEMBLY
(Electric-Oil Injection)FLYWHEEL ASSEMBLY
(Electric-Oil Injection) -
5261-878226T16 FLYWHEEL ASSEMBLY
(Electric-Non Oil Injection)FLYWHEEL ASSEMBLY
(Electric-Non Oil Injection) -
6261-878226T8 FLYWHEEL ASSEMBLY
(Manual)FLYWHEEL ASSEMBLY
(Manual) -
7398-832075A21 IGNITION STATOR KIT
(Electric)IGNITION STATOR KIT
(Electric) -
7398-832074A11 STATOR
(Manual)STATOR
(Manual) -
810-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
9854512T TRIGGERTRIGGER
-
1056762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
1193254 SWIVEL BASESWIVEL BASE
-
1293421 SWIVEL BALLSWIVEL BALL
-
1350-893891T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1423-8M0034918 COLLARCOLLAR
-
158M0043376 STOPSTOP
-
1684-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
1710-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
1884-93388A8 CABLE ASSEMBLY, (12.5 Inchs) BlackCABLE ASSEMBLY, (12.5 Inchs) Black
-
1913-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2011-64015 NUT, (.250-20)NUT, (.250-20)
-
2137-8272822 DECAL, Warning, High Voltage
(Electric)DECAL, Warning, High Voltage
(Electric) -
2213541 PLUG, Male
(Manual)PLUG, Male
(Manual) -
2337-881865 DECAL, Caution-Start in Gear
(Start In Gear) (Electric)DECAL, Caution-Start in Gear
(Start In Gear) (Electric)
