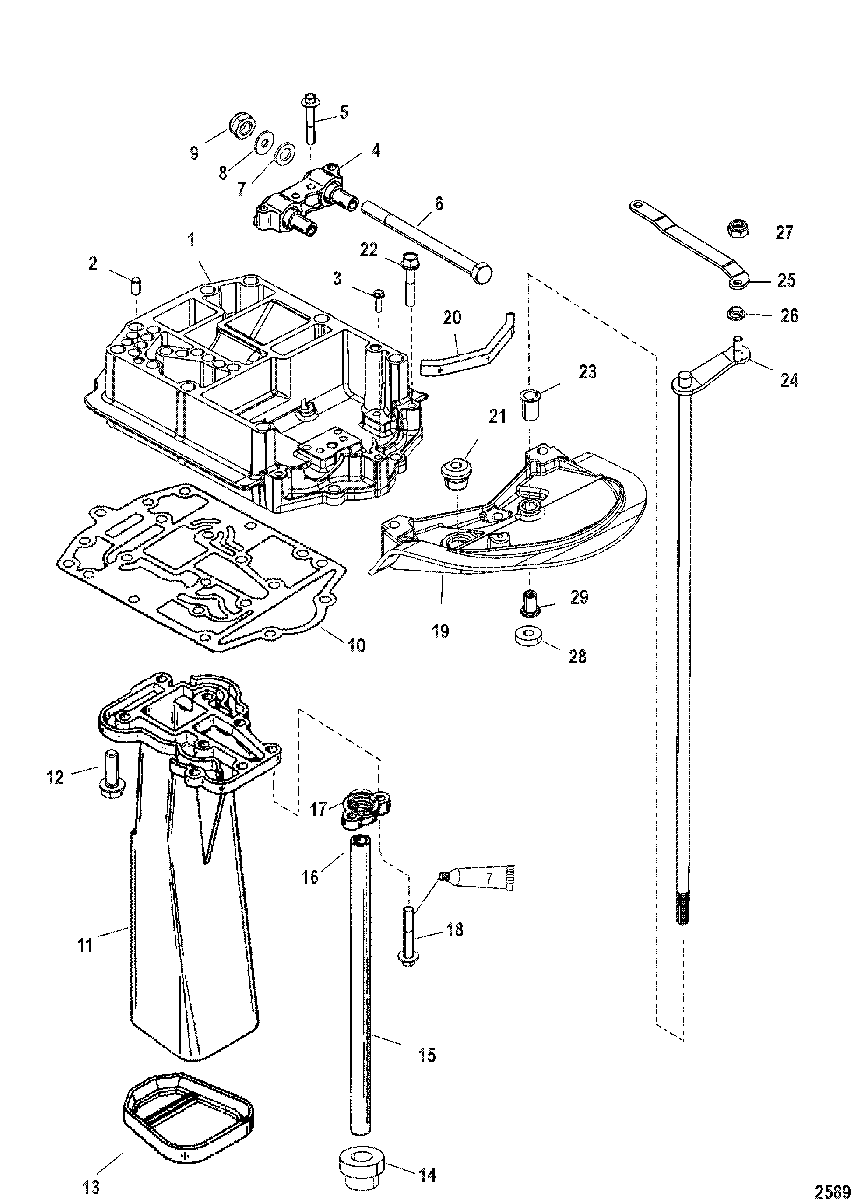

Exhaust Plate(SN USA-0T800999/ BEL-0P267999 and Below) для Mariner - 75 (3 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
142954A5 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
217-23784 PIN, DowelPIN, Dowel
-
310-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
310-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
4881900T03 MOUNT
(Non Oil Injection)MOUNT
(Non Oil Injection) -
4881900T03 MOUNT
(Oil Injection) (Jet 65)MOUNT
(Oil Injection) (Jet 65) -
510-4010750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
610-898487 BOLT, (M12 x 175)BOLT, (M12 x 175)
-
712-32834 WASHER, NeopreneWASHER, Neoprene
-
812-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
911-896963 NUT, (M12)NUT, (M12)
-
1027-430086 GASKETGASKET
-
1187917216T TUBE, ExhaustTUBE, Exhaust
-
1210-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
138M0039075 SEALSEAL
-
1425-89417004 GROMMETGROMMET
-
1532-8M0042791 TUBE, Water - Long (13.21 Inches)
(13.25 Inches)TUBE, Water - Long (13.21 Inches)
(13.25 Inches) -
1532-8M0042793 TUBE, Water (15.71 Inches) X Long
(15.75 Inches)TUBE, Water (15.71 Inches) X Long
(15.75 Inches) -
1532-8M0042792 TUBE, Water - X Long (18.21 Inches)
(18.25 Inches)TUBE, Water - X Long (18.21 Inches)
(18.25 Inches) -
16824661 CLAMPCLAMP
-
17814080001 SEAL, UpperSEAL, Upper
-
1810-4010750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1942953A5 BRACKET ASSEMBLY, Lower
(Black)BRACKET ASSEMBLY, Lower
(Black) -
2043405 SEALSEAL
-
2125-19564001 GROMMET
(Manual Tilt Assist)(Closed End)GROMMET
(Manual Tilt Assist)(Closed End) -
2125-19565002 GROMMET
(Power Trim)(Split)GROMMET
(Power Trim)(Split) -
2210-81742750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
2323-48237 BUSHINGBUSHING
-
2479932A20 SHIFT SHAFT ASSEMBLY
(Upper-Electric)SHIFT SHAFT ASSEMBLY
(Upper-Electric) -
2479932A23 SHIFT SHAFT ASSEMBLY
(Upper-Manual)SHIFT SHAFT ASSEMBLY
(Upper-Manual) -
2542912A3 SHIFT LINKSHIFT LINK
-
2623-48475 BUSHINGBUSHING
-
2711-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2823-813745 SPACER
(Long)SPACER
(Long) -
2823-11289 SPACER
(LL)SPACER
(LL) -
2943585 COUPLINGCOUPLING
-
-27-43004A99 GASKET SET, PowerheadGASKET SET, Powerhead
