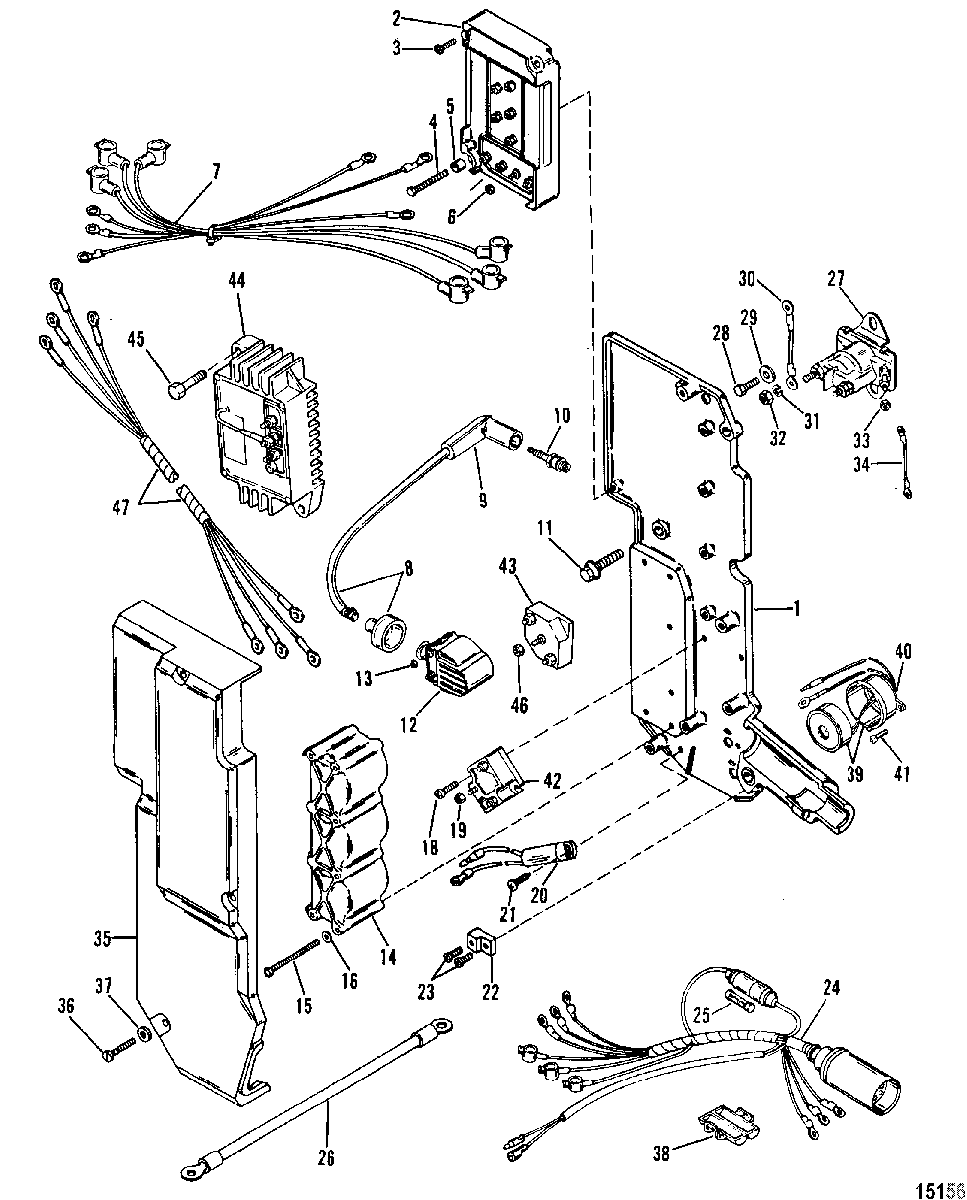

Electrical Components для Mariner - 75 (3 CYL.) 9506481 THRU 9589038
-
№АртикулНазвание
-
142968A23 PLATE, IgnitionPLATE, Ignition
-
2332-7778A12 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
310-69079 SCREW, (#10-16 x .440), Switch BoxSCREW, (#10-16 x .440), Switch Box
-
410-40007110 SCREW, (M5 x 30), Switch BoxSCREW, (M5 x 30), Switch Box
-
523-94304 SPACER, Switch Box ScrewSPACER, Switch Box Screw
-
611-45076 NUT, (#10-32) Brass, Switch Box TerminalNUT, (#10-32) Brass, Switch Box Terminal
-
784-41592A4 HARNESS ASSEMBLY, PrimaryHARNESS ASSEMBLY, Primary
-
884-813715A7 CABLE SET, Ignition, High TensionCABLE SET, Ignition, High Tension
-
985-63709A1 BOOT/TERMINAL KIT, Spark PlugBOOT/TERMINAL KIT, Spark Plug
-
1033-97182Q SPARK PLUGSPARK PLUG
-
1033-14103Q SPARK PLUG, Begium, CanadaSPARK PLUG, Begium, Canada
-
1110-82155025 SCREW, Ignition PlateSCREW, Ignition Plate
-
12339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
1311-45076 NUT, (#10-32) Brass, Ignition Coil TerminalNUT, (#10-32) Brass, Ignition Coil Terminal
-
1443542 COVER, Ignition CoilCOVER, Ignition Coil
-
1510-40007115 SCREW, (M5 x 55), Ignition Coil CoverSCREW, (M5 x 55), Ignition Coil Cover
-
1612-89302 WASHER, (.203 x .406 x .040), Coil Cover ScrewWASHER, (.203 x .406 x .040), Coil Cover Screw
-
1810-40056107 SCREW, (M5 x 16), RectifierSCREW, (M5 x 16), Rectifier
-
1911-45076 NUT, (#10-32) Brass, Rectifier TerminalNUT, (#10-32) Brass, Rectifier Terminal
-
2016731T01 MERCURY SWITCH ASSEMBLYMERCURY SWITCH ASSEMBLY
-
2110-40056107 SCREW, (M5 x 16), Mercury SwitchSCREW, (M5 x 16), Mercury Switch
-
2286-45915 TERMINAL BLOCKTERMINAL BLOCK
-
2310-48408 SCREW, (#10-16 x .500), Terminal BlockSCREW, (#10-16 x .500), Terminal Block
-
2484-41591A3 HARNESS ASSEMBLY, EngineHARNESS ASSEMBLY, Engine
-
2588-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
2684-88439A3 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
2684-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
2789-96158T SOLENOID, StarterSOLENOID, Starter
-
2810-40007106 SCREW, (M5 x 13), Starter SolenoidSCREW, (M5 x 13), Starter Solenoid
-
2912-4002314 WASHER, Starter Solenoid ScrewWASHER, Starter Solenoid Screw
-
3084-88807A6 CABLE ASSEMBLY, (3.50 Inches) Black, Solenoid Screw
(Quantity Of Two On Oyster)CABLE ASSEMBLY, (3.50 Inches) Black, Solenoid Screw
(Quantity Of Two On Oyster) -
3113-26992 LOCKWASHER, (.250) Stainless Steel
(Starter Solenoid Terminal)LOCKWASHER, (.250) Stainless Steel
(Starter Solenoid Terminal) -
3211-64015 NUT, (.250-20), Starter Solenoid TerminalNUT, (.250-20), Starter Solenoid Terminal
-
3311-26419 NUT, (#8-32) Brass, Starter Solenoid TerminalNUT, (#8-32) Brass, Starter Solenoid Terminal
-
3484-88808A18 WIRE ASSEMBLY, (3.00 Inches), Rectifier To Solenoid, RedWIRE ASSEMBLY, (3.00 Inches), Rectifier To Solenoid, Red
-
35124174 COVER, IgnitionCOVER, Ignition
-
3610-40007114 SCREW, (M5 x 50), Ignition CoverSCREW, (M5 x 50), Ignition Cover
-
3712-89302 WASHER, (.203 x .406 x .040), Ignition Cover ScrewWASHER, (.203 x .406 x .040), Ignition Cover Screw
-
38134731 HOLDER, FuseHOLDER, Fuse
-
3968878A6 HORN ASSEMBLY, Buzzer Alarm, Electric HandleHORN ASSEMBLY, Buzzer Alarm, Electric Handle
-
4068879 COVER, Electric HandleCOVER, Electric Handle
-
4110-40056107 SCREW, (M5 x 16), Electric HandleSCREW, (M5 x 16), Electric Handle
-
428M0058226 RECTIFIER, See Note BelowRECTIFIER, See Note Below
-
4317602A1 TERMINAL BLOCK, See Note BelowTERMINAL BLOCK, See Note Below
-
44815279A2 REGULATOR ASSEMBLY, Voltage, Use With Reference Number 43REGULATOR ASSEMBLY, Voltage, Use With Reference Number 43
-
4510-4010630 SCREW, Use With Reference Number 43SCREW, Use With Reference Number 43
-
4611-45076 NUT, (#10-32) Brass, Use With Reference Number 43NUT, (#10-32) Brass, Use With Reference Number 43
-
4784-12201A2 HARNESS ASSEMBLY, Use With Reference Number 43HARNESS ASSEMBLY, Use With Reference Number 43
