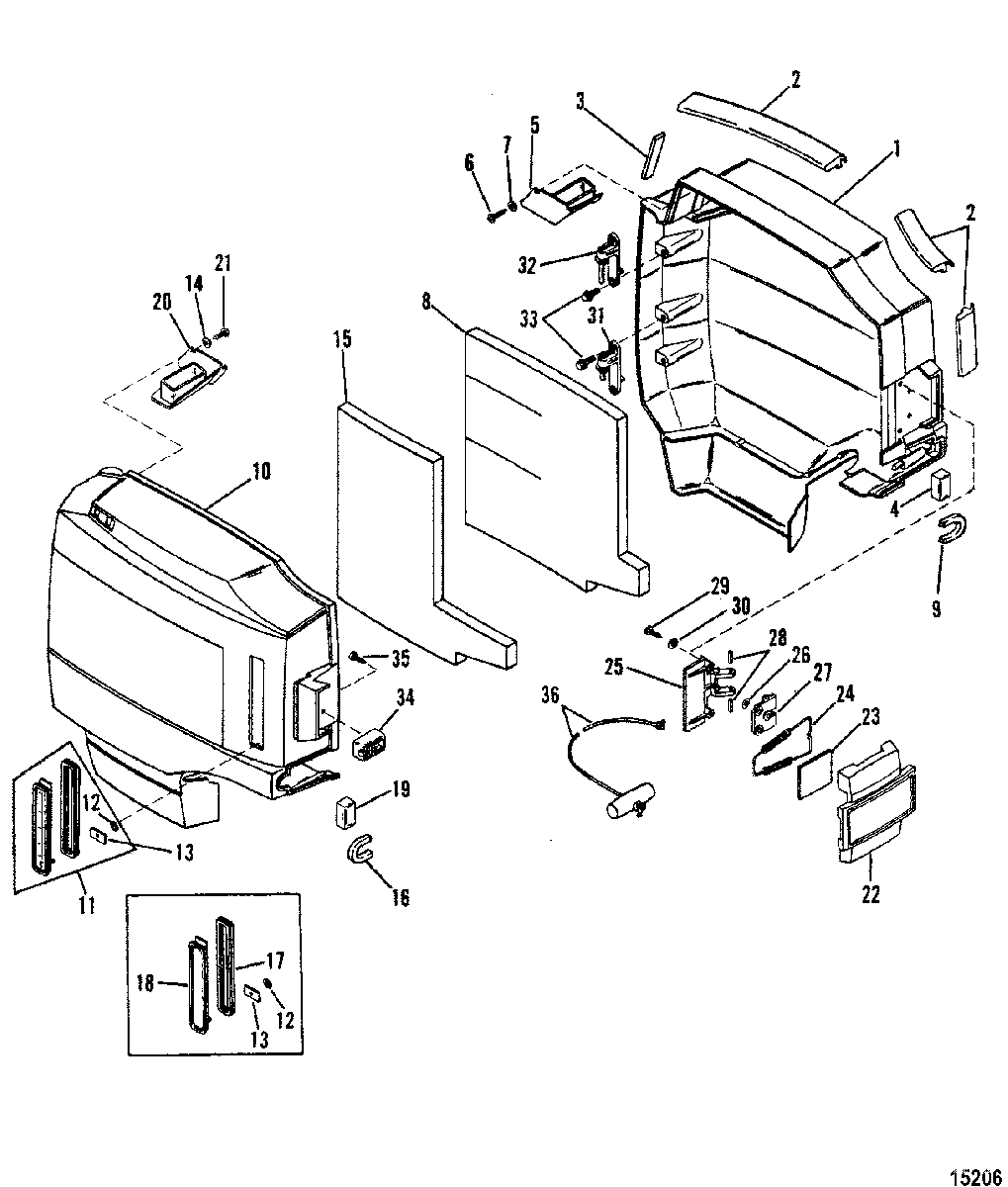

Cowls and Front Cover для Mariner - 75 (3 CYL.) 9589039 THRU 9793576
-
№АртикулНазвание
-
12188-9006A2 COWL ASSEMBLY, Port, BlackCOWL ASSEMBLY, Port, Black
-
12188-9006A3 COWL ASSEMBLY, Port, GrayCOWL ASSEMBLY, Port, Gray
-
2429404 SEALSEAL
-
312401 SEAL, RearSEAL, Rear
-
490274 SEALSEAL
-
542958 SHIELDSHIELD
-
610-48409 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
712-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
8435331 SOUND BLANKETSOUND BLANKET
-
9193682 SEAL, (4.20 Inch)SEAL, (4.20 Inch)
-
102187-9070A4 COWL ASSEMBLY, Starboard, BlackCOWL ASSEMBLY, Starboard, Black
-
102187-9070A5 COWL ASSEMBLY, Starboard, GrayCOWL ASSEMBLY, Starboard, Gray
-
1111315A1 OIL LEVEL GAUGE ASSEMBLYOIL LEVEL GAUGE ASSEMBLY
-
1211-113161 NUTNUT
-
13113171 RETAINERRETAINER
-
1412-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
15435342 SOUND BLANKETSOUND BLANKET
-
16193682 SEAL, (4.20 Inch)SEAL, (4.20 Inch)
-
1742905 GROMMETGROMMET
-
18812431 PLUG, Handle ModelsPLUG, Handle Models
-
1926-60297 SEALSEAL
-
2042957 SHIELDSHIELD
-
2110-48409 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
2243138A2 COVER ASSEMBLY MERCURY, BlackCOVER ASSEMBLY MERCURY, Black
-
2243138A3 COVER ASSEMBLY MARINER, GrayCOVER ASSEMBLY MARINER, Gray
-
2312356 BUMPERBUMPER
-
2424-17288 SPRINGSPRING
-
2543137A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
2611-434181 SPEED NUTSPEED NUT
-
2715432 RETAINERRETAINER
-
2817-43134 PINPIN
-
2910-48409 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
3012-814806 WASHER, (.344 x .688 x .065)WASHER, (.344 x .688 x .065)
-
31879851 BRACKET, LowerBRACKET, Lower
-
32879871 BRACKET, UpperBRACKET, Upper
-
3310-4010725 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
34120811 COWL LATCHCOWL LATCH
-
3510-48409 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
3647341A11 EMERGENCY STARTER ROPE, Manual StartingEMERGENCY STARTER ROPE, Manual Starting
