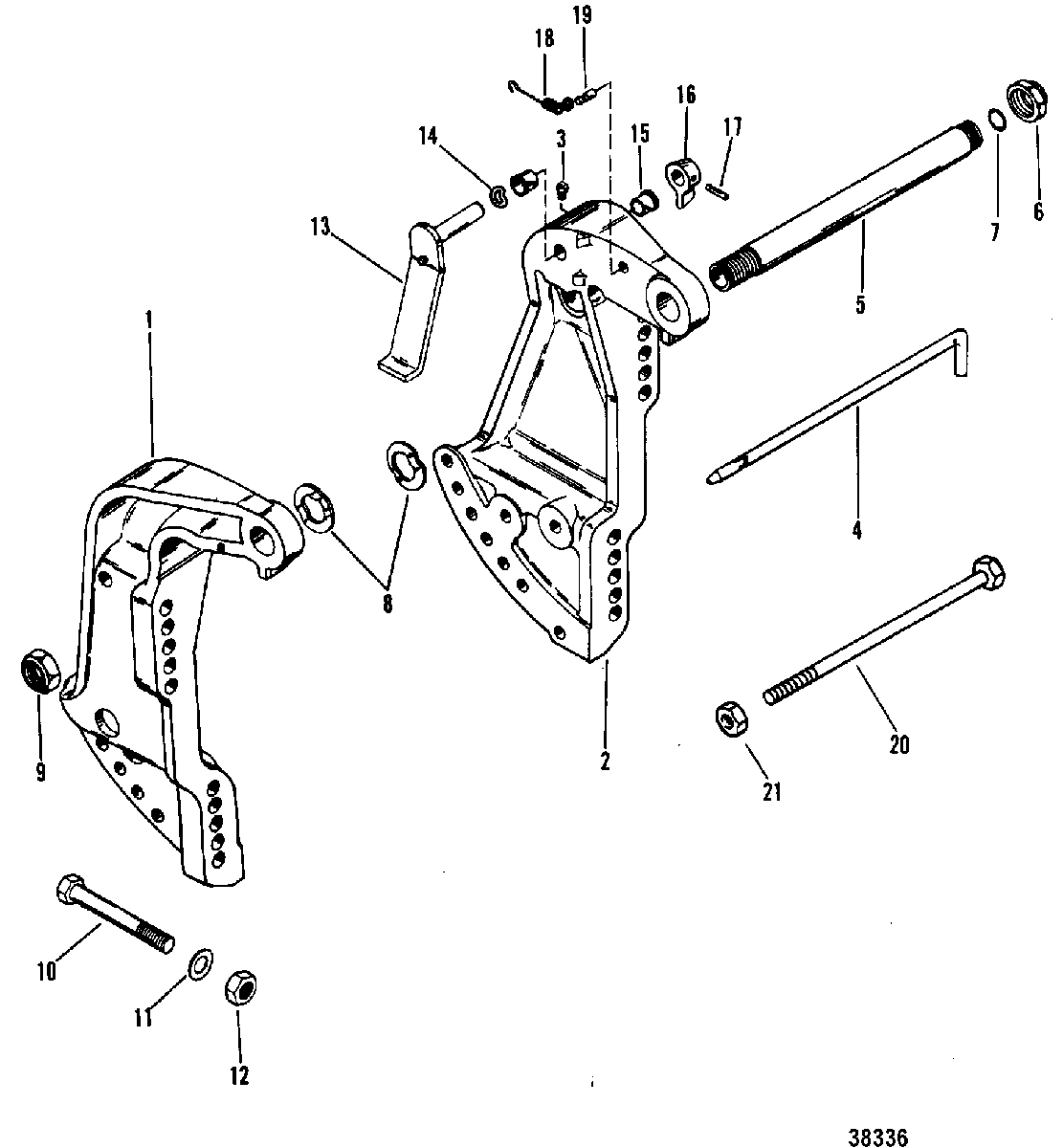

TRANSOM BRACKET для Mariner - 75 (4 CYL.) 6432901 & Up
-
№АртикулНазвание
-
13401-8718F7 BRACKET ASSEMBLY, Transom (STARBOARD)
MERCURYBRACKET ASSEMBLY, Transom (STARBOARD)
MERCURY -
13401-8718F8 BRACKET ASSEMBLY, Transom (STARBOARD)
MARINERBRACKET ASSEMBLY, Transom (STARBOARD)
MARINER -
23400-8716A8 BRACKET ASSEMBLY, Transom (PORT)
MERCURYBRACKET ASSEMBLY, Transom (PORT)
MERCURY -
23400-8716A9 BRACKET ASSEMBLY, Transom (PORT)
MARINERBRACKET ASSEMBLY, Transom (PORT)
MARINER -
322-98727 FITTING, Grease, PORT TRANSOM BRACKETFITTING, Grease, PORT TRANSOM BRACKET
-
417-8M0026068 PIN ASSEMBLY, Tilt Lock (NON-POWER TRIM)PIN ASSEMBLY, Tilt Lock (NON-POWER TRIM)
-
5826125A1 TILT TUBETILT TUBE
-
611-82671327 NUT, (1.00-14), TILT TUBENUT, (1.00-14), TILT TUBE
-
725-45711 O-RING, (.612 x .103), TILT TUBEO-RING, (.612 x .103), TILT TUBE
-
813-88750 WASHER, TILT TUBEWASHER, TILT TUBE
-
911-858869 NUT, (.875-14), TILT TUBENUT, (.875-14), TILT TUBE
-
1010-677551 SCREW, (.500-20 x 4.500), TRANSOM BRACKET TO TRANSOMSCREW, (.500-20 x 4.500), TRANSOM BRACKET TO TRANSOM
-
1112-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM BRACKET BOLTWASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM BRACKET BOLT
-
1211-91962 NUT, (.500-20), TRANSOM BRACKET BOLTNUT, (.500-20), TRANSOM BRACKET BOLT
-
138M0115104 LEVER ASSEMBLY, TILT LOCKLEVER ASSEMBLY, TILT LOCK
-
1413-99611 WAVE WASHER, TILT LEVERWAVE WASHER, TILT LEVER
-
1523-65830 NYLINER, TILT LEVERNYLINER, TILT LEVER
-
1699633 KNOB, TILT LOCK LEVER
(MERCURY)KNOB, TILT LOCK LEVER
(MERCURY) -
1699633 KNOB, TILT LOCK LEVER
(MARINER)KNOB, TILT LOCK LEVER
(MARINER) -
1717-99615 PIN, GroovePIN, Groove
-
1824-99622 SPRINGSPRING
-
1917-99604 PIN, GroovePIN, Groove
-
2010-96930A1 BOLT ASSEMBLY, TILT LOCKBOLT ASSEMBLY, TILT LOCK
-
2111-23161 NUT, (.375-24)NUT, (.375-24)
