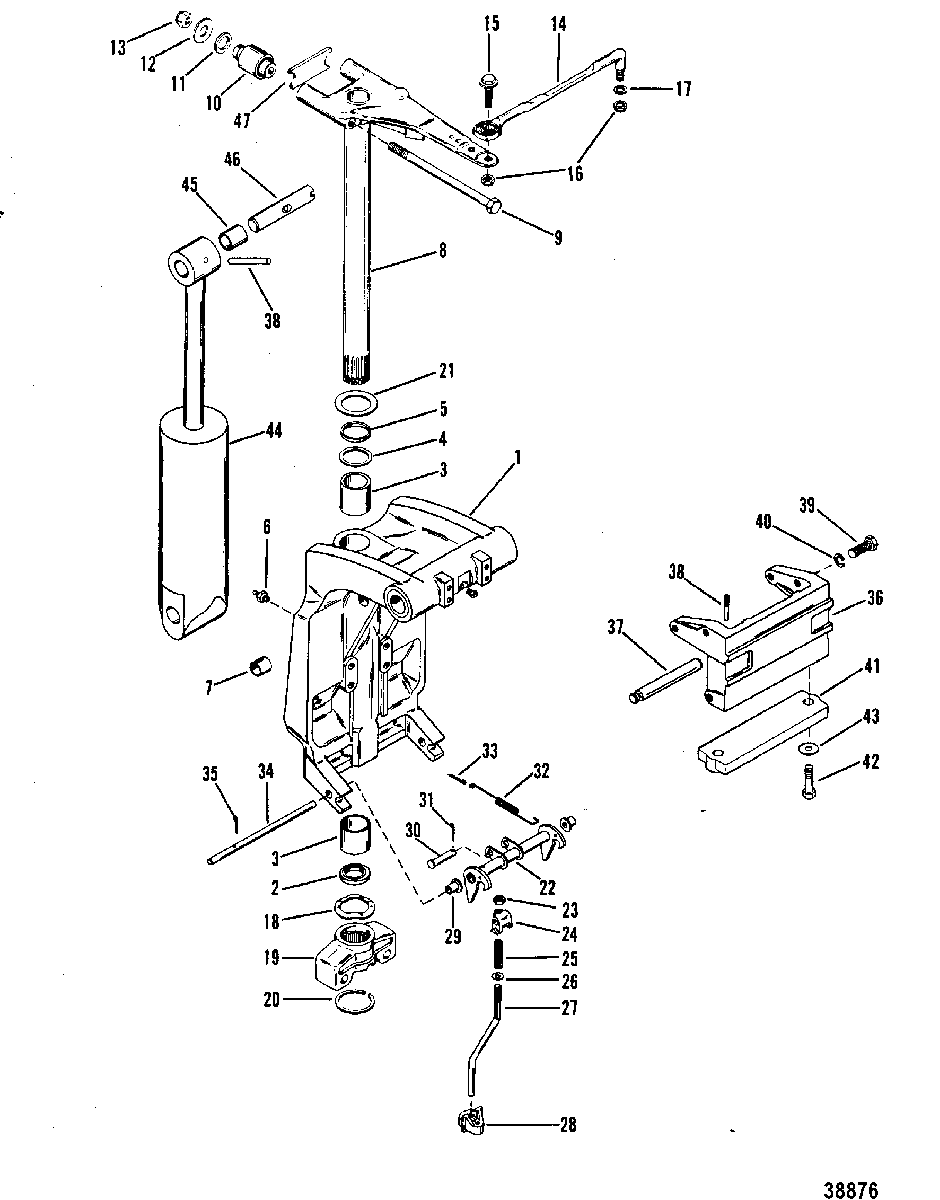

SWIVEL BRACKET AND STEERING ARM для Mariner - 75 (4 CYL.) 9393856 & Up
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
226-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)SEAL, Oil, SWIVEL BRACKET (LOWER)
-
323-818764 BUSHING, SWIVEL BRACKET - LOWER AND UPPERBUSHING, SWIVEL BRACKET - LOWER AND UPPER
-
425-33466 O-RING, SWIVEL BRACKET - UPPERO-RING, SWIVEL BRACKET - UPPER
-
523-67668 SPACER, SWIVEL BRACKET - UPPERSPACER, SWIVEL BRACKET - UPPER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
899661A2 SWIVEL PIN ASSEMBLYSWIVEL PIN ASSEMBLY
-
910-99621 SCREW, (.437-20 x 6.620), STEERING ARM TO UPPER MOUNTSCREW, (.437-20 x 6.620), STEERING ARM TO UPPER MOUNT
-
1075296 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
1112-47840 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1212-31263 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1311-34933 NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLTNUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
-
1492876A12 LINK ASSEMBLY, SteeringLINK ASSEMBLY, Steering
-
1510-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
1611-8M0042636 NUT, (.375-24), STEERING LINK SCREWNUT, (.375-24), STEERING LINK SCREW
-
1712-34931 WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARMWASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
-
1813-78854 WAVE WASHER, BOTTOM YOKEWAVE WASHER, BOTTOM YOKE
-
1999644F1 YOKE, Bottom
(MERCURY)YOKE, Bottom
(MERCURY) -
1999644F2 YOKE, Bottom
(MARINER)YOKE, Bottom
(MARINER) -
2053-67684 RING, Retaining, BOTTOM YOKERING, Retaining, BOTTOM YOKE
-
2112-67670 WASHER, THRUST - SWIVEL BRACKETWASHER, THRUST - SWIVEL BRACKET
-
2214664A2 LOCK, Reverse
NOT USED WITH POWER TRIMLOCK, Reverse
NOT USED WITH POWER TRIM -
2311-82670911 NUT, (.312-24) Stainless Steel, JAM - PUSH ROD
NOT USED WITH POWER TRIMNUT, (.312-24) Stainless Steel, JAM - PUSH ROD
NOT USED WITH POWER TRIM -
24996361 YOKE, PUSH ROD
NOT USED WITH POWER TRIMYOKE, PUSH ROD
NOT USED WITH POWER TRIM -
2524-44297 SPRING, PUSH ROD NUT
NOT USED WITH POWER TRIMSPRING, PUSH ROD NUT
NOT USED WITH POWER TRIM -
2612-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD
NOT USED WITH POWER TRIMWASHER, (.323 x .563 x .063) Stainless Steel, PUSH ROD
NOT USED WITH POWER TRIM -
2743414 PUSH ROD
NOT USED WITH POWER TRIMPUSH ROD
NOT USED WITH POWER TRIM -
2892704 GUIDE, PUSH ROD
NOT USED WITH POWER TRIMGUIDE, PUSH ROD
NOT USED WITH POWER TRIM -
2923-69132 BUSHING, REVERSE LOCK SHAFT
NOT USED WITH POWER TRIMBUSHING, REVERSE LOCK SHAFT
NOT USED WITH POWER TRIM -
3017-99663 PIN, Clevis, REVERSE LOCK
NOT USED WITH POWER TRIMPIN, Clevis, REVERSE LOCK
NOT USED WITH POWER TRIM -
3118-25191 COTTER PIN, CLEVIS PIN
NOT USED WITH POWER TRIMCOTTER PIN, CLEVIS PIN
NOT USED WITH POWER TRIM -
3224-996261 SPRING, REVERSE LOCK
NOT USED WITH POWER TRIMSPRING, REVERSE LOCK
NOT USED WITH POWER TRIM -
3318-47959 COTTER PIN, SPRING
NOT USED WITH POWER TRIMCOTTER PIN, SPRING
NOT USED WITH POWER TRIM -
3499606 SHAFT, REVERSE LOCK
NOT USED WITH POWER TRIMSHAFT, REVERSE LOCK
NOT USED WITH POWER TRIM -
3518-45882 COTTER PIN, SHAFT
NOT USED WITH POWER TRIMCOTTER PIN, SHAFT
NOT USED WITH POWER TRIM -
3699653 BRACKET, SHOCK ABSORBER
NOT USED WITH POWER TRIMBRACKET, SHOCK ABSORBER
NOT USED WITH POWER TRIM -
3799619 SHAFT, SHOCK ABSORBER (LOWER)
NOT USED WITH POWER TRIMSHAFT, SHOCK ABSORBER (LOWER)
NOT USED WITH POWER TRIM -
3817-821539 PIN, Groove, SHOCK ABSORBER
NOT USED WITH POWER TRIMPIN, Groove, SHOCK ABSORBER
NOT USED WITH POWER TRIM -
3910-4000377 SCREW, (M10 x 30), BRACKETSCREW, (M10 x 30), BRACKET
-
4013-400258 LOCKWASHER, (M10) Stainless Steel, BRACKET SCREWLOCKWASHER, (M10) Stainless Steel, BRACKET SCREW
-
4197-818298Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
4210-4000332 SCREW, (M6 x 35), ANODESCREW, (M6 x 35), ANODE
-
4312-29245 WASHER, (.281 x .500 x .060) Stainless Steel, ANODE SCREWWASHER, (.281 x .500 x .060) Stainless Steel, ANODE SCREW
-
4455-99724T15 SHOCK ABSORBER
(MERCURY) NOT USED WITH POWER TRIMSHOCK ABSORBER
(MERCURY) NOT USED WITH POWER TRIM -
4455-99724T15 SHOCK ABSORBER
(MARINER) NOT USED WITH POWER TRIMSHOCK ABSORBER
(MARINER) NOT USED WITH POWER TRIM -
4523-821207 BUSHING, SHOCK ABSORBER
NOT USED WITH POWER TRIMBUSHING, SHOCK ABSORBER
NOT USED WITH POWER TRIM -
4699625002 SHAFT, SHOCK ABSORBER (UPPER)
NOT USED WITH POWER TRIMSHAFT, SHOCK ABSORBER (UPPER)
NOT USED WITH POWER TRIM -
4728203 BUMPER, TOP YOKEBUMPER, TOP YOKE
-
-41760A2 REPAIR KIT, Shock AbsorberREPAIR KIT, Shock Absorber
-
-27-73645A87 GASKET SETGASKET SET
