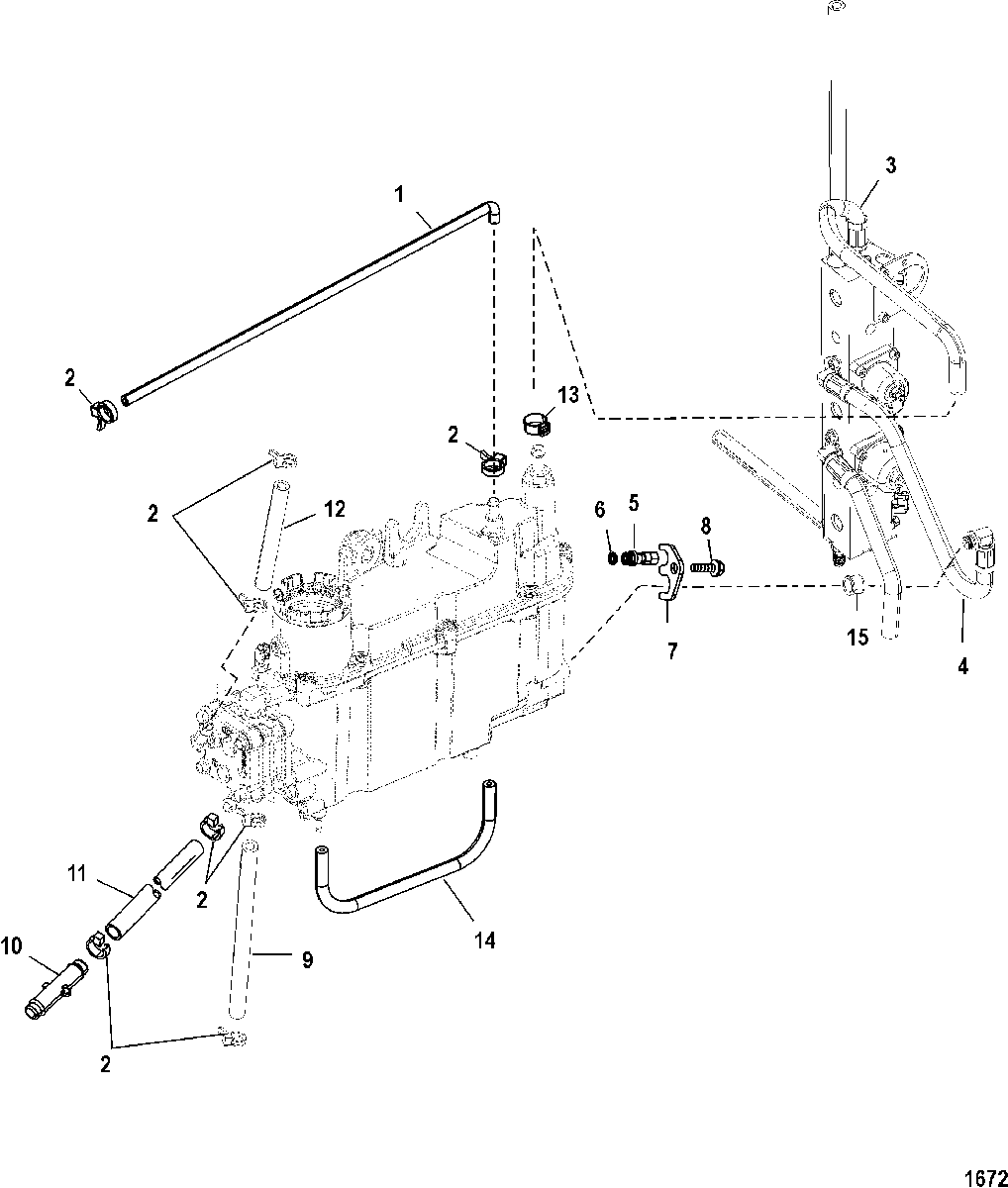

Fuel System для Mariner - 75 DFI (3 CYL.)(1.5L) 1B227000 THRU 1B417701
-
№АртикулНазвание
-
132-889712001 HOSE, Vent, To Vent FittingHOSE, Vent, To Vent Fitting
-
254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
38M6005205 HOSE ASSEMBLY, Fuel SupplyHOSE ASSEMBLY, Fuel Supply
-
432-8M6001913 HOSE ASSEMBLY, Fuel By-PassHOSE ASSEMBLY, Fuel By-Pass
-
5884820 SHRADER VALVESHRADER VALVE
-
625-891778 O-RINGO-RING
-
754-884819 CLIPCLIP
-
810-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
932-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 6-1/2 Inches) To CrankcaseTUBING, (.312) (70.00 Inches Bulk) (Cut to 6-1/2 Inches) To Crankcase
-
1022-822769 CONNECTORCONNECTOR
-
1132-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 28 Inches)TUBING, (.312) (70.00 Inches Bulk) (Cut to 28 Inches)
-
1232-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 8-1/2 Inches)TUBING, (.312) (70.00 Inches Bulk) (Cut to 8-1/2 Inches)
-
1354-856880 CLAMP, Hose (15.3)CLAMP, Hose (15.3)
-
1432-883545002 HOSEHOSE
-
1526-888852 SEAL, Fuel DirectorSEAL, Fuel Director
