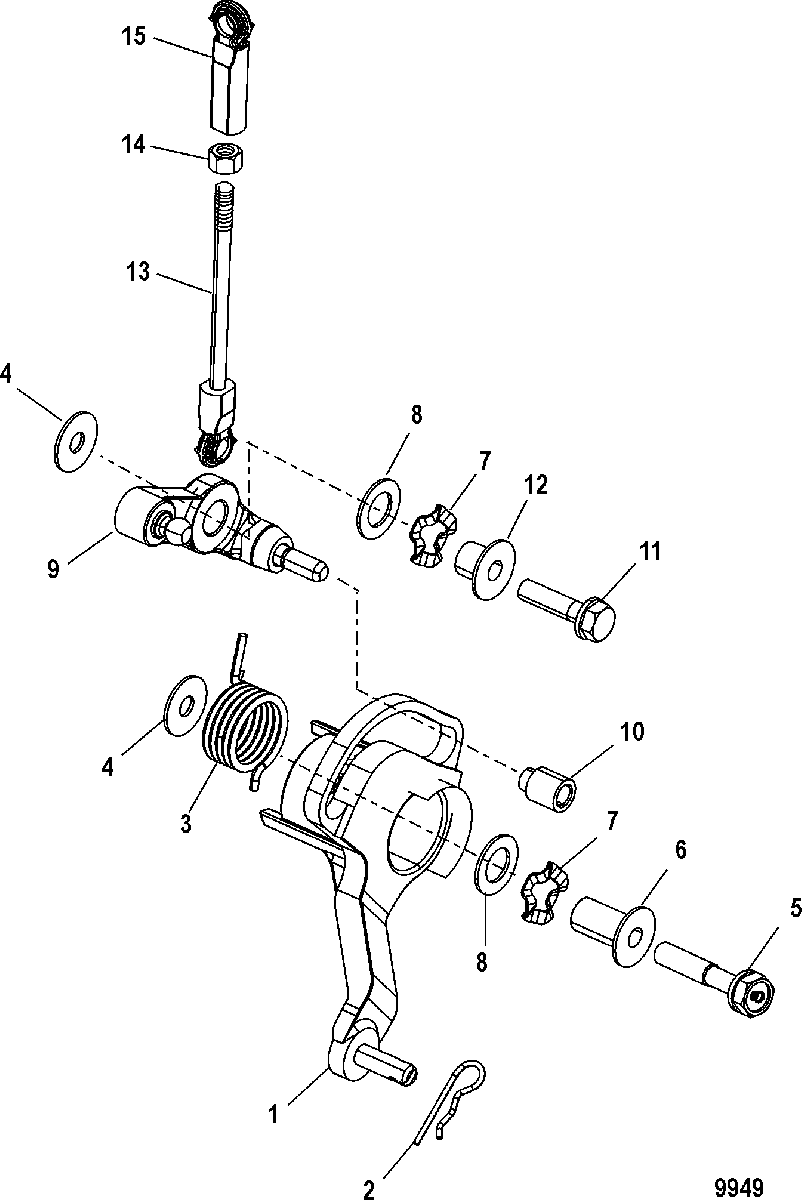

Throttle Lever and Linkage для Mariner - 75 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
1896936 LEVER, Throttle ControlLEVER, Throttle Control
-
218-892655T HAIR PINHAIR PIN
-
324-897535005 SPRING, Throttle Cam ReturnSPRING, Throttle Cam Return
-
412-94524M WASHERWASHER
-
510-881375 BOLT, (M6 x 30)BOLT, (M6 x 30)
-
623-881378 COLLARCOLLAR
-
713-81868M WAVE WASHERWAVE WASHER
-
812-84974M WASHERWASHER
-
9896937 LEVER, Throttle ActuatorLEVER, Throttle Actuator
-
1023-8813321 BUSHINGBUSHING
-
1110-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
1223-804344002 COLLARCOLLAR
-
1397742001 LINK, JointLINK, Joint
-
1411-82388M NUT, (M5)NUT, (M5)
-
1584100M RETAINERRETAINER
