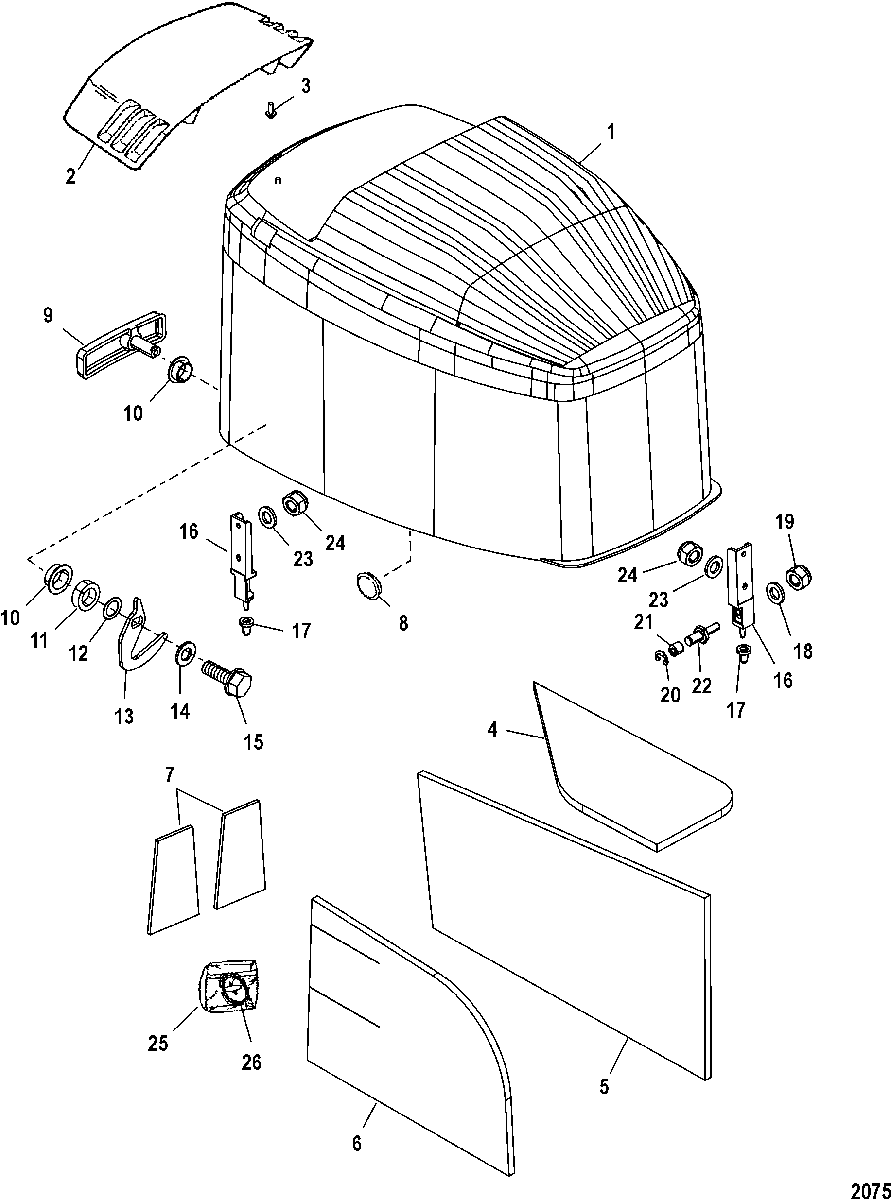

Top Cowl для Mariner - 75 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
14021-896920T17 TOP COWL ASSEMBLY
(Mercury) SN# 1B226999 & BelowTOP COWL ASSEMBLY
(Mercury) SN# 1B226999 & Below -
14021-896920T17 TOP COWL ASSEMBLY
(Mercury) SN# 1B227000 & UpTOP COWL ASSEMBLY
(Mercury) SN# 1B227000 & Up -
14021-896920T18 TOP COWL ASSEMBLY
(Mariner) SN# 1B226999 & BelowTOP COWL ASSEMBLY
(Mariner) SN# 1B226999 & Below -
14021-896920T18 TOP COWL ASSEMBLY
(Mariner) SN# 1B227000 & UpTOP COWL ASSEMBLY
(Mariner) SN# 1B227000 & Up -
2821256T03 INLET, Air - Black
(Mercury)INLET, Air - Black
(Mercury) -
2821256T2 INLET, Air - Silver
(Mariner)INLET, Air - Silver
(Mariner) -
310-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4859356A02 SOUND BLANKET KIT
SN# 1B226999 & BelowSOUND BLANKET KIT
SN# 1B226999 & Below -
4859356A02 SOUND BLANKET KIT
SN# 1B227000 & UpSOUND BLANKET KIT
SN# 1B227000 & Up -
5NSS NOT SOLD SEPARATE, Sound Blanket-PortNOT SOLD SEPARATE, Sound Blanket-Port
-
6NSS NOT SOLD SEPARATE, Sound Blanket-StarboardNOT SOLD SEPARATE, Sound Blanket-Starboard
-
7NSS NOT SOLD SEPARATE, Sound Blanket-BackNOT SOLD SEPARATE, Sound Blanket-Back
-
819-823865 CAP PLUGCAP PLUG
-
9831207A16 HANDLEHANDLE
-
1023-812707 BUSHINGBUSHING
-
1123-831214 SPACERSPACER
-
1213-12134 WASHER, WaveWASHER, Wave
-
138M0001081 CAMCAM
-
1412-4002316 WASHERWASHER
-
1510-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
168M0036792 BRACKET, FrontBRACKET, Front
-
17815477 BUMPER, LatchBUMPER, Latch
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1911-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2053-8237951 RING, RetainingRING, Retaining
-
21815263 ROLLERROLLER
-
228155381 PIN, RollPIN, Roll
-
2312-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2411-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2547341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
-
2650-12066Q10 ROPE, Starter
(Quicksilver Branded)ROPE, Starter
(Quicksilver Branded) -
2650-12066Q10 ROPE, Starter
(Mercury Branded)ROPE, Starter
(Mercury Branded) -
-37-8M0114993 DECAL SET
(Mercury 75)DECAL SET
(Mercury 75) -
-37-804856A06 DECAL SET
(Mariner 75)DECAL SET
(Mariner 75) -
-37-8M0114993 DECAL SET
(Mercury 80 EU)DECAL SET
(Mercury 80 EU) -
-37-898133A06 DECAL SET
(Mariner 80 EU)DECAL SET
(Mariner 80 EU) -
-37-8M0114993 DECAL SET
(Mercury 90)DECAL SET
(Mercury 90) -
-37-804858A06 DECAL SET
(Mariner 90)DECAL SET
(Mariner 90) -
-37-8M0114993 DECAL SET
(Mercury 100 EU)DECAL SET
(Mercury 100 EU) -
-37-898134A06 DECAL SET
(Mariner 100 EU)DECAL SET
(Mariner 100 EU)
