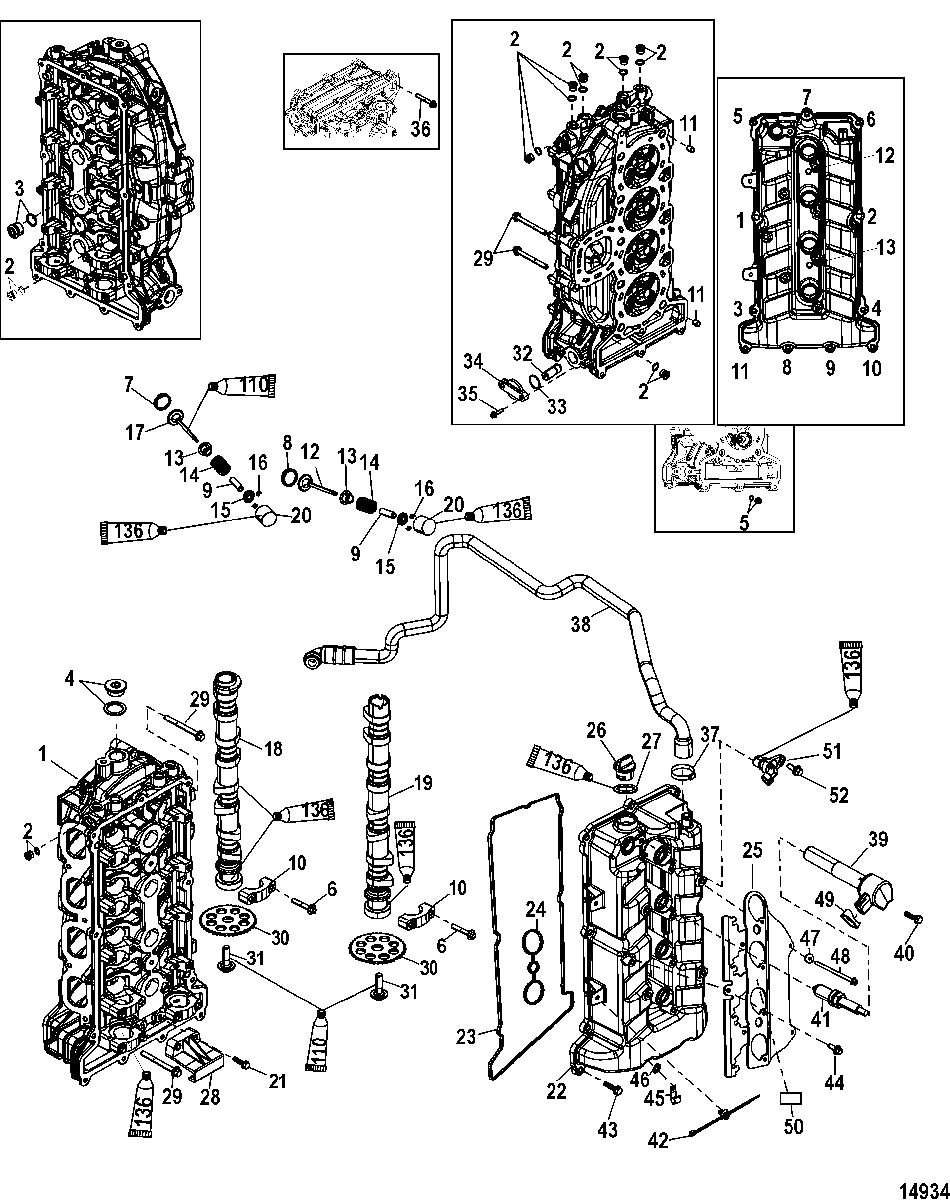

Cylinder Head and Camshaft для Mariner - 75 EFI (4-STROKE) 1B366823 THRU 2B094995
-
№АртикулНазвание
-
1900-8M0110154 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
219-889767 PLUG, (12 mm)PLUG, (12 mm)
-
319-891953 PLUG, (18 mm)PLUG, (18 mm)
-
419-896951 PLUG, (24 mm)PLUG, (24 mm)
-
519-8M0087446 PLUG, (10 mm)PLUG, (10 mm)
-
610-892454035 BOLT, (M6 x 36 MM)BOLT, (M6 x 36 MM)
-
7880533 SEAT, Intake ValveSEAT, Intake Valve
-
88M0089477 SEAT, Exhaust ValveSEAT, Exhaust Valve
-
9880537 GUIDE, Intake and Exhaust ValvesGUIDE, Intake and Exhaust Valves
-
10NSS NOT SOLD SEPARATE, CAPNOT SOLD SEPARATE, CAP
-
1117-880524 PIN, Dowel (14 mm)PIN, Dowel (14 mm)
-
1220-898908 VALVE, Exhaust
SN# 1B493701 & BelowVALVE, Exhaust
SN# 1B493701 & Below -
1220-898908 VALVE, Exhaust
SN# 1B493702 & UpVALVE, Exhaust
SN# 1B493702 & Up -
1326-896880 SEAL, ValveSEAL, Valve
-
1424-8M0103092 SPRING, Intake and Exhaust ValveSPRING, Intake and Exhaust Valve
-
158M0908500 RETAINER ASSEMBLY, ValvesRETAINER ASSEMBLY, Valves
-
1628-880543 KEYKEY
-
1720-898907 VALVE, Intake
SN# 1B493701 & BelowVALVE, Intake
SN# 1B493701 & Below -
1720-898907 VALVE, Intake
SN# 1B493702 & UpVALVE, Intake
SN# 1B493702 & Up -
18400-898397A04 CAMSHAFT ASSEMBLY, IntakeCAMSHAFT ASSEMBLY, Intake
-
18400-898397A02 CAMSHAFT ASSEMBLY, Intake 75/80/90/100CAMSHAFT ASSEMBLY, Intake 75/80/90/100
-
19400-898077A02 CAMSHAFT ASSEMBLY, ExhaustCAMSHAFT ASSEMBLY, Exhaust
-
20899912001 TAPPET
(2.996)TAPPET
(2.996) -
20899912002 TAPPET
(3.021)TAPPET
(3.021) -
20899912003 TAPPET
(3.046)TAPPET
(3.046) -
20899912004 TAPPET
(3.071)TAPPET
(3.071) -
20899912005 TAPPET
(3.096)TAPPET
(3.096) -
20899912006 TAPPET
(3.118)TAPPET
(3.118) -
20899912007 TAPPET
(3.138)TAPPET
(3.138) -
20899912008 TAPPET
(3.158)TAPPET
(3.158) -
20899912009 TAPPET
(3.178)TAPPET
(3.178) -
20899912010 TAPPET
(3.198)TAPPET
(3.198) -
20899912011 TAPPET
(3.218)TAPPET
(3.218) -
20899912012 TAPPET
(3.238)TAPPET
(3.238) -
20899912013 TAPPET
(3.258)TAPPET
(3.258) -
20899912014 TAPPET
(3.278)TAPPET
(3.278) -
20899912015 TAPPET
(3.298)TAPPET
(3.298) -
20899912016 TAPPET
(3.318)TAPPET
(3.318) -
20899912017 TAPPET
(3.338)TAPPET
(3.338) -
20899912018 TAPPET
(3.358)TAPPET
(3.358) -
20899912019 TAPPET
(3.378)TAPPET
(3.378) -
20899912020 TAPPET
(3.398)TAPPET
(3.398) -
20899912021 TAPPET
(3.418)TAPPET
(3.418) -
20899912022 TAPPET
(3.438)TAPPET
(3.438) -
20899912023 TAPPET
(3.458)TAPPET
(3.458) -
20899912024 TAPPET
(3.478)TAPPET
(3.478) -
20899912025 TAPPET
(3.498)TAPPET
(3.498) -
20899912026 TAPPET
(3.518)TAPPET
(3.518) -
20899912027 TAPPET
(3.538)TAPPET
(3.538) -
20899912028 TAPPET
(3.558)TAPPET
(3.558) -
20899912029 TAPPET
(3.578)TAPPET
(3.578) -
20899912030 TAPPET
(3.598)TAPPET
(3.598) -
20899912031 TAPPET
(3.621)TAPPET
(3.621) -
20899912032 TAPPET
(3.646)TAPPET
(3.646) -
20899912033 TAPPET
(3.671)TAPPET
(3.671) -
20899912034 TAPPET
(3.696)TAPPET
(3.696) -
20899912035 TAPPET
(3.721)TAPPET
(3.721) -
2110-892454030 SCREW, (M6 x 30)
SN# 1B733388 & BelowSCREW, (M6 x 30)
SN# 1B733388 & Below -
22880553A07 COVER ASSEMBLY, Cam
SN# 1B461989 & BelowCOVER ASSEMBLY, Cam
SN# 1B461989 & Below -
22880553A07 COVER ASSEMBLY, Cam
SN# 0P512812 & BelowCOVER ASSEMBLY, Cam
SN# 0P512812 & Below -
22880553T06 COVER ASSEMBLY, Cam
SN# 1B461990 THRU 1B733388COVER ASSEMBLY, Cam
SN# 1B461990 THRU 1B733388 -
22880553T06 COVER ASSEMBLY, Cam
SN# 0P512813 & UpCOVER ASSEMBLY, Cam
SN# 0P512813 & Up -
22880553A07 COVER ASSEMBLY, Cam
SN# 1B733389 & UpCOVER ASSEMBLY, Cam
SN# 1B733389 & Up -
-880553T06 COVER, Cam
SN# 1B733389 & UpCOVER, Cam
SN# 1B733389 & Up -
23892893 SEALSEAL
-
24892584 SEALSEAL
-
258M0008370 PLATE ASSEMBLY, Coil
SN# 1B461989 & BelowPLATE ASSEMBLY, Coil
SN# 1B461989 & Below -
258M0008370 PLATE ASSEMBLY, Coil
SN# 0P512812 & BelowPLATE ASSEMBLY, Coil
SN# 0P512812 & Below -
258M0010552 PLATE ASSEMBLY, Coil
SN# 1B461990 & UpPLATE ASSEMBLY, Coil
SN# 1B461990 & Up -
258M0010552 PLATE ASSEMBLY, Coil
SN# 0P512813 & UpPLATE ASSEMBLY, Coil
SN# 0P512813 & Up -
26859578A1 PLUG ASSEMBLY, OilPLUG ASSEMBLY, Oil
-
2725-90196 O-RING, (.921 x .139)O-RING, (.921 x .139)
-
28880558 GUIDE, Short
SN# 1B733388 & BelowGUIDE, Short
SN# 1B733388 & Below -
2910-8M0103817 SCREW, (M8 x 60)SCREW, (M8 x 60)
-
3043-880550 SPROCKET, Cam DriveSPROCKET, Cam Drive
-
3110-8M0021532 SCREW, (M12 x 40)SCREW, (M12 x 40)
-
32898463A01 TENSIONER ASSEMBLYTENSIONER ASSEMBLY
-
3325-898836 O-RING, OrangeO-RING, Orange
-
341100-8M0064752 END CAP, TensionerEND CAP, Tensioner
-
3510-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
3610-8M0103809 SCREW, (M6 x 40 MM) Stainless SteelSCREW, (M6 x 40 MM) Stainless Steel
-
3754-888988019 CLAMP, (22.6 mm)CLAMP, (22.6 mm)
-
3832-897673A01 HOSE ASSEMBLY, BreatherHOSE ASSEMBLY, Breather
-
39339-880615T01 COIL ASSEMBLYCOIL ASSEMBLY
-
4010-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
4133-898829001 SPARK PLUG, (NGK#LFR4A)SPARK PLUG, (NGK#LFR4A)
-
4254-899145 CLIP, Tie StrapCLIP, Tie Strap
-
4310-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
4410-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
4554-55098 J CLIPJ CLIP
-
4613-93702 WASHER, (.250 External Star)WASHER, (.250 External Star)
-
4712-8M0008232 WASHERWASHER
-
488M0008535 SCREW, (M6 x 90)
SN# 1B461989 & BelowSCREW, (M6 x 90)
SN# 1B461989 & Below -
488M0008535 SCREW, (M6 x 90)
SN# 0P512812 & BelowSCREW, (M6 x 90)
SN# 0P512812 & Below -
4810-88552585 SCREW, (M6 x 85 MM) Stainless Steel
SN# 1B461990 & UpSCREW, (M6 x 85 MM) Stainless Steel
SN# 1B461990 & Up -
4810-88552585 SCREW, (M6 x 85 MM) Stainless Steel
SN# 0P512813 & UpSCREW, (M6 x 85 MM) Stainless Steel
SN# 0P512813 & Up -
4925-8M0119617 RING, Rubber, Anti-RotationRING, Rubber, Anti-Rotation
-
5037-8M0008936 DECAL, Coil Screw TorqueDECAL, Coil Screw Torque
-
518M0011987 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
5210-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
-27-897534A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-8M8033014 LONG BLOCK ASSEMBLY, 75/80/90/100LONG BLOCK ASSEMBLY, 75/80/90/100
-
-8M8033013 LONG BLOCK ASSEMBLY, 115LONG BLOCK ASSEMBLY, 115
