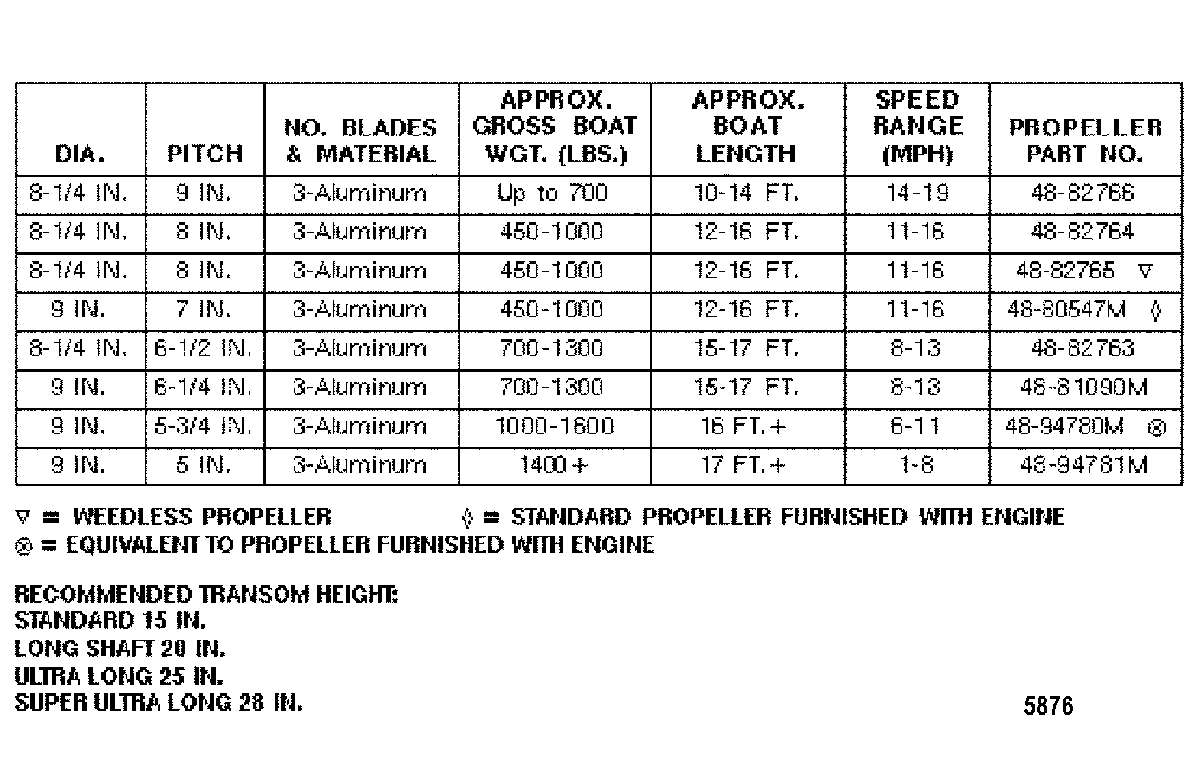

PROP CHART для Mariner - 8 K-LONG 680K-300302 & Up
-
№АртикулНазвание
-
-48-82766 PROPELLER
(9 IN. PITCH)PROPELLER
(9 IN. PITCH) -
-48-82764 PROPELLER
(8 IN. PITCH)PROPELLER
(8 IN. PITCH) -
-48-82765 PROPELLER
(8 IN. PITCH - WEEDLESS PROPELLER)PROPELLER
(8 IN. PITCH - WEEDLESS PROPELLER) -
-48-80547M PROPELLER
(7 IN. PITCH - STANDARD PROP)PROPELLER
(7 IN. PITCH - STANDARD PROP) -
-48-82763 PROPELLER
(6-1/2 IN. PITCH)PROPELLER
(6-1/2 IN. PITCH) -
-48-81090M PROPELLER
(6-1/4 IN. PITCH)PROPELLER
(6-1/4 IN. PITCH) -
-48-94780M PROPELLER
(5-3/4 IN. PITCH)PROPELLER
(5-3/4 IN. PITCH) -
-48-94781M PROPELLER
(5 IN. PITCH)PROPELLER
(5 IN. PITCH)
