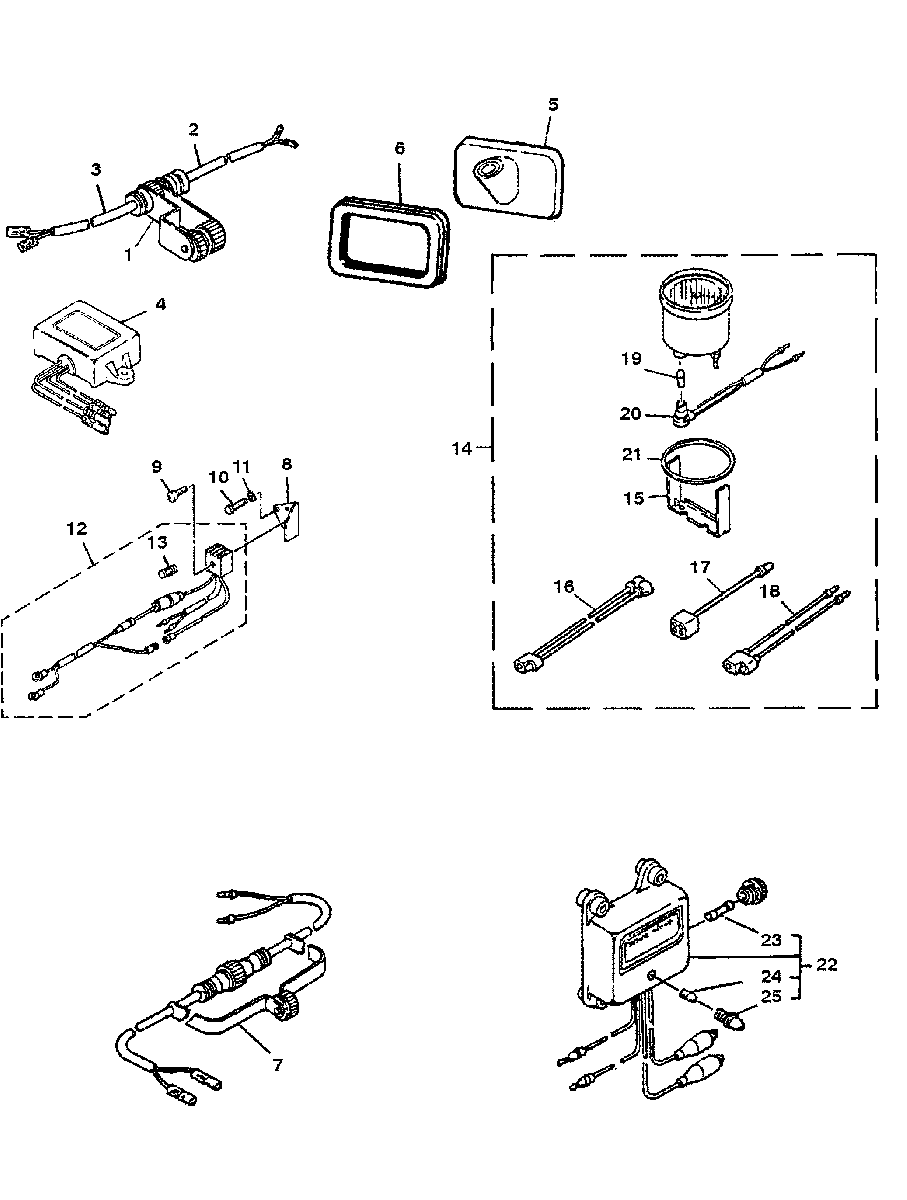

OPTIONAL PARTS для Mariner - 8 K 680-000551 THRU 680-001985 (M)
-
№АртикулНазвание
-
184-84124M CONNECTOR ASSY. (USED W/REMOTE KILL SWITCH)CONNECTOR ASSY. (USED W/REMOTE KILL SWITCH)
-
284-99051M CONNECTORCONNECTOR
-
384-99052M CONNECTORCONNECTOR
-
484125T VOLTAGE REGULATORVOLTAGE REGULATOR
-
597130M ROPE GUIDE
(M-000616 ML-304996 AND ABOVE)ROPE GUIDE
(M-000616 ML-304996 AND ABOVE) -
584126M ROPE GUIDE
(M-000615 ML-304995 AND BELOW)ROPE GUIDE
(M-000615 ML-304995 AND BELOW) -
626-83256M SEAL
(M-000616-001375 ML-304996-317964)SEAL
(M-000616-001375 ML-304996-317964) -
784-80052M CONNECTOR
(M-001376-001507 ML-317965-330468)CONNECTOR
(M-001376-001507 ML-317965-330468) -
884680M PLATEPLATE
-
910-83108M SCREWSCREW
-
1010-84088M BOLTBOLT
-
1112-82214M WASHERWASHER
-
1283-8M0060278 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
1388-81522M FUSEFUSE
-
1479-43984A1 TACHOMETER KIT
M-001375 ML-317964 AND BELOWTACHOMETER KIT
M-001375 ML-317964 AND BELOW -
1599058M PLATE
M-001375 ML-317964 AND BELOWPLATE
M-001375 ML-317964 AND BELOW -
1684-99059M WIRE
M-001375 ML-317964 AND BELOWWIRE
M-001375 ML-317964 AND BELOW -
1784-84353M CONNECTOR
M-001375 ML-317964 AND BELOWCONNECTOR
M-001375 ML-317964 AND BELOW -
1884-84352M EXTENSION
M-001375 ML-317964 AND BELOWEXTENSION
M-001375 ML-317964 AND BELOW -
1988-99055M BULB
M-001375 ML-317964 AND BELOWBULB
M-001375 ML-317964 AND BELOW -
2099056A1 SOCKET
M-001375 ML-317964 AND BELOWSOCKET
M-001375 ML-317964 AND BELOW -
2199057M DAMPER
M-001375 ML-317964 AND BELOWDAMPER
M-001375 ML-317964 AND BELOW -
2280713M RECTIFIER
M-001376 ML-317965 AND ABOVERECTIFIER
M-001376 ML-317965 AND ABOVE -
2388-83733M FUSE
M-001376 ML-317965 AND ABOVEFUSE
M-001376 ML-317965 AND ABOVE -
2488-83731M BULB
M-001376 ML-317965 AND ABOVEBULB
M-001376 ML-317965 AND ABOVE -
2583732M LENS
M-001376 ML-317965 AND ABOVELENS
M-001376 ML-317965 AND ABOVE
