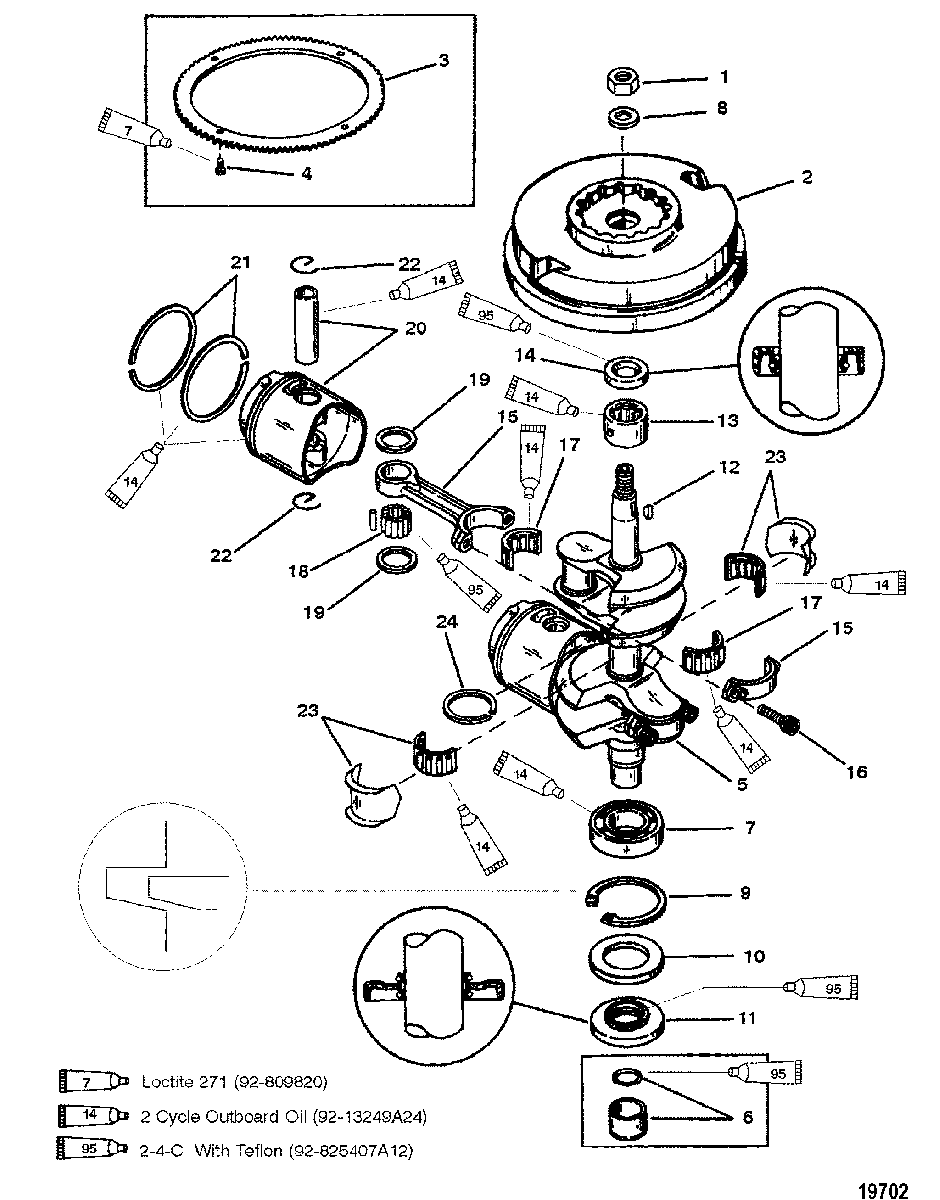

Crankshaft(6/8)(9.9-USA-0G112449/BEL-9831799 & Below) для Mariner - 8 0D281000 THRU 0G760299
-
№АртикулНазвание
-
111-818591 NUT, (M14)NUT, (M14)
-
2260-859231T19 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
343-99301 RING GEAR
ELECTRICRING GEAR
ELECTRIC -
410-88190313 SCREW, (M5 x 13)
ELECTRICSCREW, (M5 x 13)
ELECTRIC -
5400-8M0083309 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
6818630A1 SLEEVE (INCLUDES O-RING)SLEEVE (INCLUDES O-RING)
-
730-41341 BEARING, BallBEARING, Ball
-
812-824451 WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)
-
953-42132 RING, RetainingRING, Retaining
-
1012-13031 WASHERWASHER
-
1126-125661 SEAL, Oil - LowerSEAL, Oil - Lower
-
1228-20094 KEY, WoodruffKEY, Woodruff
-
1331-878158 BEARING, RollerBEARING, Roller
-
1426-125671 SEAL, Oil - UpperSEAL, Oil - Upper
-
15637-8477A2 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1610-823460 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
1731-42076A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1829-42186 BEARING, NeedleBEARING, Needle
-
1912-8M0012297 BEARING, ThrustBEARING, Thrust
-
20773-9756T2 PISTON ASSEMBLYPISTON ASSEMBLY
-
2139-18514A4 RING SET, PistonRING SET, Piston
-
2240-422021 LOCK RINGLOCK RING
-
2341373A1 BEARING KIT, Center MainBEARING KIT, Center Main
-
2426-818901 SEALSEAL
-
-12893T97 POWERHEAD ASSEMBLY
(6)POWERHEAD ASSEMBLY
(6) -
-811686T97 POWERHEAD ASSEMBLY
(8)POWERHEAD ASSEMBLY
(8) -
-19072T97 POWERHEAD ASSEMBLY
(9.9) SN# USA-0G112449/BEL-9831799 & BelowPOWERHEAD ASSEMBLY
(9.9) SN# USA-0G112449/BEL-9831799 & Below
