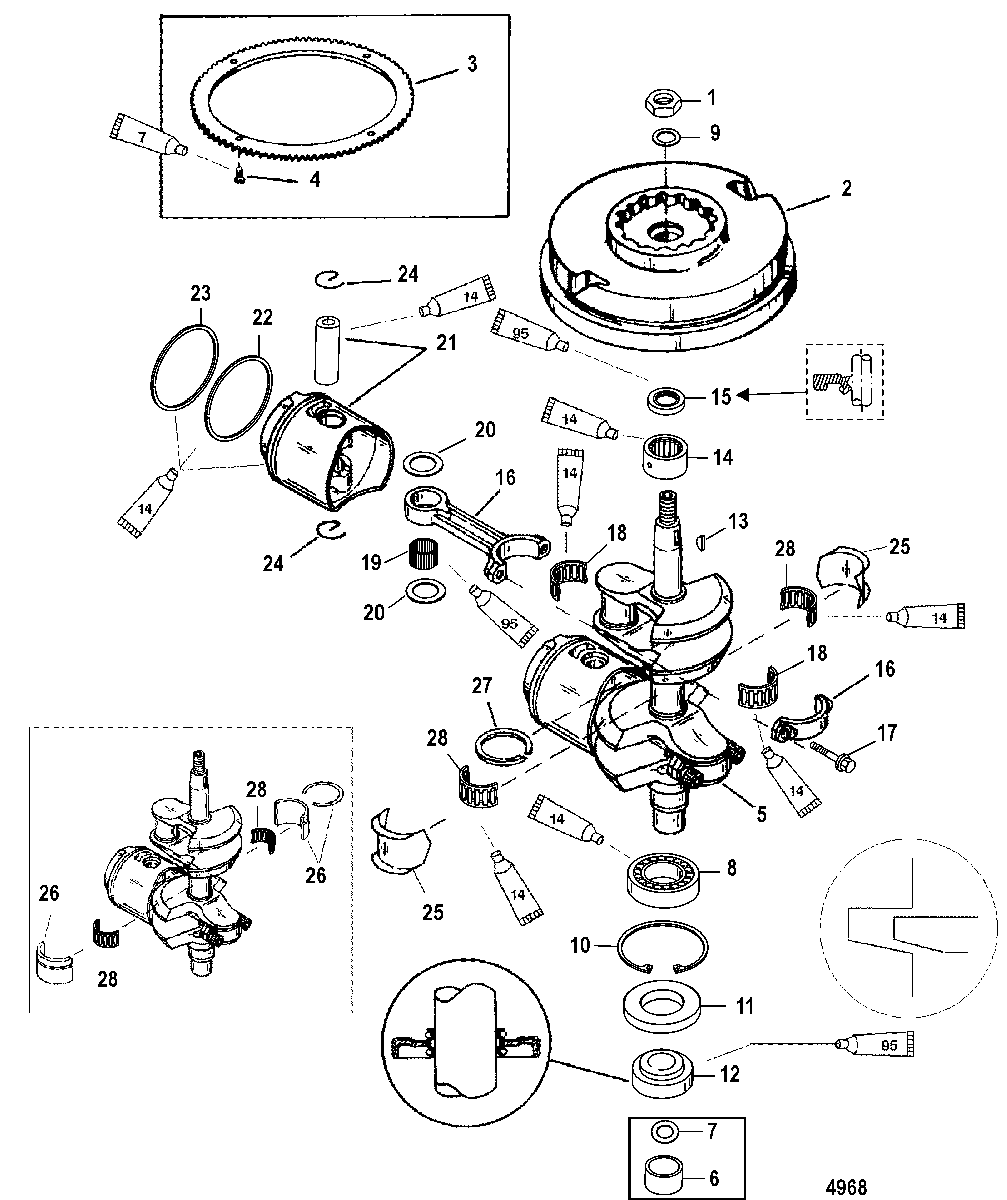

Crankshaft, Pistons and Flywheel для Mariner - 8 0P325500 & Up
-
№АртикулНазвание
-
111-818591 NUT, (M14)NUT, (M14)
-
2260-859231T18 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
343-99301 RING GEAR
(Electric)RING GEAR
(Electric) -
410-88190313 SCREW, (M5 x 13)
(Electric)SCREW, (M5 x 13)
(Electric) -
5400-8M0083309 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
6818630A1 SLEEVESLEEVE
-
7NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
830-41341 BEARING, BallBEARING, Ball
-
912-824451 WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)
-
1053-42132 RING, RetainingRING, Retaining
-
1112-13031 WASHERWASHER
-
1226-125661 SEAL, Oil - LowerSEAL, Oil - Lower
-
1328-20094 KEY, WoodruffKEY, Woodruff
-
1431-878158 BEARING, RollerBEARING, Roller
-
1526-125671 SEAL, Oil - UpperSEAL, Oil - Upper
-
16637-8477A2 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1710-823460 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
1831-42076A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1929-42186 BEARING, NeedleBEARING, Needle
-
2012-8M0012297 BEARING, ThrustBEARING, Thrust
-
21773-9756T2 PISTON ASSEMBLY
(8)PISTON ASSEMBLY
(8) -
21784-9747T2 PISTON ASSEMBLY
(9.9/15)(Standard)PISTON ASSEMBLY
(9.9/15)(Standard) -
21784-9747A4 PISTON ASSEMBLY
(9.9/15)(.015 Over Size)PISTON ASSEMBLY
(9.9/15)(.015 Over Size) -
2239-18514A4 RING SET, Piston
(8)RING SET, Piston
(8) -
2239-18212A4 RING SET, Piston
(9.9/15)(Standard)RING SET, Piston
(9.9/15)(Standard) -
2239-18212A1 RING SET, Piston
(9.9/15)(.015)(Over Size)RING SET, Piston
(9.9/15)(.015)(Over Size) -
23NSS NOT SOLD SEPARATE, Piston Ring-Top
(8)NOT SOLD SEPARATE, Piston Ring-Top
(8) -
23NSS NOT SOLD SEPARATE, Piston Ring-Top
(9.9/15)(Standard)NOT SOLD SEPARATE, Piston Ring-Top
(9.9/15)(Standard) -
2440-422021 LOCK RINGLOCK RING
-
2541373A1 BEARING KIT, Center Main
(6/8)BEARING KIT, Center Main
(6/8) -
2617794A1 BEARING
(9.9/15)BEARING
(9.9/15) -
2726-818901 SEALSEAL
-
2831-42076A1 BEARING ASSEMBLY, Roller
(9.9/15)BEARING ASSEMBLY, Roller
(9.9/15) -
-811686T97 POWERHEAD ASSEMBLY
(8)POWERHEAD ASSEMBLY
(8) -
-19072T97 POWERHEAD ASSEMBLY
(9.9/15)POWERHEAD ASSEMBLY
(9.9/15)
