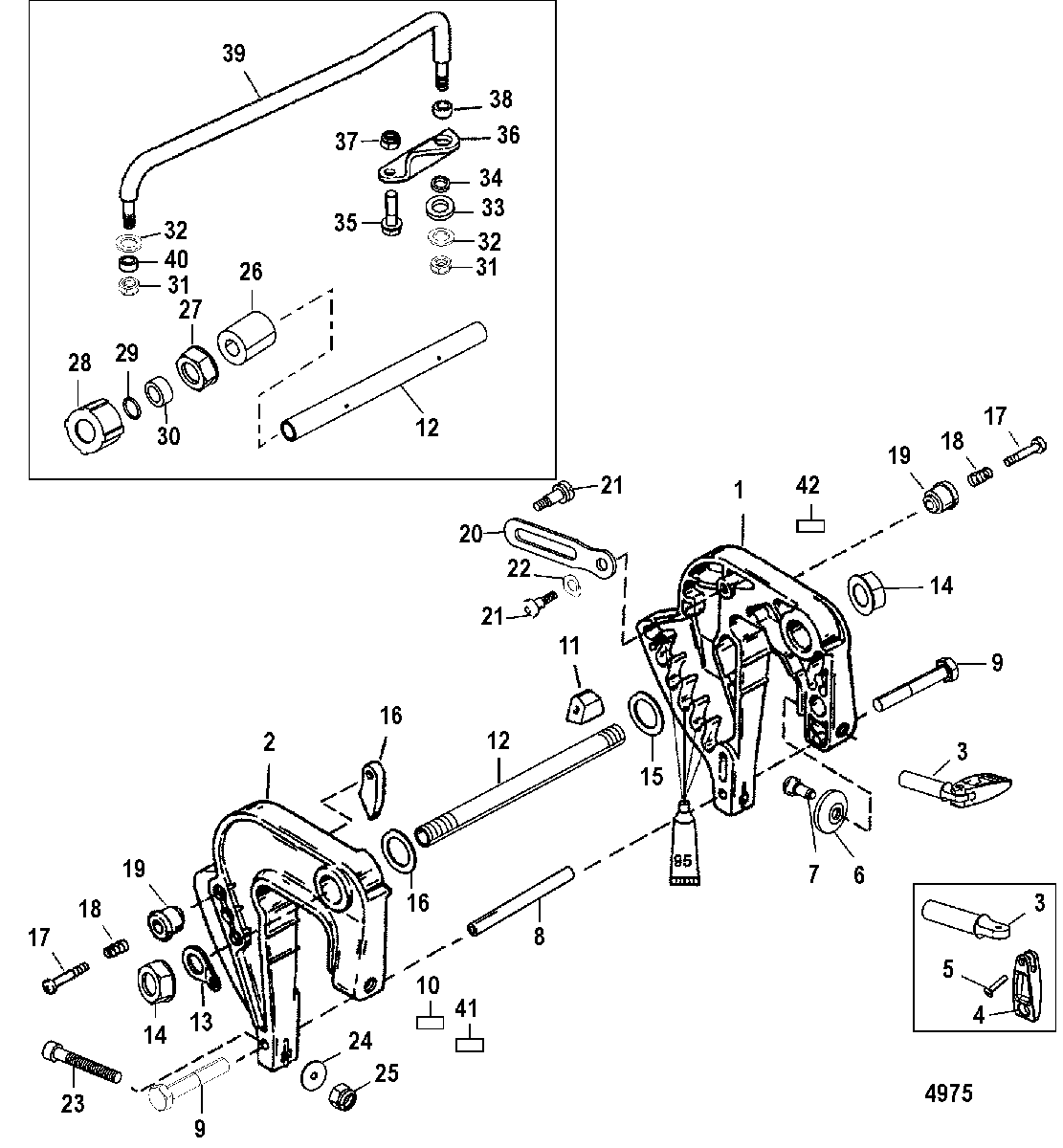

Clamp Bracket для Mariner - 8 1B000001 & Up

№

Артикул

Название
1

3404-8894A8 CLAMP BRACKET ASSEMBLY
(Black-Port)

CLAMP BRACKET ASSEMBLY
(Black-Port)

18 570 ₽
2

3403-8892A6 CLAMP BRACKET ASSEMBLY
(Black-Starboard)

CLAMP BRACKET ASSEMBLY
(Black-Starboard)

18 570 ₽
3

10-92767A3 THUMB SCREW ASSEMBLY, (16 mm)

THUMB SCREW ASSEMBLY, (16 mm)

2 970 ₽
4

NSS NOT SOLD SEPARATE, Handle

NOT SOLD SEPARATE, Handle

0 ₽
5

NSS NOT SOLD SEPARATE, Rivet

NOT SOLD SEPARATE, Rivet

0 ₽
6

12-818884 WASHER

WASHER

750 ₽
7

10-768042 SHOULDER SCREW, Hex

SHOULDER SCREW, Hex

120 ₽
8

23-8M0084719 SPACER

SPACER

990 ₽
9

10-4000333 SCREW, (M6 x 40)

SCREW, (M6 x 40)

290 ₽
10

37-12869 DECAL, Tilt Position

DECAL, Tilt Position

290 ₽
11

814427 SHUTTLE

SHUTTLE

300 ₽
12

42078 TILT TUBE
(Handle Models)

TILT TUBE
(Handle Models)

4 060 ₽
12

8M0041936 TILT TUBE
(RC Models)

TILT TUBE
(RC Models)

2 820 ₽
13

54-8M0085928 CLIP

CLIP

640 ₽
14

11-93164 NUT, (.875)

NUT, (.875)

340 ₽
15

12-71421 WASHER, Nylon

WASHER, Nylon

120 ₽
16

42390A1 LEVER ASSEMBLY, Tilt Return

LEVER ASSEMBLY, Tilt Return

1 040 ₽
17

NSS NOT SOLD SEPARATE, Screw (M5 X 35)

NOT SOLD SEPARATE, Screw (M5 X 35)

0 ₽
18

NSS NOT SOLD SEPARATE, Spring

NOT SOLD SEPARATE, Spring

0 ₽
19

NSS NOT SOLD SEPARATE, Knob

NOT SOLD SEPARATE, Knob

0 ₽
20

90901 STRAP, Port Side

STRAP, Port Side

1 410 ₽
21

10-42498 SCREW, (M6 x 1.0)

SCREW, (M6 x 1.0)

790 ₽
22

13-31030 WAVE WASHER

WAVE WASHER

140 ₽
23

10-43216 BOLT, (.250-20 x 3.50)

BOLT, (.250-20 x 3.50)

360 ₽
24

12-67983 WASHER

WASHER

210 ₽
25

11-8267118 NUT, (.250-20)

NUT, (.250-20)

360 ₽
26

23-113841 SPACER
(RC Models)

SPACER
(RC Models)

1 180 ₽
27

11-93164 NUT, (.875)
(RC Models)

NUT, (.875)
(RC Models)

340 ₽
28

19624A1 SEAL KIT
(RC Models)

SEAL KIT
(RC Models)

960 ₽
29

25-29619 O-RING, (.583 x .103)
(RC Models)

O-RING, (.583 x .103)
(RC Models)

170 ₽
30

23-78861 SPACER
(RC Models)

SPACER
(RC Models)

120 ₽
31

11-8M0042636 NUT, (.375-24) Stainless Steel
(RC Models)

NUT, (.375-24) Stainless Steel
(RC Models)

150 ₽
32

12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(RC Models)

WASHER, (.390 x .625 x .062) Stainless Steel
(RC Models)

50 ₽
33

12-30521 WASHER, (.97 x .56 x .19)
(RC Models)

WASHER, (.97 x .56 x .19)
(RC Models)

260 ₽
34

12-8M0109680 WASHER, (.390 x .546 x .12)
(RC Models)

WASHER, (.390 x .546 x .12)
(RC Models)

0 ₽
35

10-8240717 SCREW, (M8 x 30)
(RC Models)

SCREW, (M8 x 30)
(RC Models)

280 ₽
36

11607 BRACKET
(RC Models)

BRACKET
(RC Models)

4 950 ₽
37

11-401388 NUT, (M8) Stainless Steel
(RC Models)

NUT, (M8) Stainless Steel
(RC Models)

260 ₽
38

29698 BALL JOINT
(RC Models)

BALL JOINT
(RC Models)

1 130 ₽
39

11606A1 ATTACHING KIT, Starboard
(RC Models)

ATTACHING KIT, Starboard
(RC Models)

9 540 ₽
40

23-66751 SPACER, (.250 x .390 x .630) Stainless Steel
(RC Models)

SPACER, (.250 x .390 x .630) Stainless Steel
(RC Models)

950 ₽
41

NSS NOT SOLD SEPARATE, Decal-Lower Tilt Limit

NOT SOLD SEPARATE, Decal-Lower Tilt Limit

0 ₽
42

NSS NOT SOLD SEPARATE, Decal-Tilt Lock

NOT SOLD SEPARATE, Decal-Tilt Lock

0 ₽
