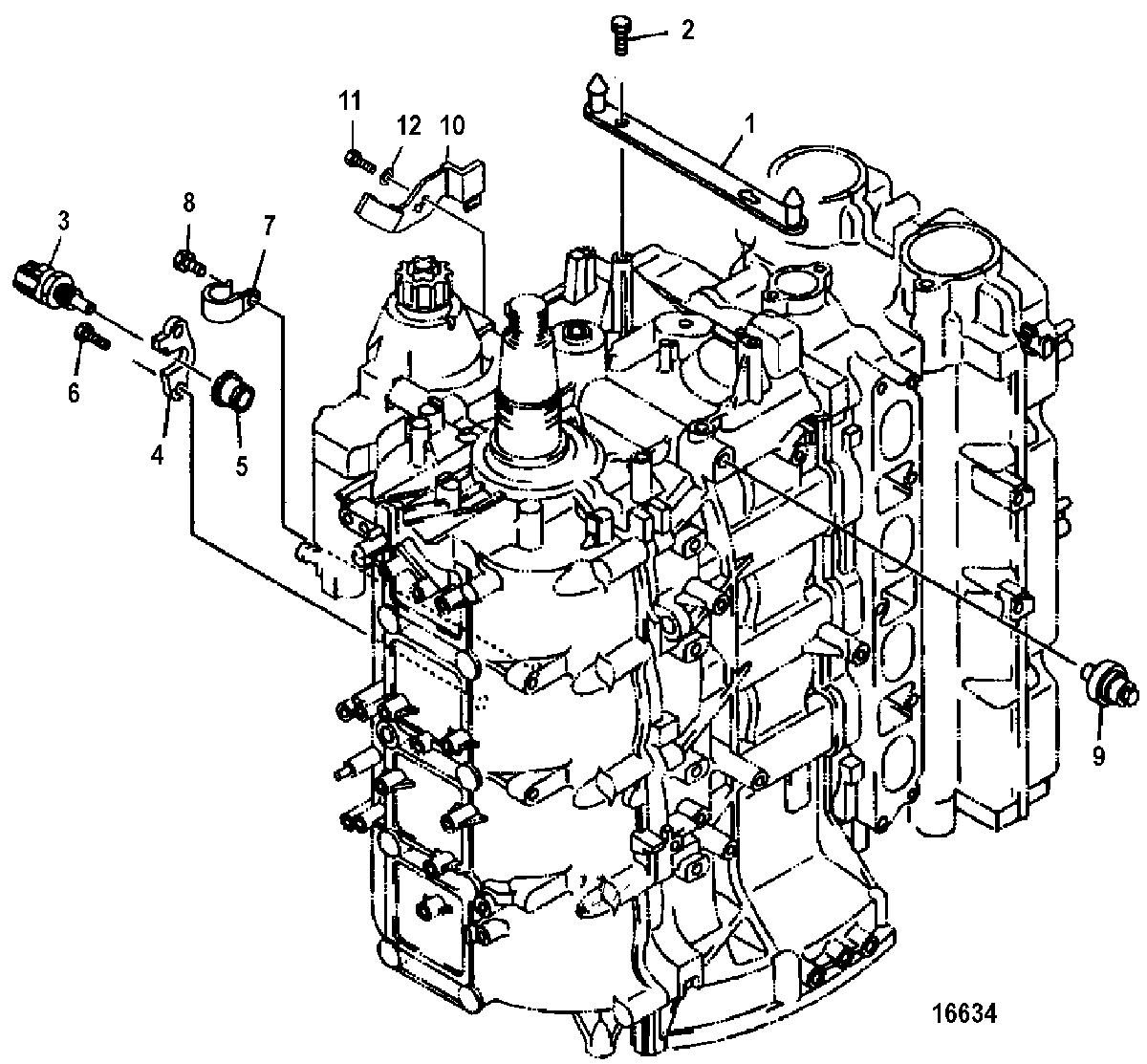

Sensors для Mariner - 80 EFI (4-STROKE) 1B227000 THRU 1B366822
-
№АртикулНазвание
-
1804294002 PLATEPLATE
-
210-811188T BOLT, (M6 x 16)BOLT, (M6 x 16)
-
3804295T THERMOSENSORTHERMOSENSOR
-
4804296 RETAINERRETAINER
-
527-8042971 GASKETGASKET
-
610-811188T BOLT, (M6 x 16)BOLT, (M6 x 16)
-
754-83577M CLAMPCLAMP
-
810-84088M SCREW, (M6 x 10)SCREW, (M6 x 10)
-
987-8043071 SWITCH, Oil PressureSWITCH, Oil Pressure
-
10881366003 BRACKET
(75/90)BRACKET
(75/90) -
1110-91772M BOLT
(75/90)BOLT
(75/90) -
1212-82214M WASHER
(75/90)WASHER
(75/90) -
-27-858732A03 GASKET SET, PowerheadGASKET SET, Powerhead
-
-8M0094898 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
