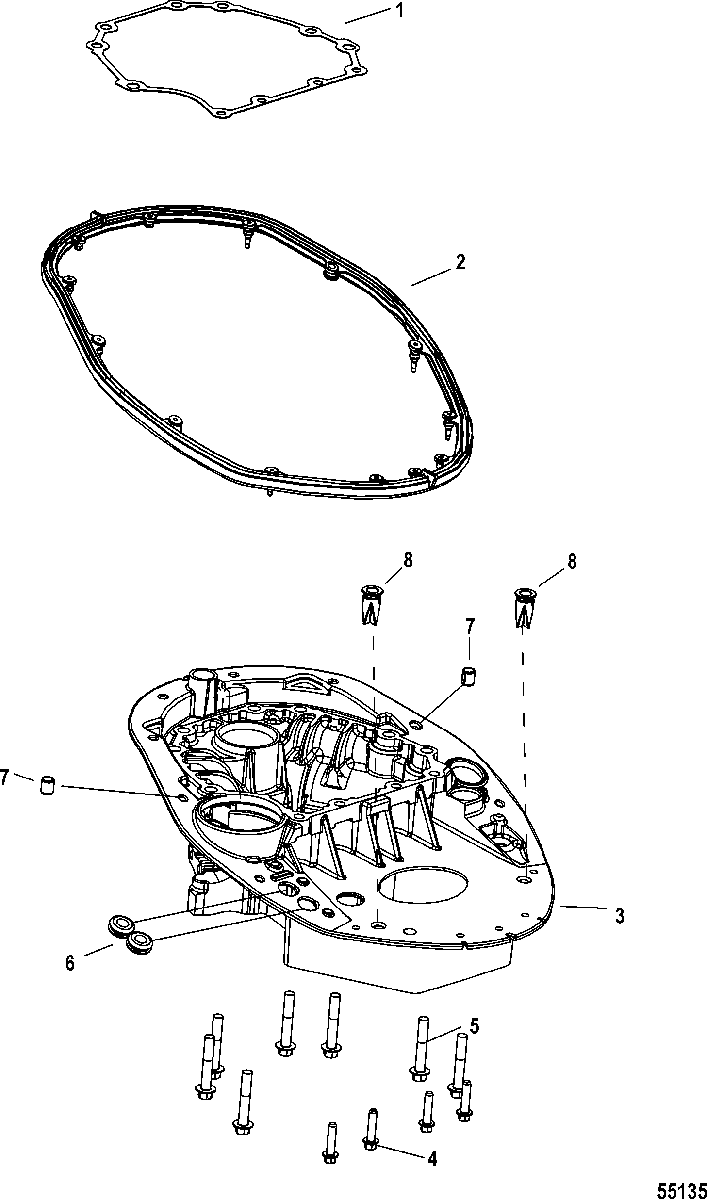

Adaptor Plate для Mariner - 80 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
127-8M0088745 GASKET - APAPTOR PLATE/BLOCKGASKET - APAPTOR PLATE/BLOCK
-
28M0055179 SEAL - ADAPTOR PLATESEAL - ADAPTOR PLATE
-
38M0119724 ADAPTOR PLATEADAPTOR PLATE
-
410-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
510-8M0069690 SCREW, (M10 X 1.5 X 60)SCREW, (M10 X 1.5 X 60)
-
625-8M0058484 GROMMETGROMMET
-
717-821327 PIN, DowelPIN, Dowel
-
88M0142710 DRAIN, CowlDRAIN, Cowl
