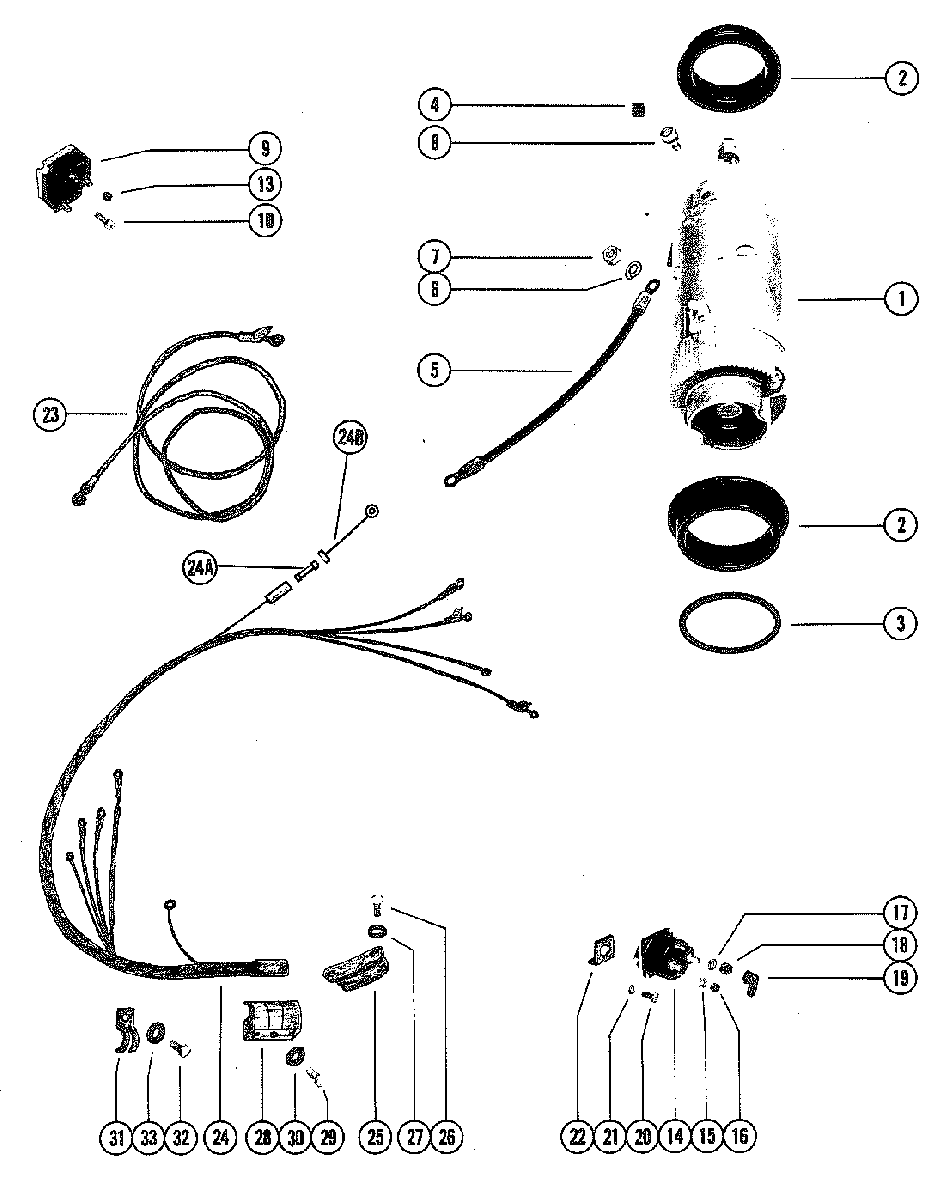

STARTER MOTOR AND WIRING HARNESS для Mariner - 80 5763341 THRU 6432900
-
№АртикулНазвание
-
150-893891T STARTER MOTORSTARTER MOTOR
-
223-8M0034918 COLLAR, RUBBER-STARTER MOTORCOLLAR, RUBBER-STARTER MOTOR
-
323-56774 SPACER, COLLAR TO BRACKETSPACER, COLLAR TO BRACKET
-
48M0043376 STOP, RUBBER-STARTER MOTORSTOP, RUBBER-STARTER MOTOR
-
584-93389A1 WIRE, MOTOR TO SOLENOID
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOWWIRE, MOTOR TO SOLENOID
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOW -
584-93389A8 WIRE, MOTOR TO SOLENOID
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UPWIRE, MOTOR TO SOLENOID
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UP -
613-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
711-64015 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
-
810-69035 SCREW, WIRING HARNESS TO STARTER MOTOR(5/8")SCREW, WIRING HARNESS TO STARTER MOTOR(5/8")
-
98M0058226 RECITIFERRECITIFER
-
1010-37656 SCREW, RECITIFER TO PLATE (5/8")SCREW, RECITIFER TO PLATE (5/8")
-
1311-45076 NUT, RECITIFER TERMINALNUT, RECITIFER TERMINAL
-
1489-853654A1 STARTER SOLENOID
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOWSTARTER SOLENOID
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOW -
1513-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOWLOCKWASHER, SOLENOID TERMINAL (#10)
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOW -
1611-68219 NUT, SOLENOID TERMINAL (#10)
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOWNUT, SOLENOID TERMINAL (#10)
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOW -
1713-26993 LOCKWASHER, SOLENOID TERMINAL (5/1616")
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOWLOCKWASHER, SOLENOID TERMINAL (5/1616")
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOW -
1811-68292 NUT, SOLENOID TERMINAL (5/16")
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOWNUT, SOLENOID TERMINAL (5/16")
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOW -
1489-96054T STARTER SOLENOID
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UPSTARTER SOLENOID
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UP -
1513-26995 LOCKWASHER, SOLENOID TERMINAL (#8)
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UPLOCKWASHER, SOLENOID TERMINAL (#8)
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UP -
1611-26419 NUT, SOLENOID TERMINAL (#8-32)
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UPNUT, SOLENOID TERMINAL (#8-32)
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UP -
1713-26992 LOCKWASHER, SOLENOID TERMINAL (1/4")
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UPLOCKWASHER, SOLENOID TERMINAL (1/4")
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UP -
1811-94330 NUT, SOLENOID TERMINAL (1/4-20)
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UPNUT, SOLENOID TERMINAL (1/4-20)
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UP -
1946265 BOOT, TERMINAL-STARTER SOLENOIDBOOT, TERMINAL-STARTER SOLENOID
-
2010-38601 SCREW, SOLENOID TO BOTTOM COWL (5/8")SCREW, SOLENOID TO BOTTOM COWL (5/8")
-
2113-26992 WASHER, SOLENOID SCREWWASHER, SOLENOID SCREW
-
2290547 LOCATOR, STARTER SOLENOIDLOCATOR, STARTER SOLENOID
-
2384-88439A3 BATTERY CABLE (POSITIVE)BATTERY CABLE (POSITIVE)
-
2384-88439A4 BATTERY CABLE (POSITIVE)BATTERY CABLE (POSITIVE)
-
2384-88439A4 BATTERY CABLE (NEGATIVE)BATTERY CABLE (NEGATIVE)
-
2484-96233A2 WIRING HARNESS
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOWWIRING HARNESS
UNITED STATES 6076351 AND BELOW
CANADA 7188282 AND BELOW -
2484-96233A2 WIRING HARNESS
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UPWIRING HARNESS
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UP -
24A88-79091 FUSE
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UPFUSE
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UP -
24B84-95084A2 WIRE ASSEMBLY, FUSE
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UPWIRE ASSEMBLY, FUSE
UNITED STATES 6076352 AND UP
CANADA 7188283 AND UP -
2554-88608 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
2610-28636 SCREW, WIRING HARNESS CLAMPSCREW, WIRING HARNESS CLAMP
-
2713-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
2889047 BRACKET, WIRING HARNESSBRACKET, WIRING HARNESS
-
2910-32228 SCREW, WIRING HARNESS BRACKETSCREW, WIRING HARNESS BRACKET
-
3012-38833 WASHER, BRACKET SCREWWASHER, BRACKET SCREW
-
3188751 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
3210-28636 SCREW, WIRING HARNESS CLAMPSCREW, WIRING HARNESS CLAMP
-
3312-20533 WASHER, CLAMP SCREWWASHER, CLAMP SCREW
