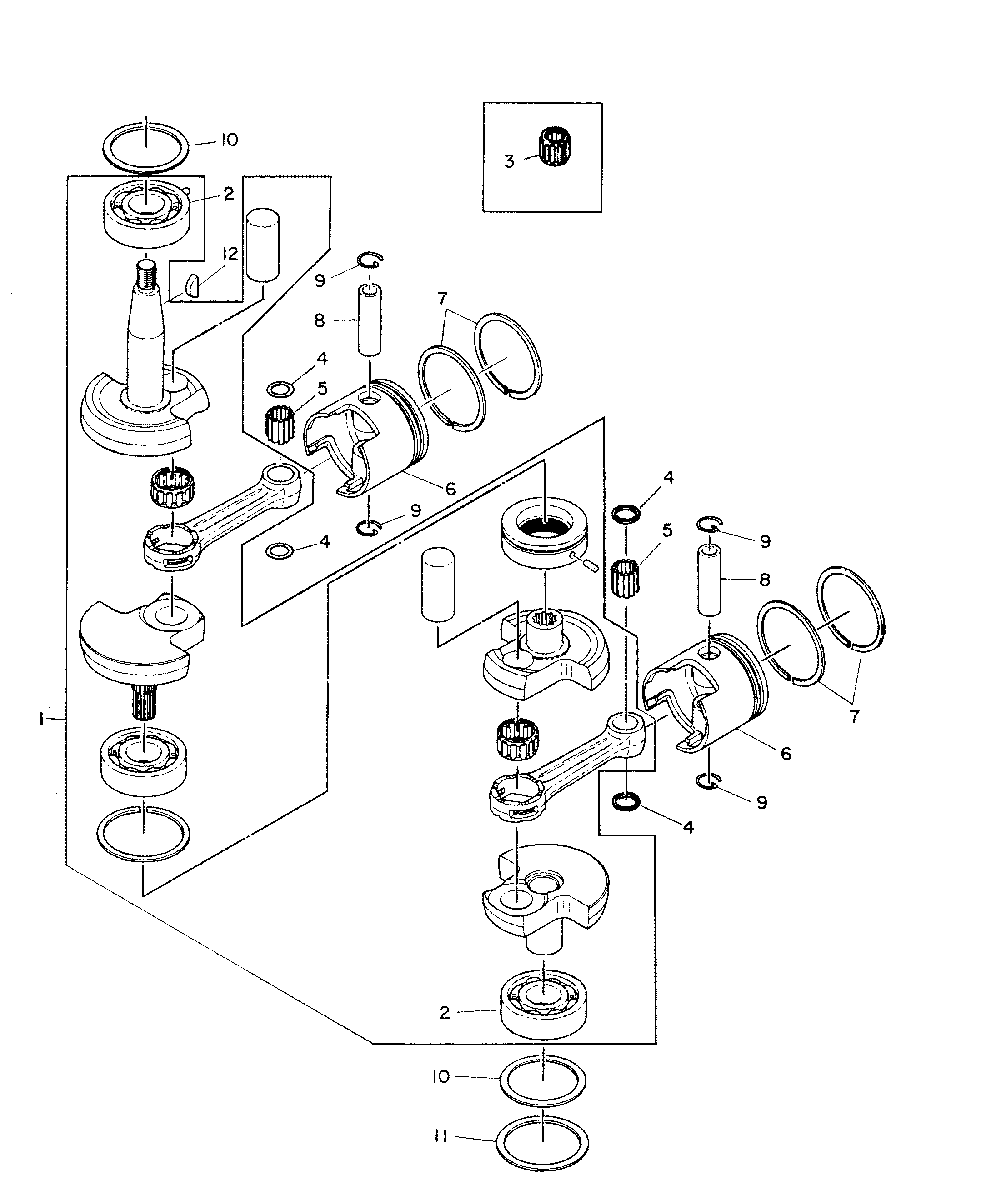

CRANKSHAFT AND PISTON для Mariner - 8A 655-000300 AND BELOW
-
№АртикулНазвание
-
1463-6776M CRANK SHAFT ASS'Y...CRANK SHAFT ASS'Y...
-
230-18859T BEARING...BEARING...
-
331-82835M BEARING, CONNECTING ROD-SMALL END... .
SERIAL 00000000-00020160BEARING, CONNECTING ROD-SMALL END... .
SERIAL 00000000-00020160 -
412-81816M WASHER...
SERIAL 00020161-09999999WASHER...
SERIAL 00020161-09999999 -
529-82350M BEARING, NEEDLE... .
SERIAL 00020161-09999999BEARING, NEEDLE... .
SERIAL 00020161-09999999 -
6761-6936M PISTON (50.96MM) (STD)...PISTON (50.96MM) (STD)...
-
6761-6743M PISTON (50.97 MM) (STD)...PISTON (50.97 MM) (STD)...
-
6761-6743M PISTON (50.98MM) (STD)...PISTON (50.98MM) (STD)...
-
6761-6746M PISTON (1ST O.S. 51.25MM)...PISTON (1ST O.S. 51.25MM)...
-
6761-6747M PISTON (2ND O.S. 51.50MM)...PISTON (2ND O.S. 51.50MM)...
-
739-80422T PISTON RING SET (STD)...PISTON RING SET (STD)...
-
739-80423T PISTON RING SET (1ST O.S. 51.25MM)...PISTON RING SET (1ST O.S. 51.25MM)...
-
739-80424M PISTON RING SET (2ND O.S. 51.50MM)PISTON RING SET (2ND O.S. 51.50MM)
-
841-80005M PIN, PISTON...PIN, PISTON...
-
953-82342M CLIP, PISTON PIN...CLIP, PISTON PIN...
-
1015-80419M SHIM, CRANKSHAFT (0.2MM)...SHIM, CRANKSHAFT (0.2MM)...
-
1015-80420M SHIM, CRANKSHAFT (0.3MM)...SHIM, CRANKSHAFT (0.3MM)...
-
1015-80421M SHIM, CRANKSHAFT (0.5MM)...SHIM, CRANKSHAFT (0.5MM)...
-
1123-81841M SPACER, LOWER BEARING...SPACER, LOWER BEARING...
-
1228-893761 KEY,CRANKSHAFT TO FLYWHEEL...KEY,CRANKSHAFT TO FLYWHEEL...
