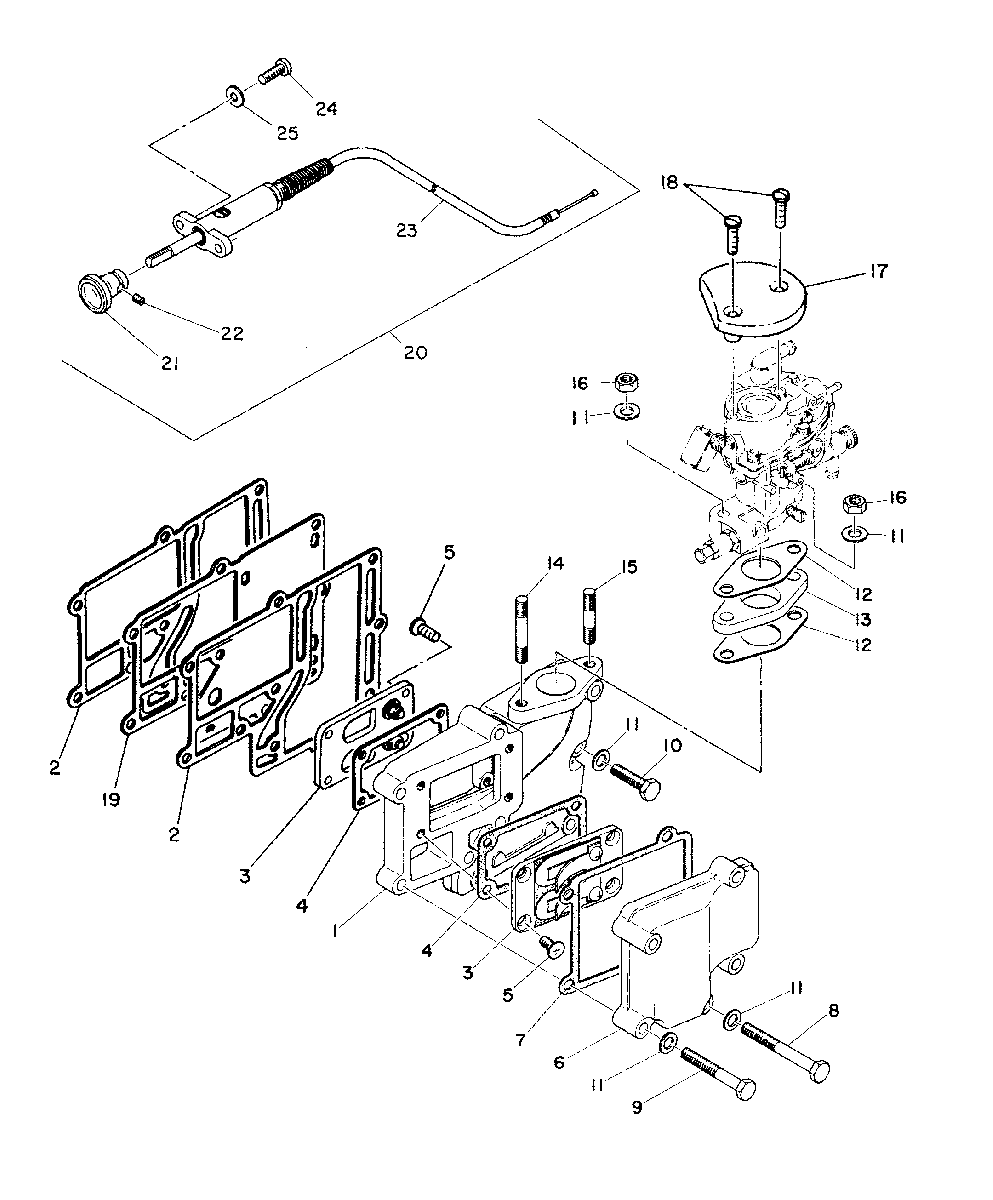

INTAKE MANIFOLD для Mariner - 8A 682-250101 THRU 250515 (E)
-
№АртикулНазвание
-
181033M MANIFOLD, INTAKEMANIFOLD, INTAKE
-
227-81034M GASKET, INTAKE MANIFOLD...GASKET, INTAKE MANIFOLD...
-
381032M REED VALVE...REED VALVE...
-
427-80425M GASKET, REED VAVLE...GASKET, REED VAVLE...
-
510-82969M SCREW, VALVE ATTACHING...SCREW, VALVE ATTACHING...
-
680426M COVER, INTAKE MANIFOLD...COVER, INTAKE MANIFOLD...
-
727-81035M GASKET, INTAKE MANIFOLD COVER...GASKET, INTAKE MANIFOLD COVER...
-
810-8527765 BOLT, MANIFOLD ATTACHING...BOLT, MANIFOLD ATTACHING...
-
910-84657M BOLT, MANIFOLD ATTACHING...BOLT, MANIFOLD ATTACHING...
-
1010-82405M BOLT, MANIFOLD ATTACHING...BOLT, MANIFOLD ATTACHING...
-
1112-82214M WASHER...WASHER...
-
1227-80427M GASKET, CARBURTOR TO MANIFOLD...
SERIAL 00000000-00021180GASKET, CARBURTOR TO MANIFOLD...
SERIAL 00000000-00021180 -
1227-80427M GASKET, CARBURETOR TO MANIFOLD...
SERIAL 00021181-09999999GASKET, CARBURETOR TO MANIFOLD...
SERIAL 00021181-09999999 -
1380428M SPACER, CARBURETOR TO MANIFOLD... .
SERIAL 00000000-00021180SPACER, CARBURETOR TO MANIFOLD... .
SERIAL 00000000-00021180 -
1416-81732M STUD, CARBURETOR ATTACHING...STUD, CARBURETOR ATTACHING...
-
1516-81731M STUD, CARBURETOR ATTACHING... .
SERIAL 00000000-00021180STUD, CARBURETOR ATTACHING... .
SERIAL 00000000-00021180 -
1516-811028M ..
SERIAL 00021181-09999999..
SERIAL 00021181-09999999 -
1611-82390M NUT, CARBURETOR ATTACHING...NUT, CARBURETOR ATTACHING...
-
1781036M COVER, AIR INTAKE...COVER, AIR INTAKE...
-
1810-82528M SCRE, COVER ATTACHING...SCRE, COVER ATTACHING...
-
1981046M PLATE, MANIFOLD...PLATE, MANIFOLD...
-
2080483M CHOKE ASS'Y...CHOKE ASS'Y...
-
2180624M KNOB, CHOKE...KNOB, CHOKE...
-
2210-80485M SCRWE...SCRWE...
-
2380482M CABLE, CHOKE...CABLE, CHOKE...
-
2410-83356M SCREW, PANHEAD...SCREW, PANHEAD...
-
2512-82211M WASHER, PLATE...WASHER, PLATE...
