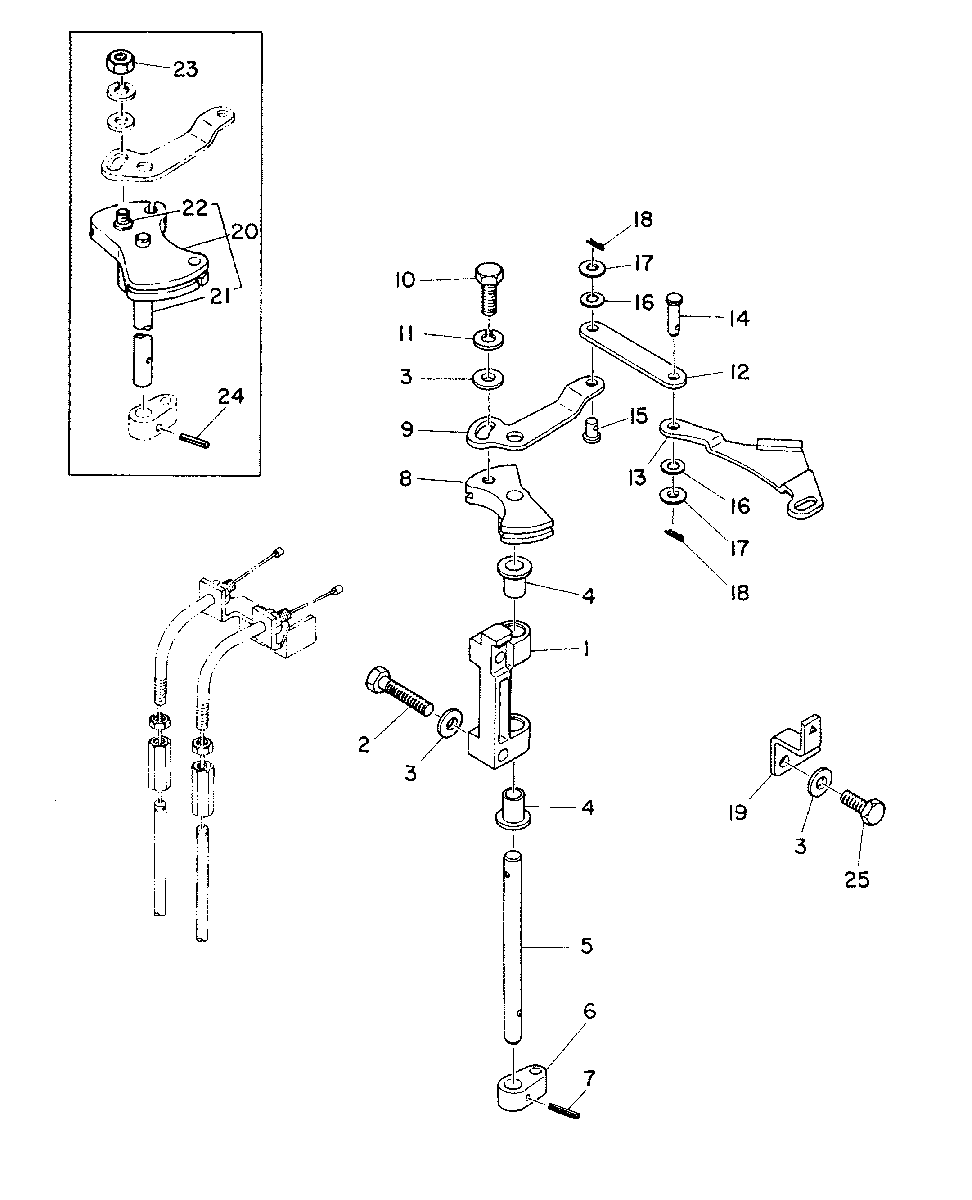

THROTTLE LINKAGE для Mariner - 8A 682-300826 THRU 308440 (ML)
-
№АртикулНазвание
-
181051M BRACKET, SHAFT...BRACKET, SHAFT...
-
210-83285M BOLT, BRACKET ATTACHING...BOLT, BRACKET ATTACHING...
-
312-82214M WASHER...WASHER...
-
423-81945M BUSHING, SHAFT...BUSHING, SHAFT...
-
580499M SHAFT, THROTTLE...SHAFT, THROTTLE...
-
681091M CAM, THROTTLE...CAM, THROTTLE...
-
717-82148M PIN, ROLL-CAM...
SERIAL 00000000-00026575PIN, ROLL-CAM...
SERIAL 00000000-00026575 -
883070M PULLEY, THROTTLE CABLE... .
SERIAL 00000000-00026575PULLEY, THROTTLE CABLE... .
SERIAL 00000000-00026575 -
981049M LEVER, MAGNETO CONTROL...LEVER, MAGNETO CONTROL...
-
1010-826957M .. .
SERIAL 00000000-00026575.. .
SERIAL 00000000-00026575 -
1113-82212M LOCKWASHER, LEVER BOLT...LOCKWASHER, LEVER BOLT...
-
1280489M LINK, MAGNETO CONTROL...LINK, MAGNETO CONTROL...
-
1380484M CAM, MAGNETO CONTROL...CAM, MAGNETO CONTROL...
-
1417-80500M PIN, LINK...PIN, LINK...
-
1517-80501M PIN, LINK...PIN, LINK...
-
1613-81865M LOCKWASHER, LINK PIN...LOCKWASHER, LINK PIN...
-
1712-82209M WASHER, LINK PIN...WASHER, LINK PIN...
-
1818-82051M PIN,RETAINING...PIN,RETAINING...
-
1980487M INDICATOR, MAGNETO TIMING...INDICATOR, MAGNETO TIMING...
-
2083070M PULLEY... .
SERIAL 00026576-09999999PULLEY... .
SERIAL 00026576-09999999 -
2183070M SHAFT, LINK CONNECTING...
SERIAL 00026576-09999999SHAFT, LINK CONNECTING...
SERIAL 00026576-09999999 -
2210-82872M BOSS, LEVER... .
SERIAL 00026576-09999999BOSS, LEVER... .
SERIAL 00026576-09999999 -
2311-82389M . .
SERIAL 00026576-09999999. .
SERIAL 00026576-09999999 -
2417-82148M PIN, SPRING... .
SERIAL 00026576-09999999PIN, SPRING... .
SERIAL 00026576-09999999 -
2510-826957M ....
